System - Engine Mechanical & Other

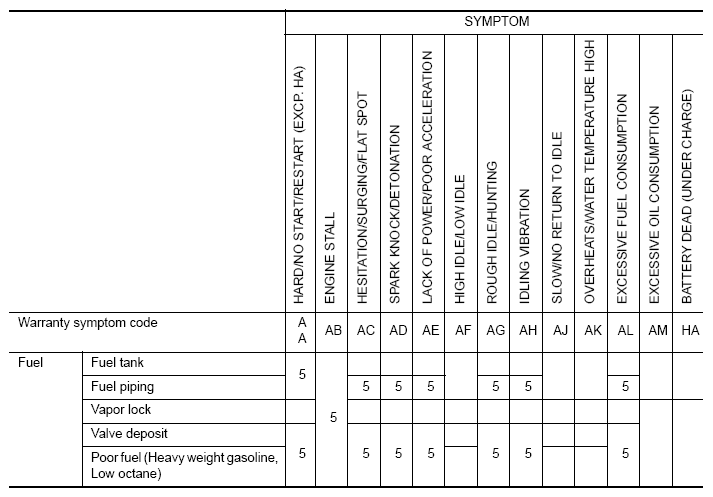

Fig 1: Engine Control System Symptoms Chart (Engine Mechanical & Other; 1 Of 3)
G09458479Courtesy of NISSAN NORTH AMERICA, INC.

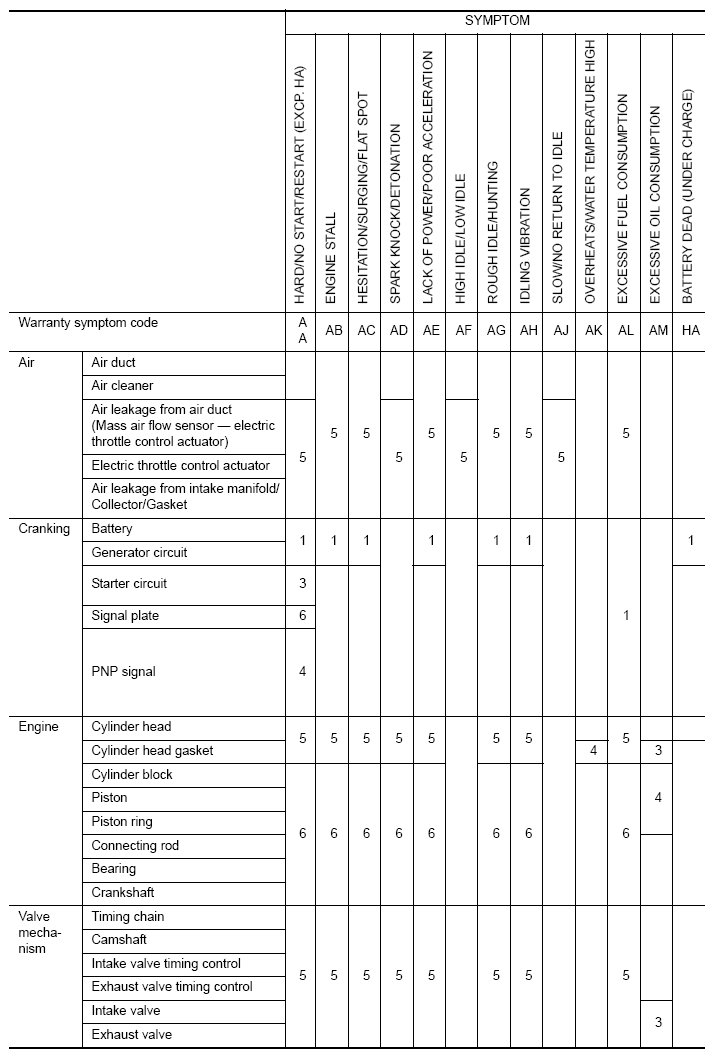

Fig 2: Engine Control System Symptoms Chart (Engine Mechanical & Other; 2 Of 3)
G09458480Courtesy of NISSAN NORTH AMERICA, INC.

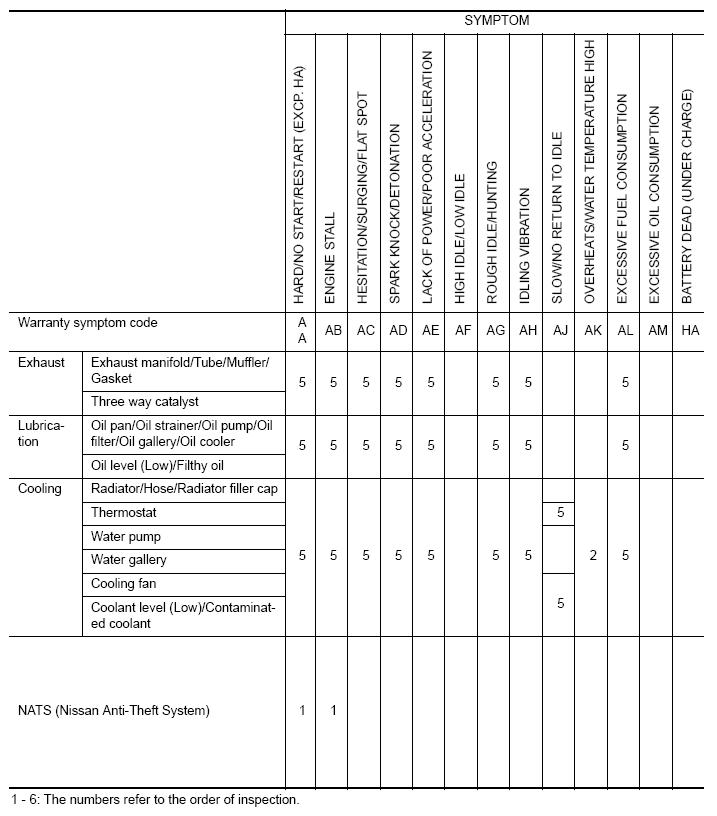

Fig 3: Engine Control System Symptoms Chart (Engine Mechanical & Other; 3 Of 3)
G09458481Courtesy of NISSAN NORTH AMERICA, INC.
