Removal and Installation: Removal

  1. Remove the glove box cover assembly. Refer to "EXPLODED VIEW ".
  2. Disconnect AWD control unit harness connector.
  3. Remove AWD control unit (1) mounting bolts.
  4. Remove AWD control unit.

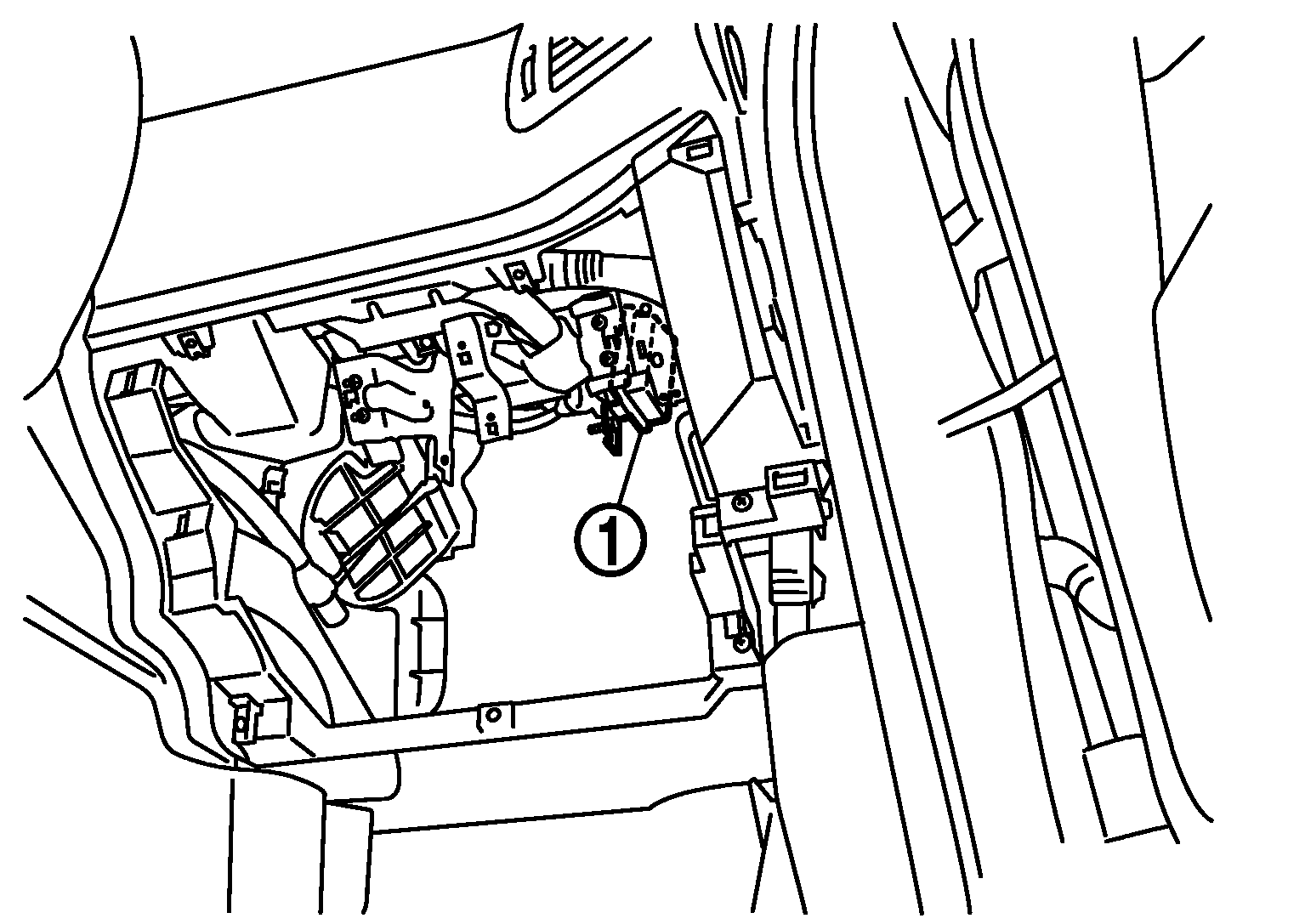

    Fig 1: Identifying AWD Control Unit
    G05370163Courtesy of NISSAN NORTH AMERICA, INC.
