Rogue Select AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case
>>
Ecu Diagnosis Information
>>
AWD Control Unit
>>
Connector End Views
Connector End Views

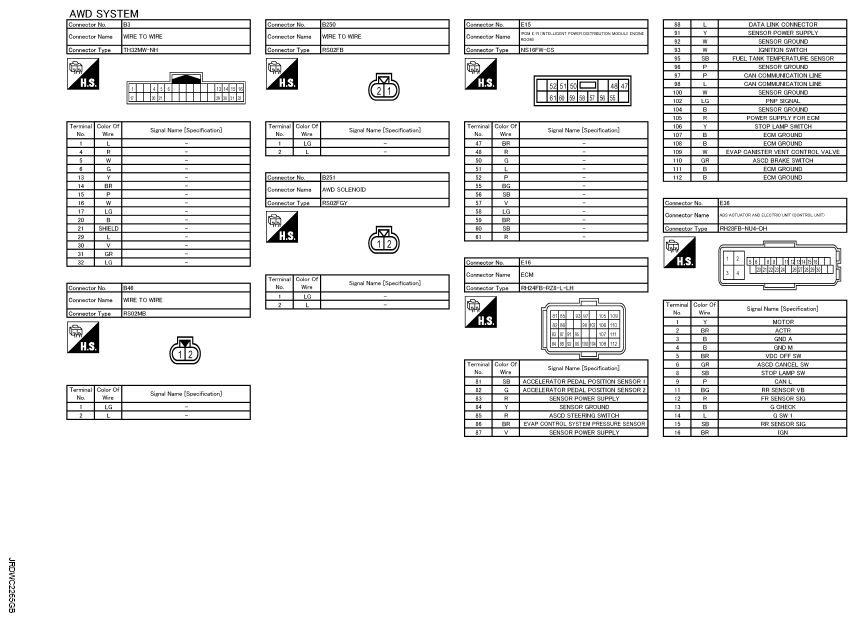

Fig 1: AWD System Connector End View (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

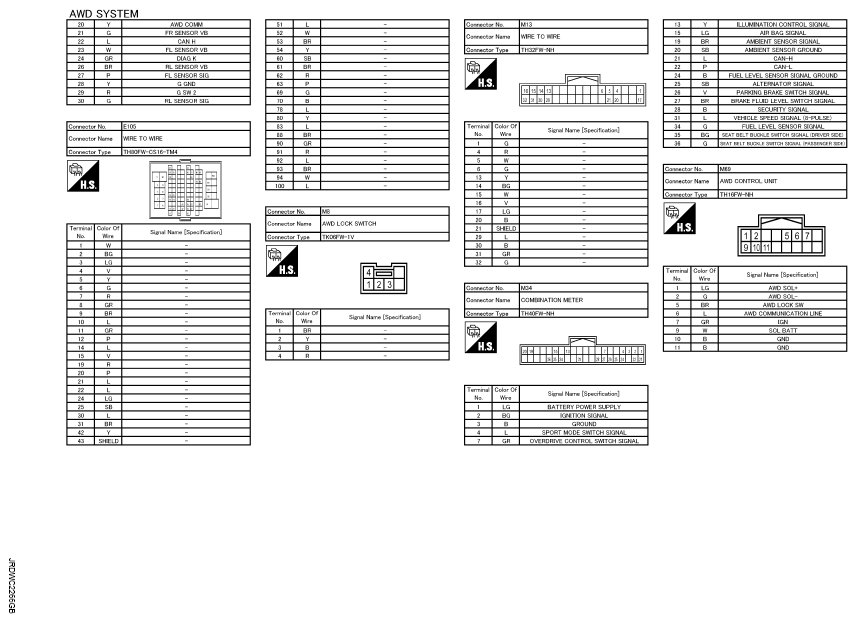

Fig 2: AWD System Connector End View (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 3: AWD System Connector End View (3 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
