Connector End Views

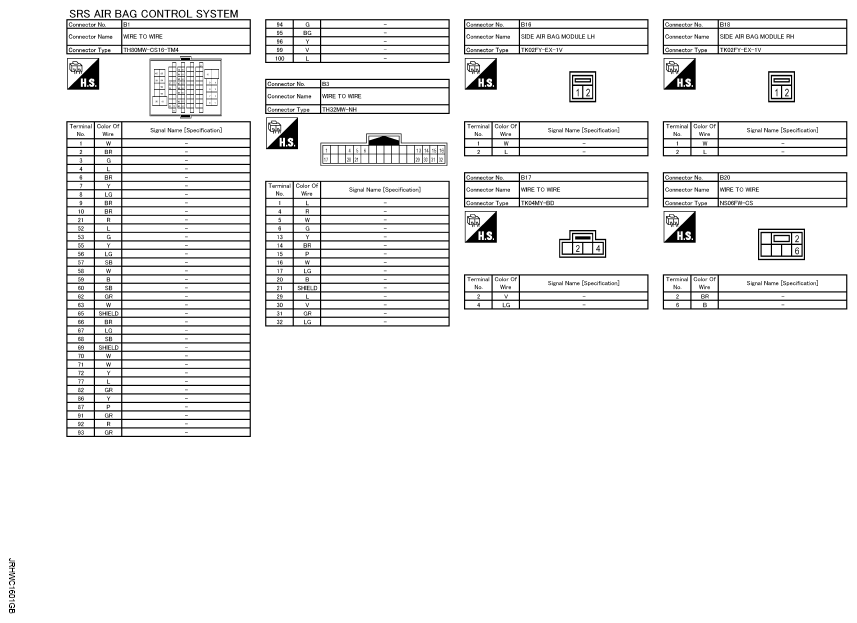

Fig 1: SRS Air Bag Control System Connector End View (1 Of 6)
G09612135Courtesy of NISSAN NORTH AMERICA, INC.

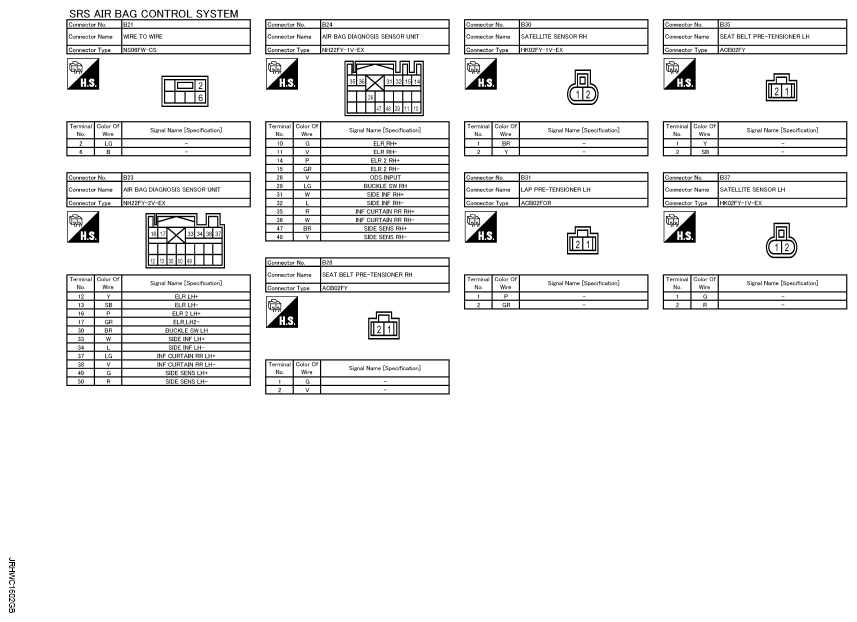

Fig 2: SRS Air Bag Control System Connector End View (2 Of 6)
G09612136Courtesy of NISSAN NORTH AMERICA, INC.

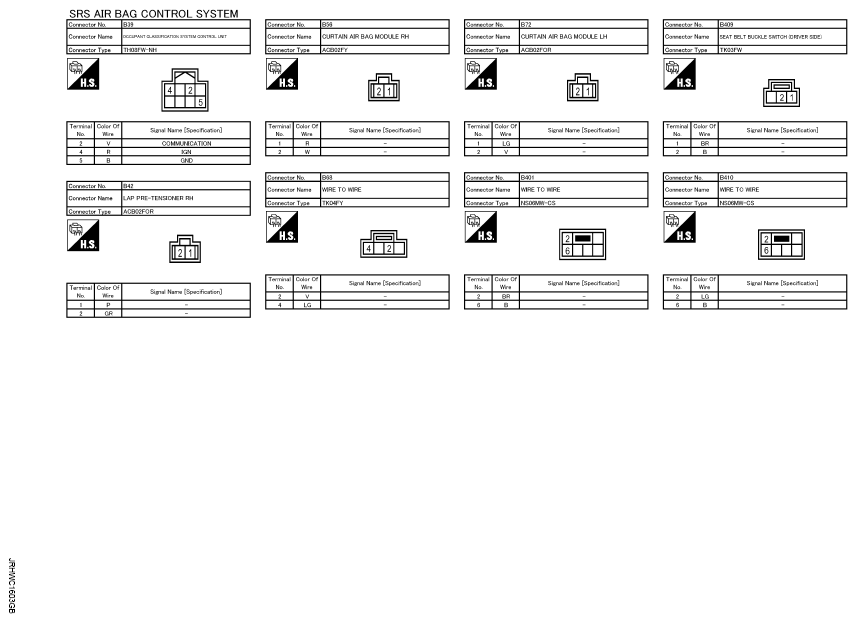

Fig 3: SRS Air Bag Control System Connector End View (3 Of 6)
G09612137Courtesy of NISSAN NORTH AMERICA, INC.

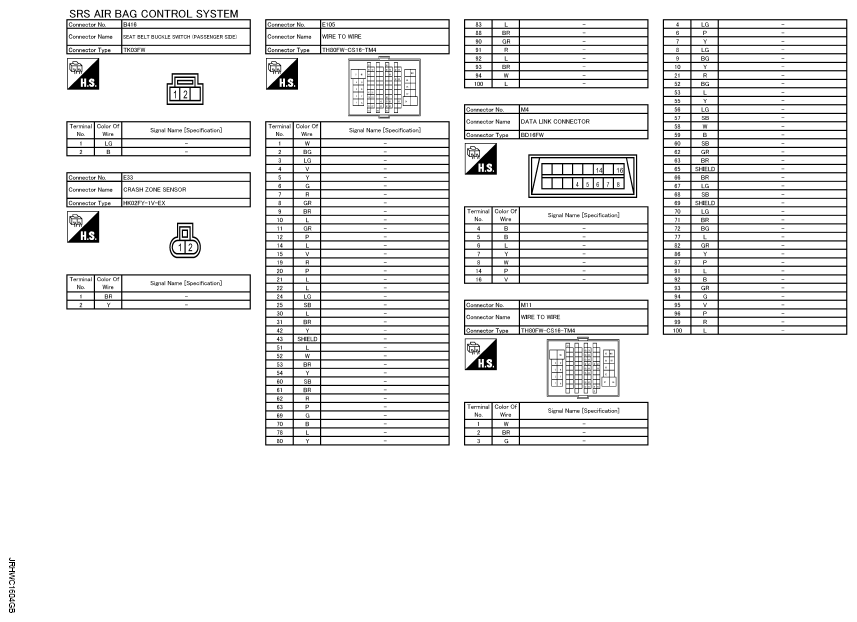

Fig 4: SRS Air Bag Control System Connector End View (4 Of 6)
G09612138Courtesy of NISSAN NORTH AMERICA, INC.

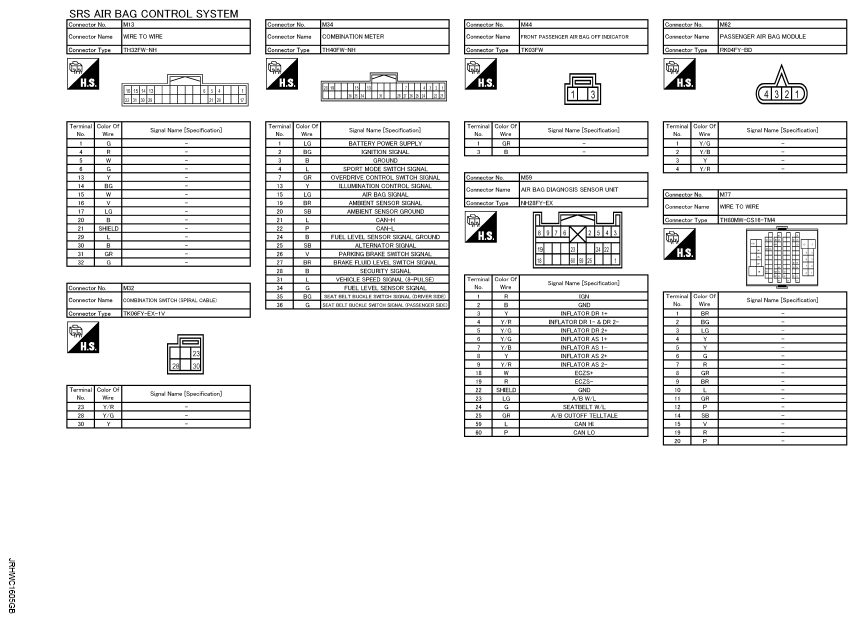

Fig 5: SRS Air Bag Control System Connector End View (5 Of 6)
G09612139Courtesy of NISSAN NORTH AMERICA, INC.
Fig 6: SRS Air Bag Control System Connector End View (6 Of 6)
G09612140Courtesy of NISSAN NORTH AMERICA, INC.
