Console Power Socket Connector End View (M204)

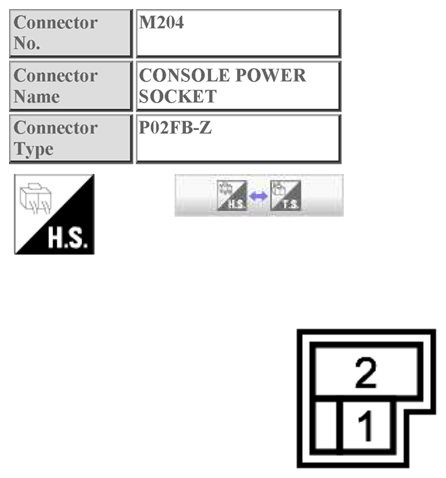

Fig 1: Console Power Socket Connector End View (M204)

G10412252

Courtesy of NISSAN NORTH AMERICA, INC.
