AWD Control Unit Connector End View (M69)

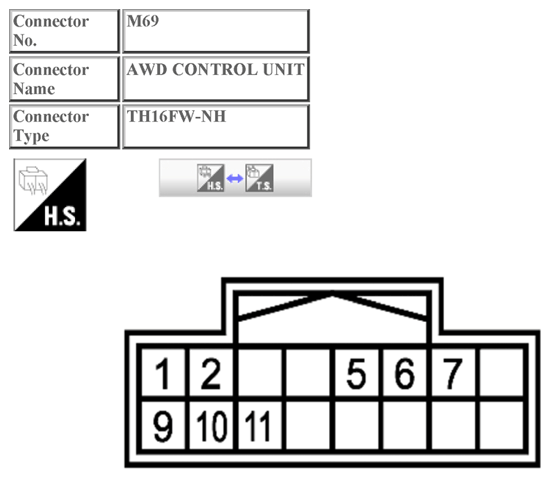

Fig 1: AWD Control Unit Connector End View (M69)

G10412232

Courtesy of NISSAN NORTH AMERICA, INC.
