System Application

WARNING: This page is about a different car, the 2014 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

BCM can perform the following functions.

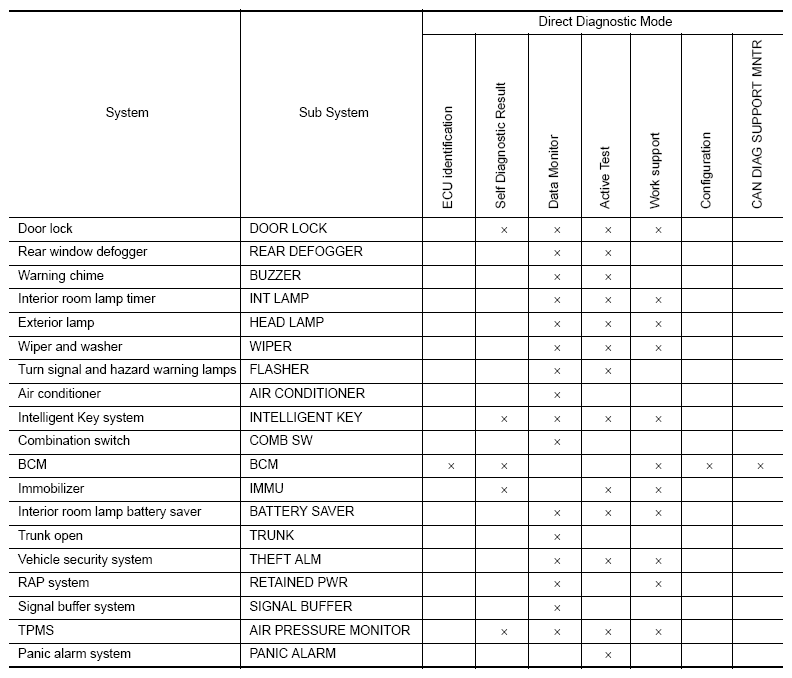

Fig 1: BCM System Application Chart
G09616679Courtesy of NISSAN NORTH AMERICA, INC.
