CAN COMMUNICATION SYSTEM: CAN Communication Signal Chart

WARNING: This page is about a different car, the 2014 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

Refer to "HOW TO USE CAN COMMUNICATION SIGNAL CHART " for how to use CAN communication signal chart.

NOTE:
  • Refer to "ABBREVIATION LIST " for the abbreviations of the connecting units.
  • The AV control unit uses CAN communication only for communicating with the diagnostic tool (not with other connected control units).

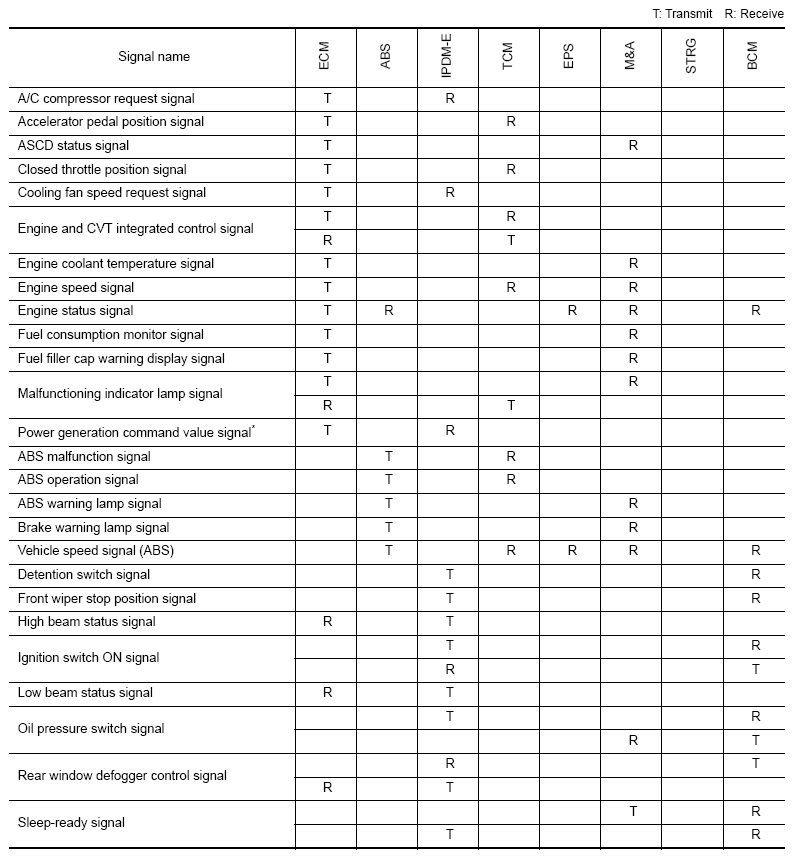

Fig 1: CAN Communication Signal Chart (1 Of 2)
G09616643Courtesy of NISSAN NORTH AMERICA, INC.

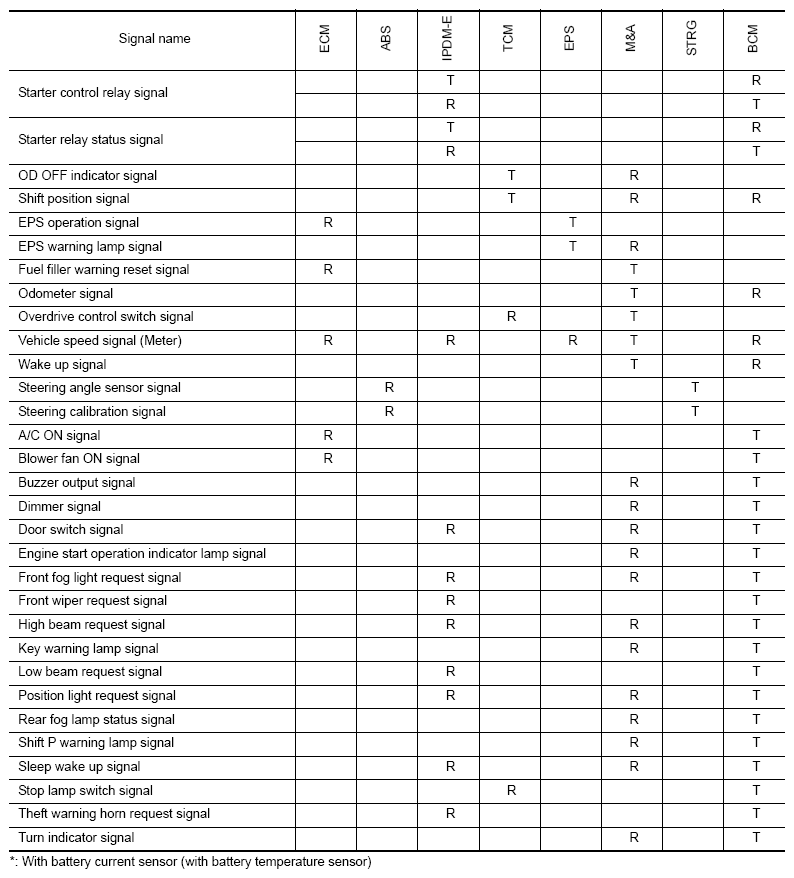

Fig 2: CAN Communication Signal Chart (2 Of 2)
G09616644Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: CAN data of the air bag diagnosis sensor unit is not used by usual service work, thus it is omitted.
