Connector End Views

WARNING: This page is about a different car, the 2014 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

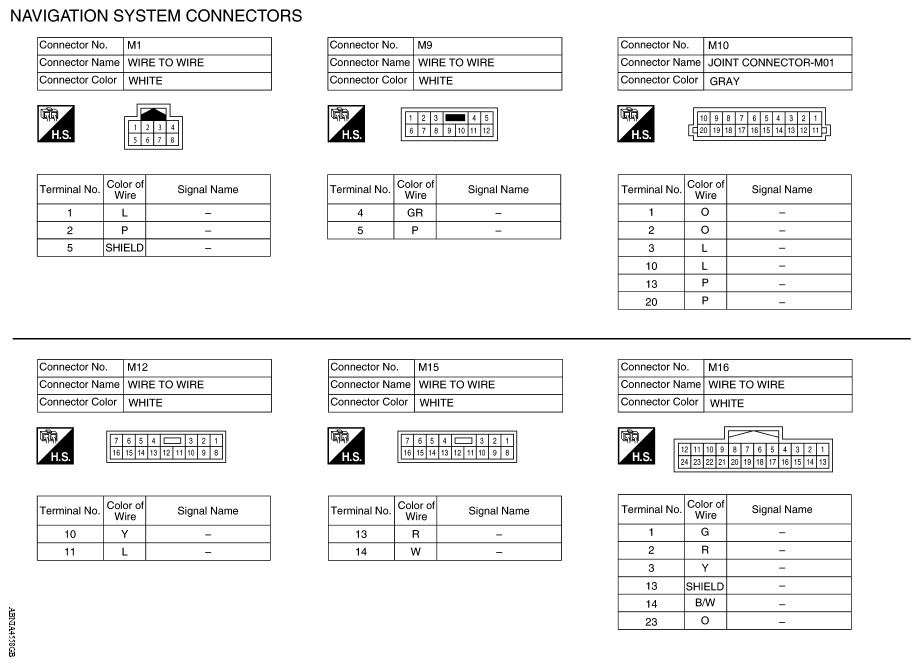

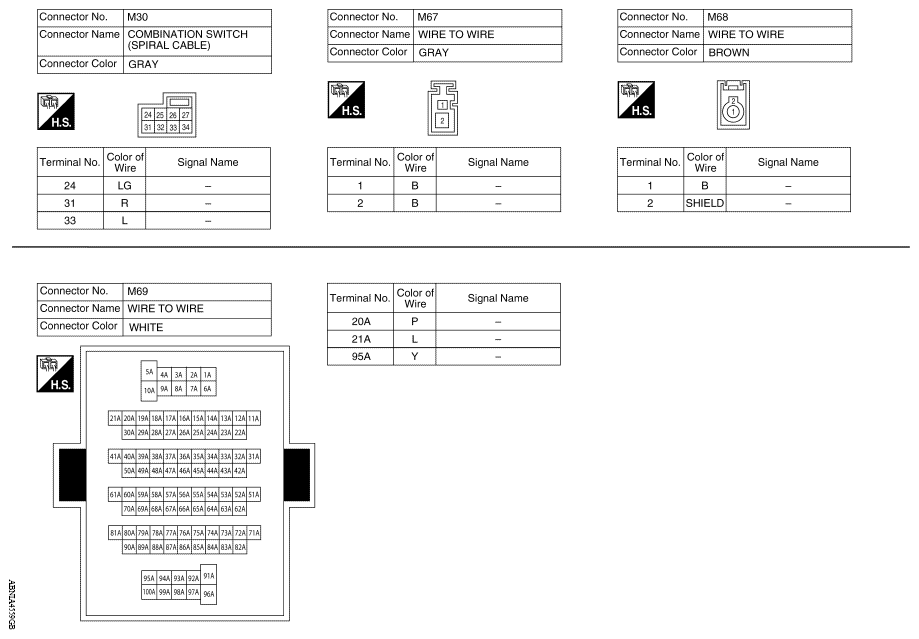

Fig 1: Navigation System Connector End Views (1 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

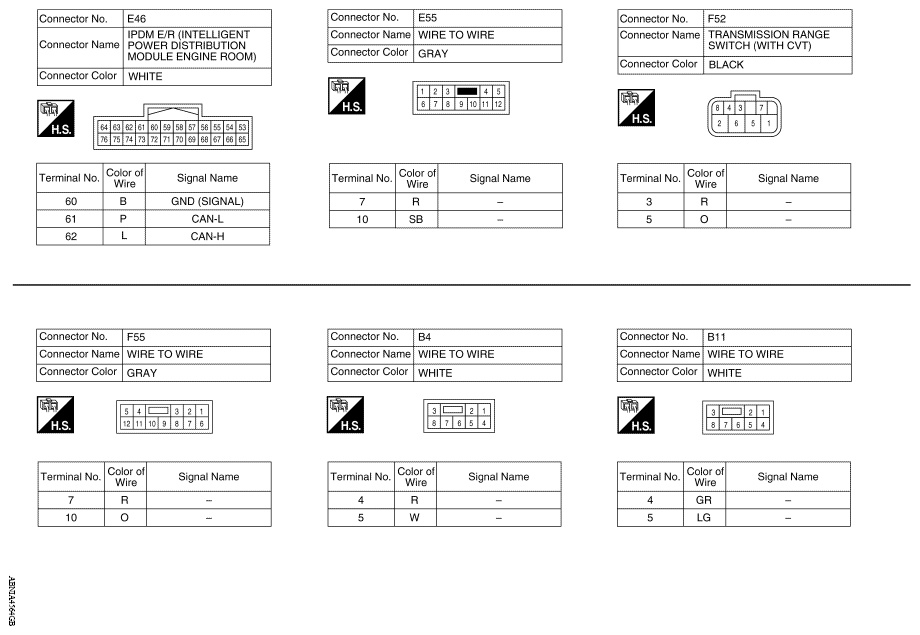

Fig 2: Navigation System Connector End Views (2 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Navigation System Connector End Views (3 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Navigation System Connector End Views (4 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Navigation System Connector End Views (5 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Navigation System Connector End Views (6 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Navigation System Connector End Views (7 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Navigation System Connector End Views (8 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Navigation System Connector End Views (9 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Navigation System Connector End Views (10 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.
