System Diagram

WARNING: This page is about a different car, the 2014 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

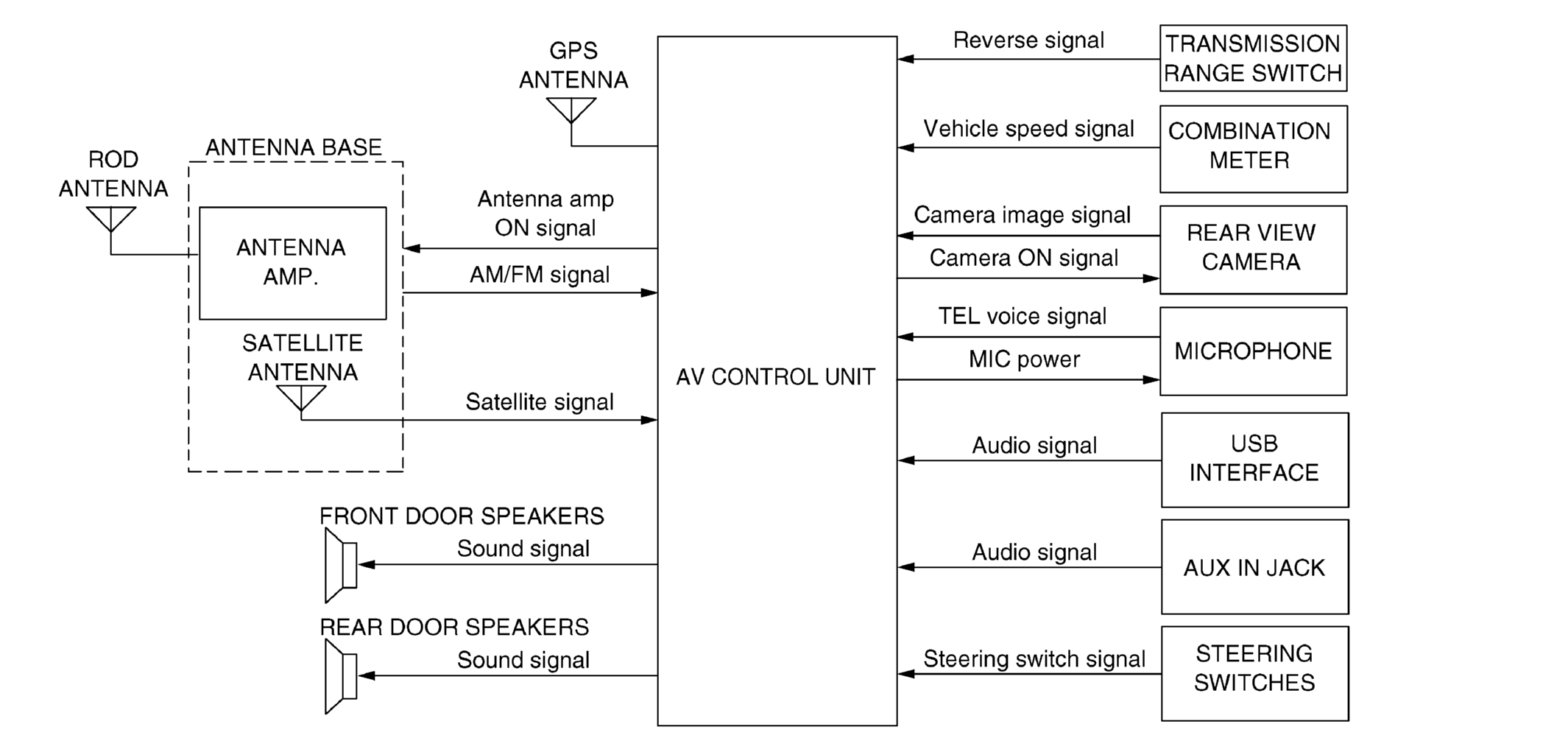

Fig 1: AV Control Unit - System Diagram
G09617002Courtesy of NISSAN NORTH AMERICA, INC.
