Connector End Views

WARNING: This page is about a different car, the 2014 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

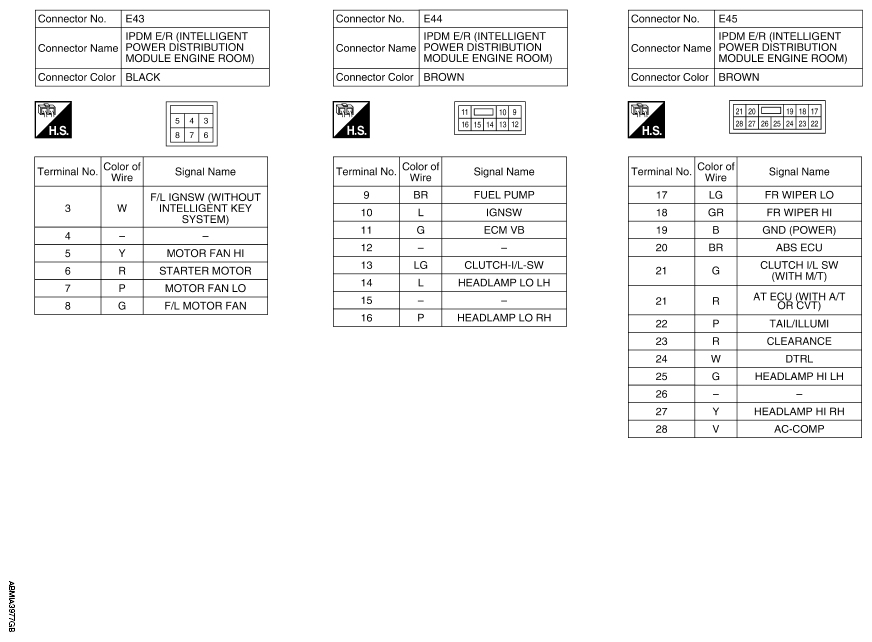

Fig 1: IPDM E/R Connectors End View (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

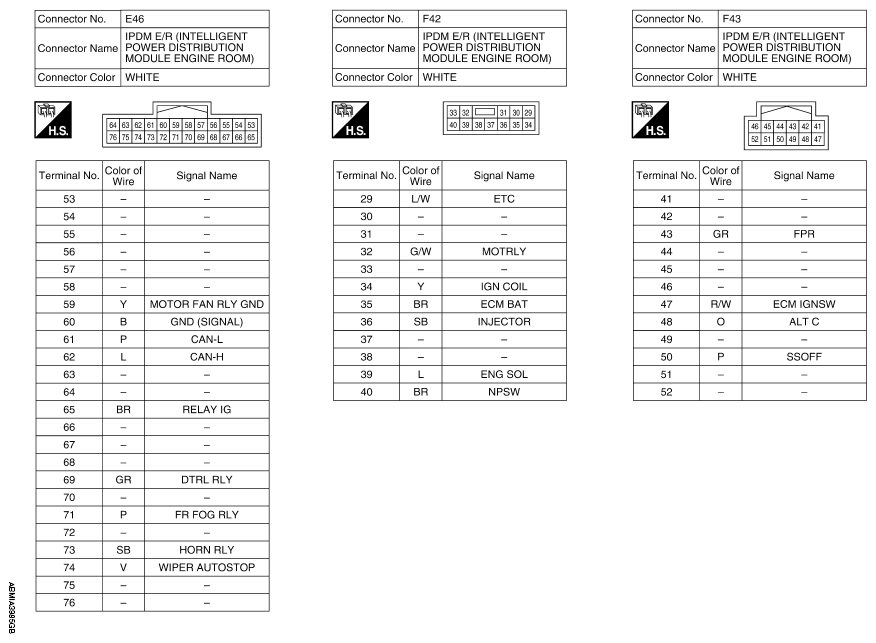

Fig 2: IPDM E/R Connectors End View (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

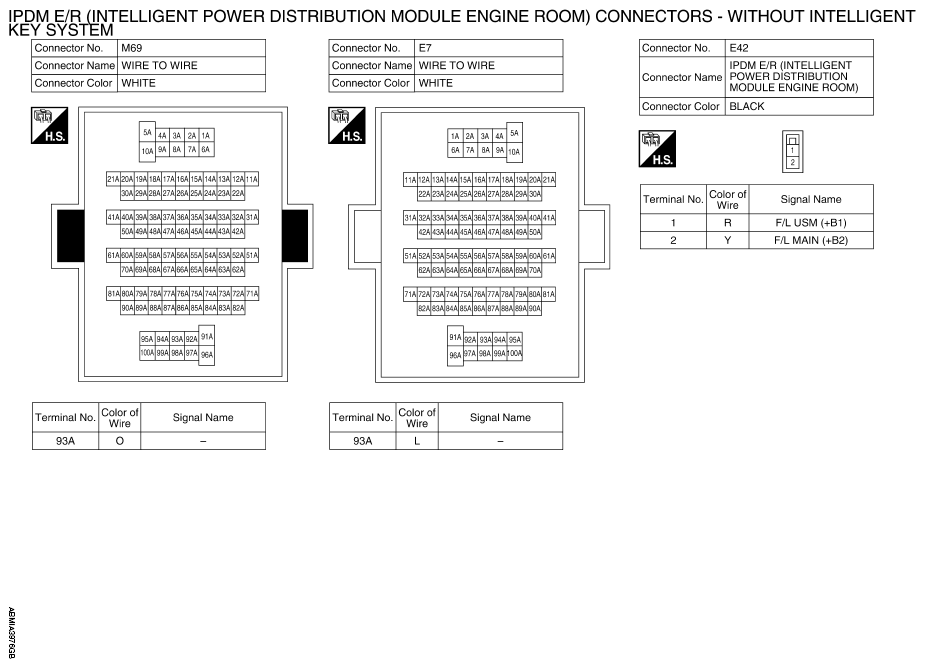

Fig 3: IPDM E/R Connectors End View (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
