Exploded View

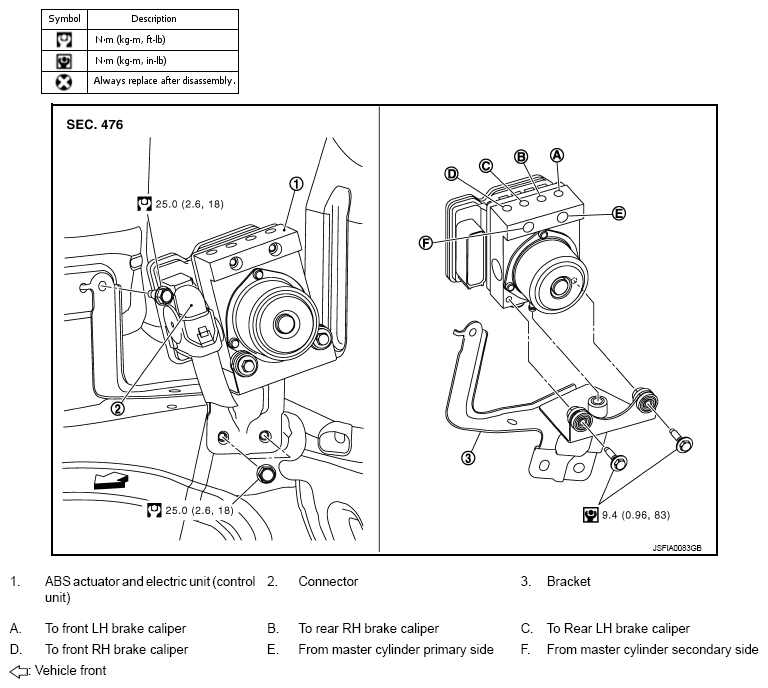

Fig 1: ABS Actuator And Electric Unit (Control Unit) With Torque Specifications

G09612020

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbol in the figure.
