Inspection and Adjustment: Notes

Inspection after Removal

Check the regulator assembly for the following items. Replace or grease it if a malfunction is detected.

• Wire wear
• Regulator deformation

  The shadow area in the figure show the application points of the multi-purpose grease.

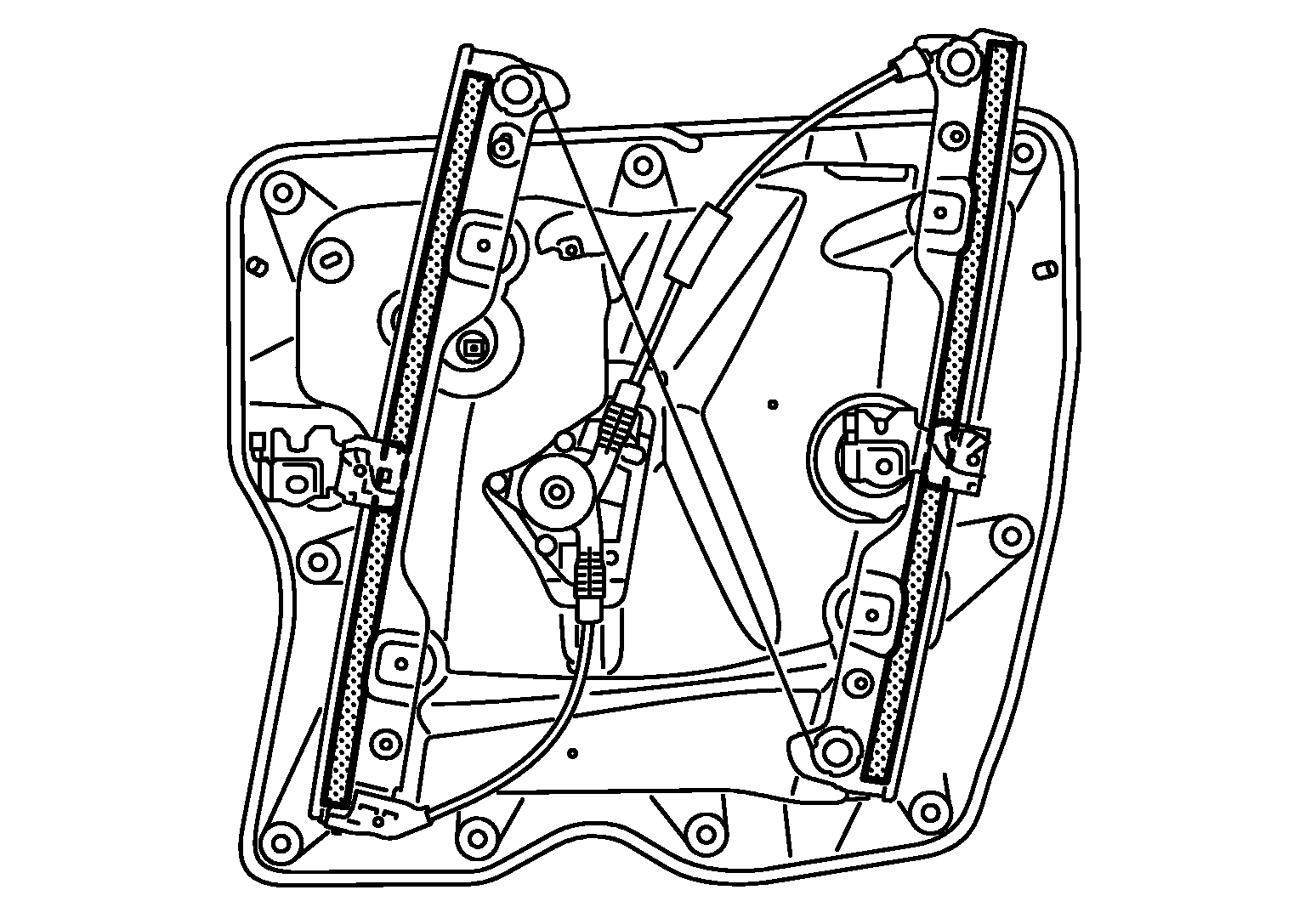

  Fig 1: Identifying Front Regulator Grease Applying Area

  Courtesy of NISSAN NORTH AMERICA, INC.
