Connector End Views

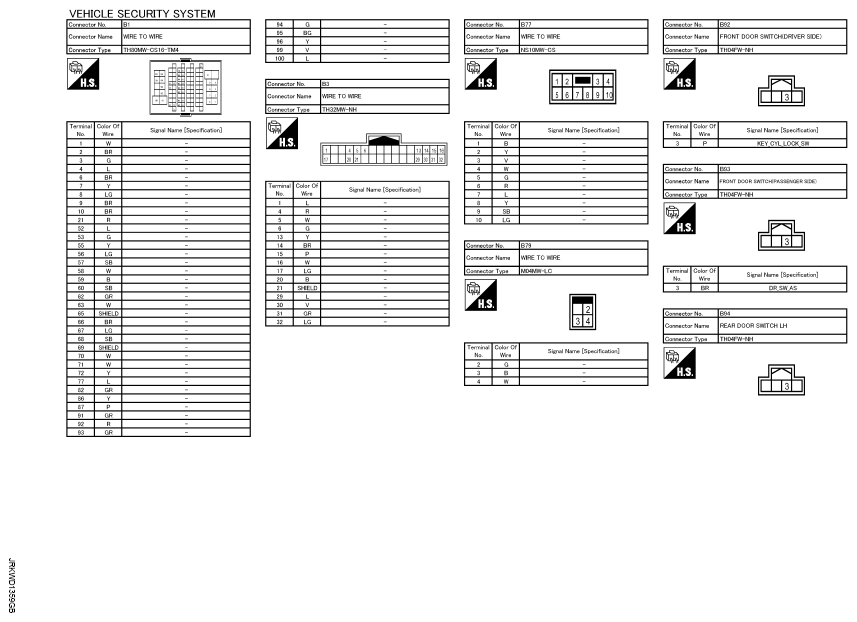

Fig 1: Vehicle Security System Connector End View (1 Of 7)
G09612671Courtesy of NISSAN NORTH AMERICA, INC.

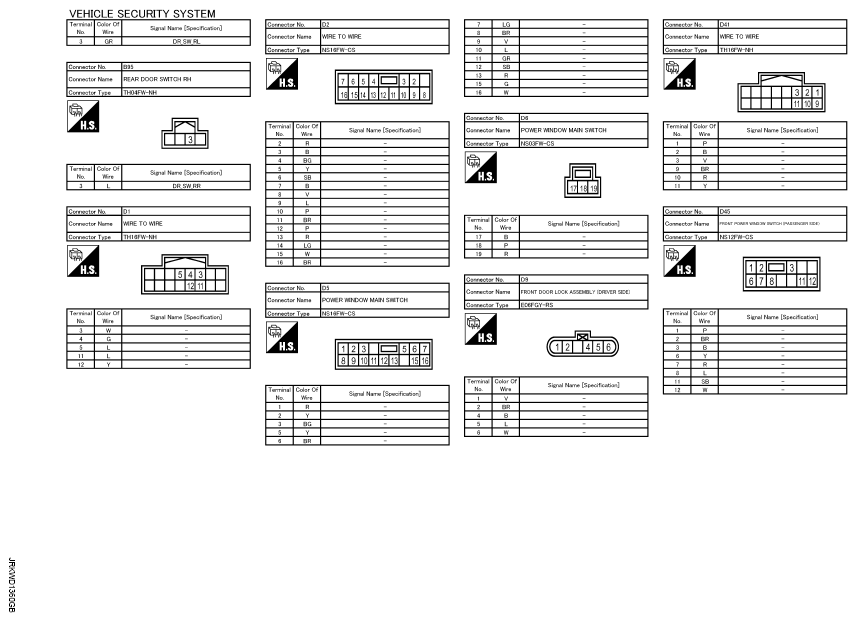

Fig 2: Vehicle Security System Connector End View (2 Of 7)
G09612672Courtesy of NISSAN NORTH AMERICA, INC.

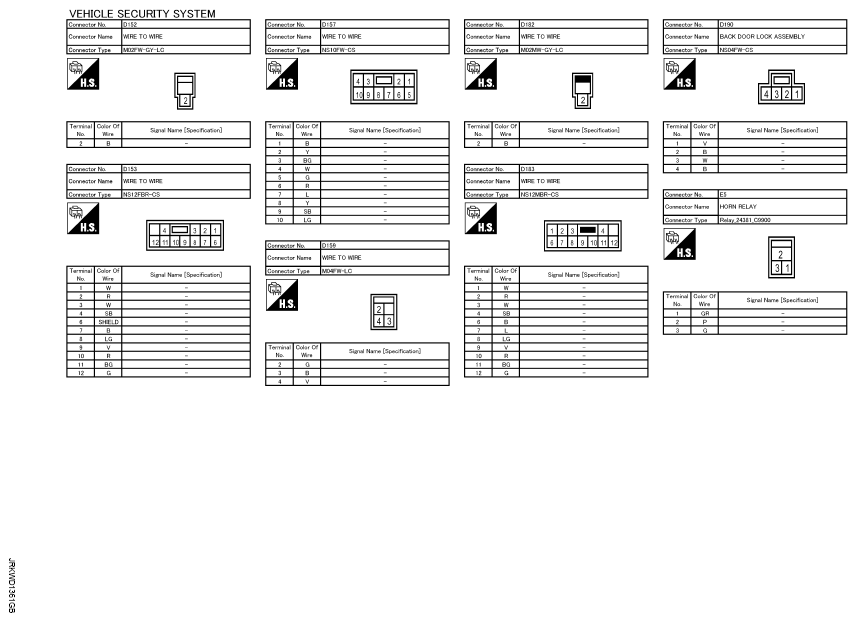

Fig 3: Vehicle Security System Connector End View (3 Of 7)
G09612673Courtesy of NISSAN NORTH AMERICA, INC.

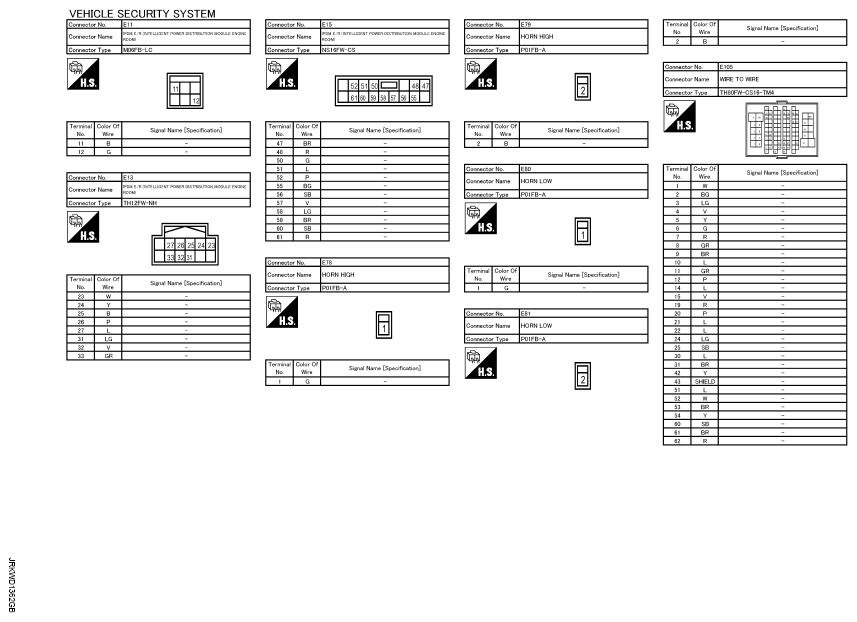

Fig 4: Vehicle Security System Connector End View (4 Of 7)
G09612674Courtesy of NISSAN NORTH AMERICA, INC.

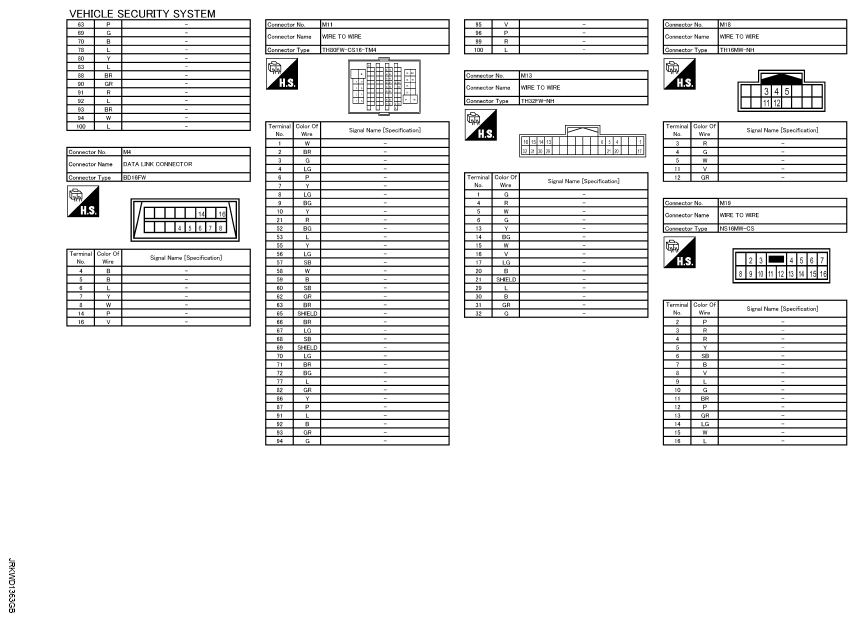

Fig 5: Vehicle Security System Connector End View (5 Of 7)
G09612675Courtesy of NISSAN NORTH AMERICA, INC.

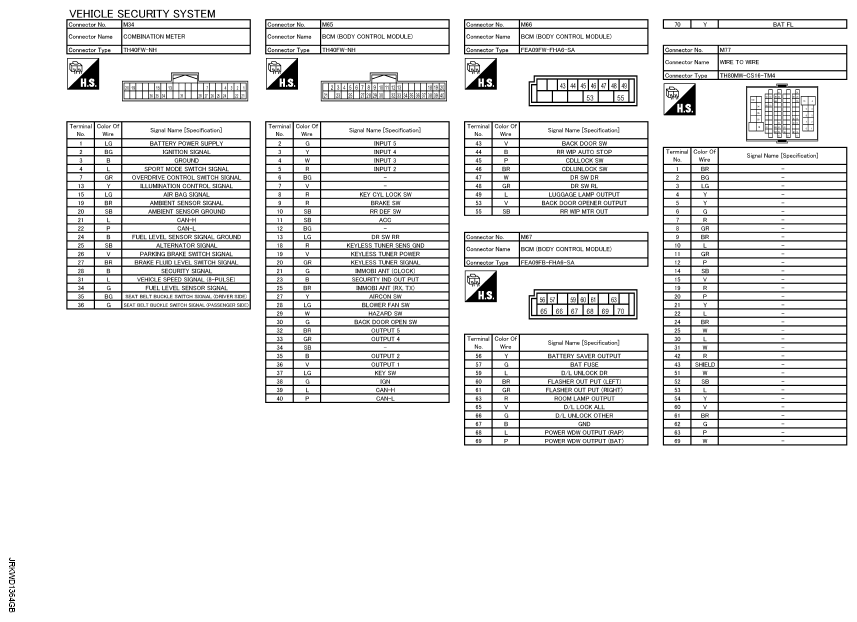

Fig 6: Vehicle Security System Connector End View (6 Of 7)
G09612676Courtesy of NISSAN NORTH AMERICA, INC.
Fig 7: Vehicle Security System Connector End View (7 Of 7)
G09612677Courtesy of NISSAN NORTH AMERICA, INC.
