System Diagram

WARNING: This page is about a different car, the 2016 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.

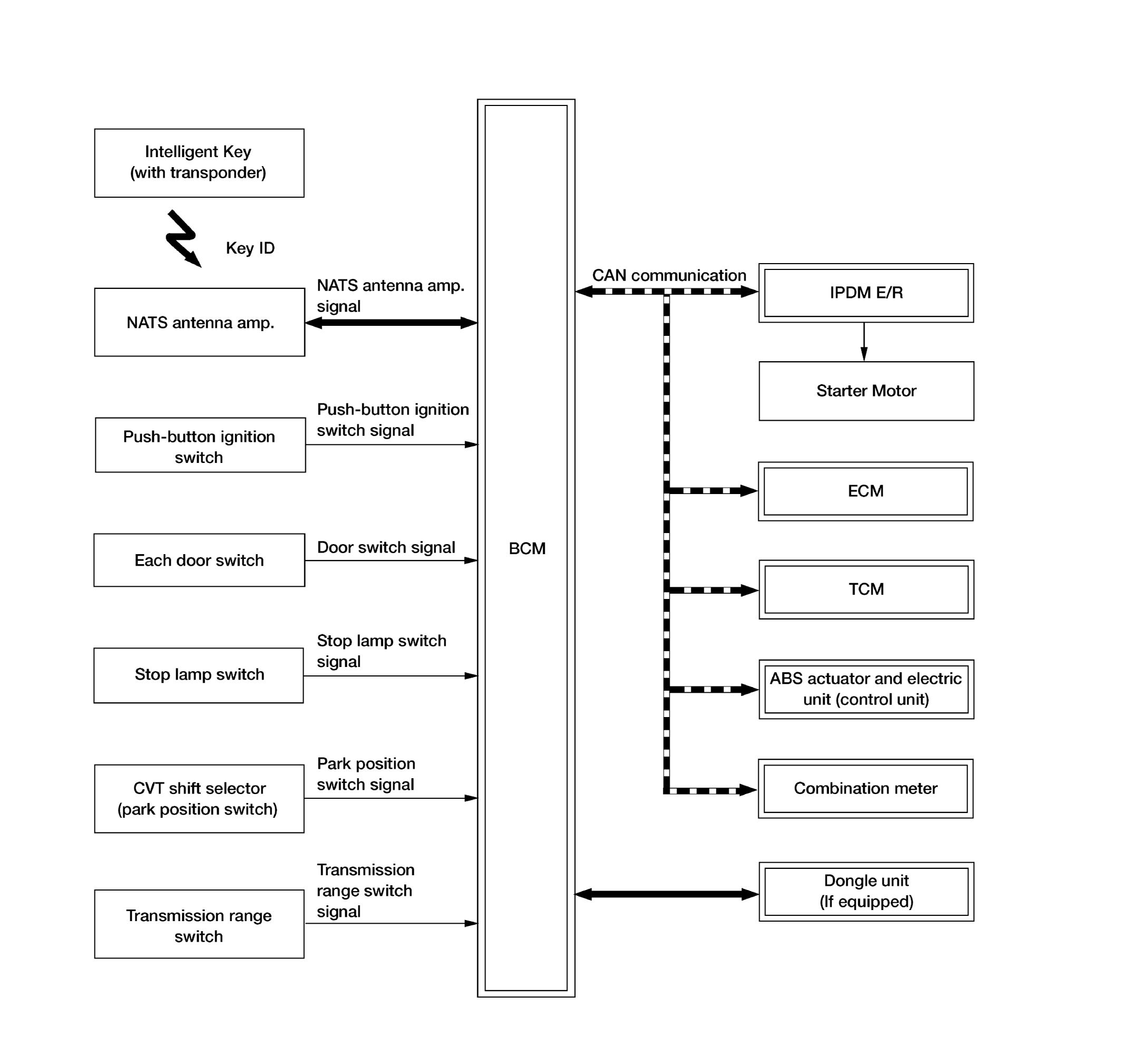

Fig 1: Nissan Vehicle Immobilizer System (Nats) System Diagram
GNSALKIA3672GB-672Courtesy of NISSAN NORTH AMERICA, INC.
