Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.

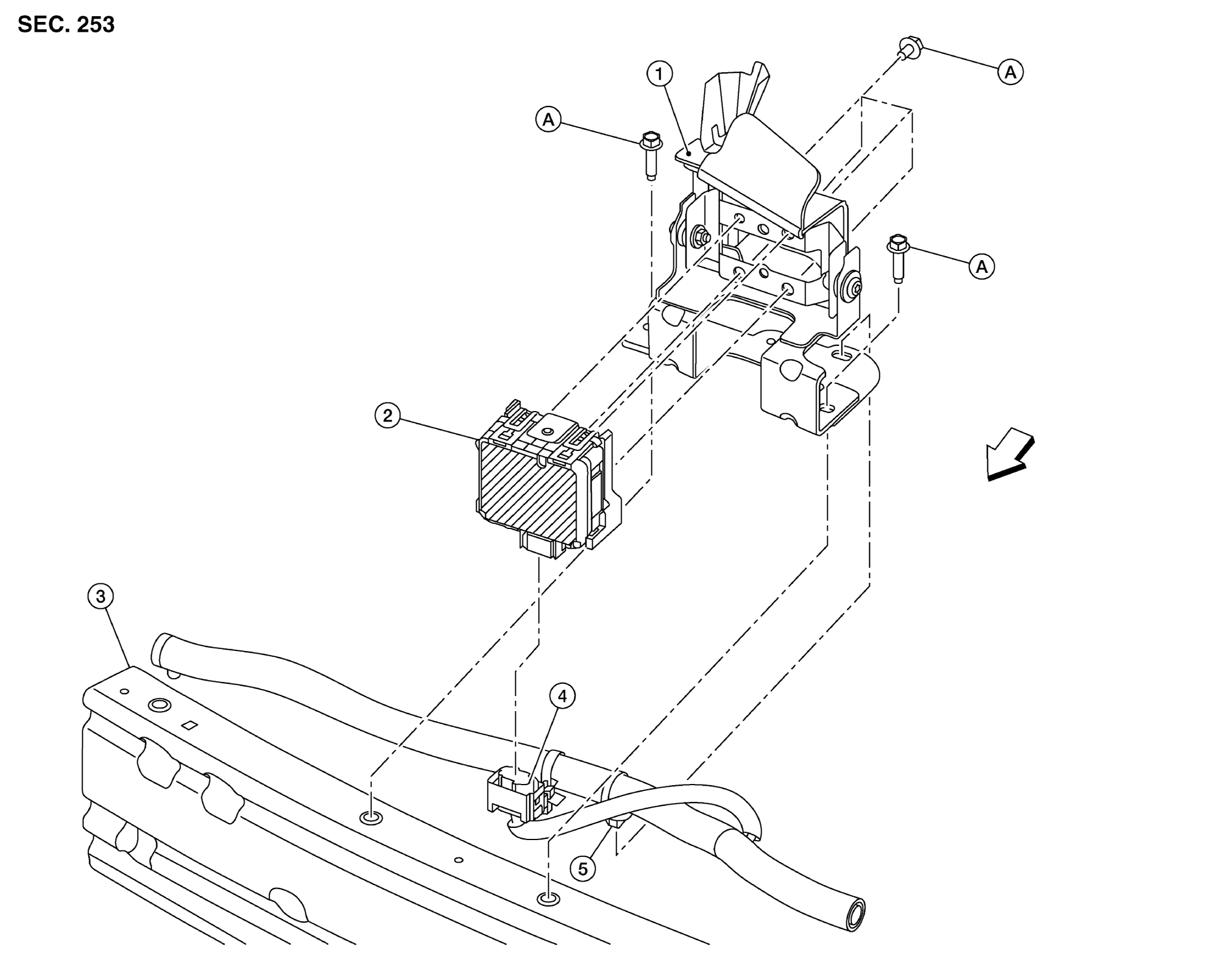

Fig 1: Exploded View Of Distance Sensor

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Bracket	2.	Distance sensor	3.	Front bumper reinforcement
4.	Distance sensor harness connector	5.	Clip	A.	Refer to INSTALLATION
	Front
