Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.

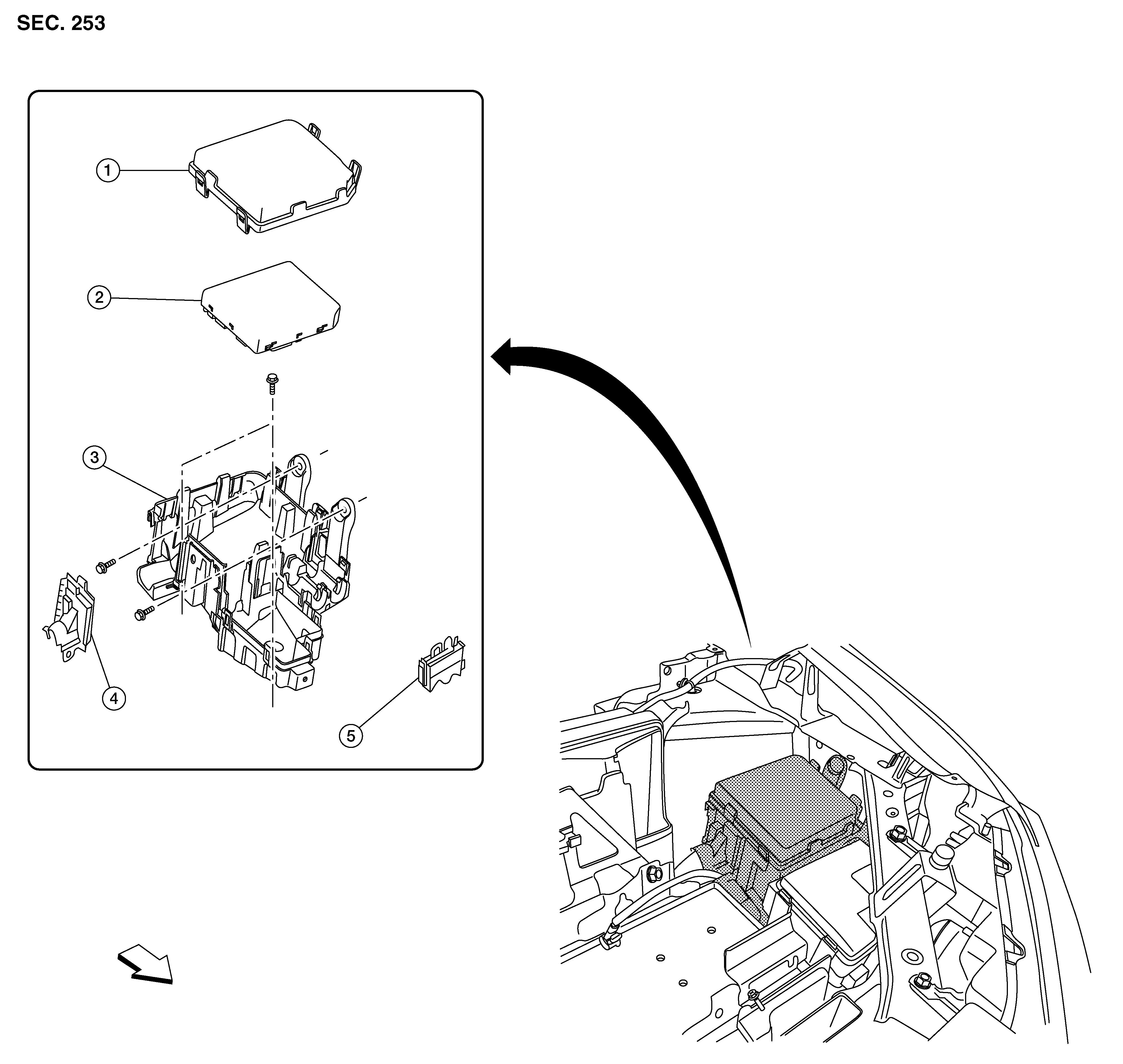

Fig 1: Exploded View Of IPDM E/R (Intelligent Power Distribution Module Engine Room)
GNSALMIA0705ZZ-705Courtesy of NISSAN NORTH AMERICA, INC.
1. IPDM E/R cover 2. IPDM E/R 3. IPDM E/R case
4. IPDM E/R harness cover A 5. IPDM E/R harness cover B ARROW Front
