IPDM E/R (Intelligent Power Distribution Module Engine Room)
>>
Connector End Views
Connector End Views

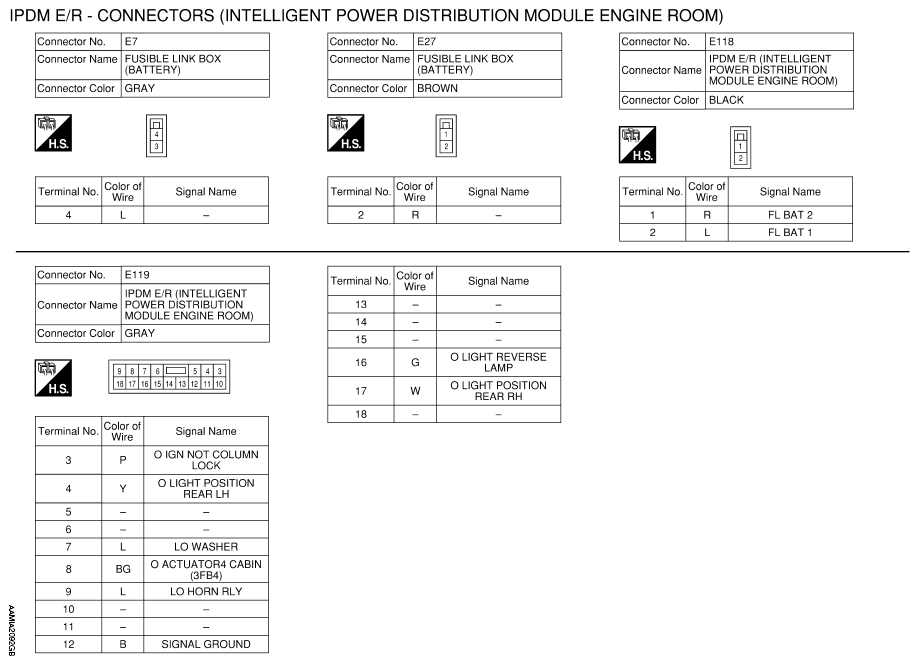

Fig 1: IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector Terminals (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

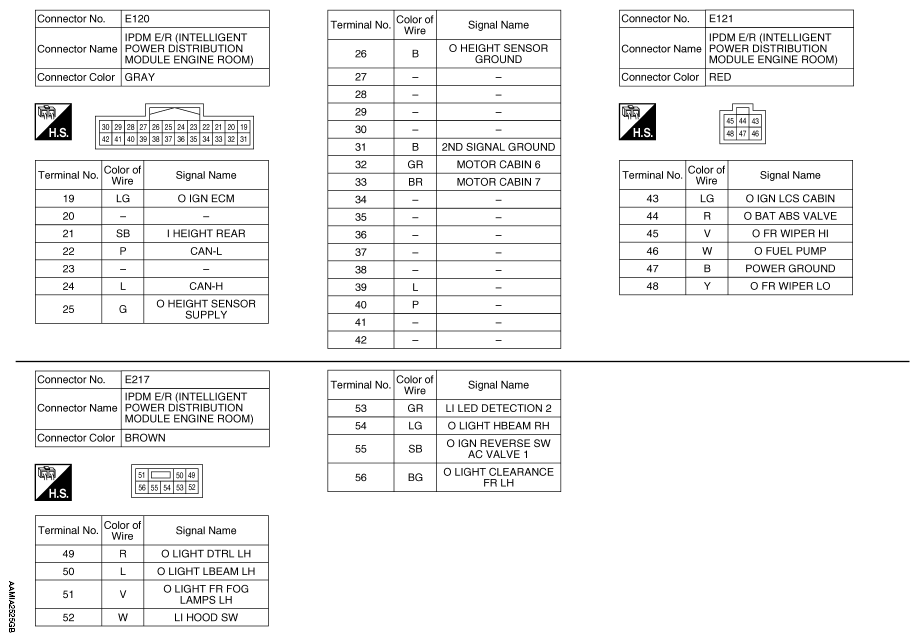

Fig 2: IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector Terminals (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

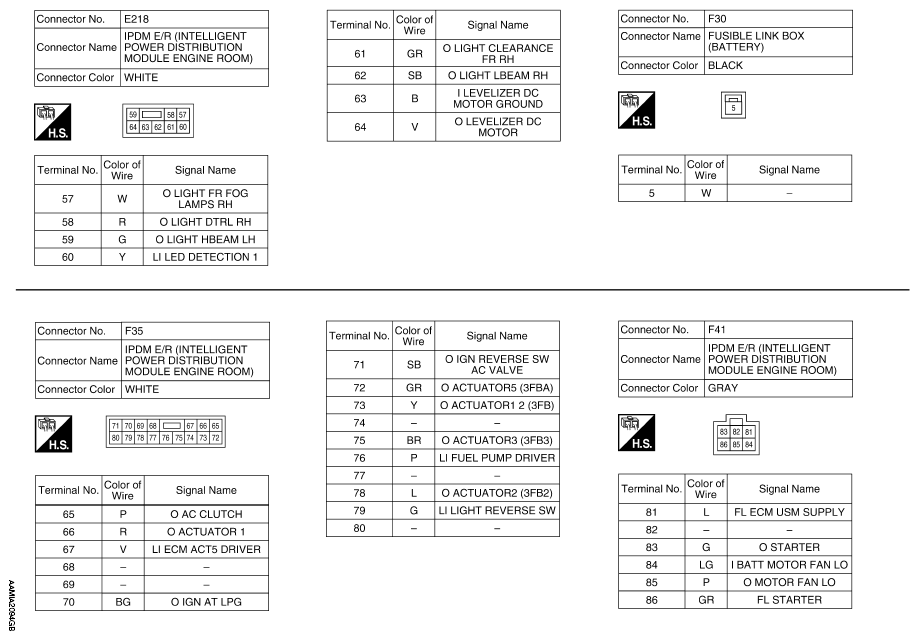

Fig 3: IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector Terminals (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 4: IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector Terminals (4 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
