Terminal Layout

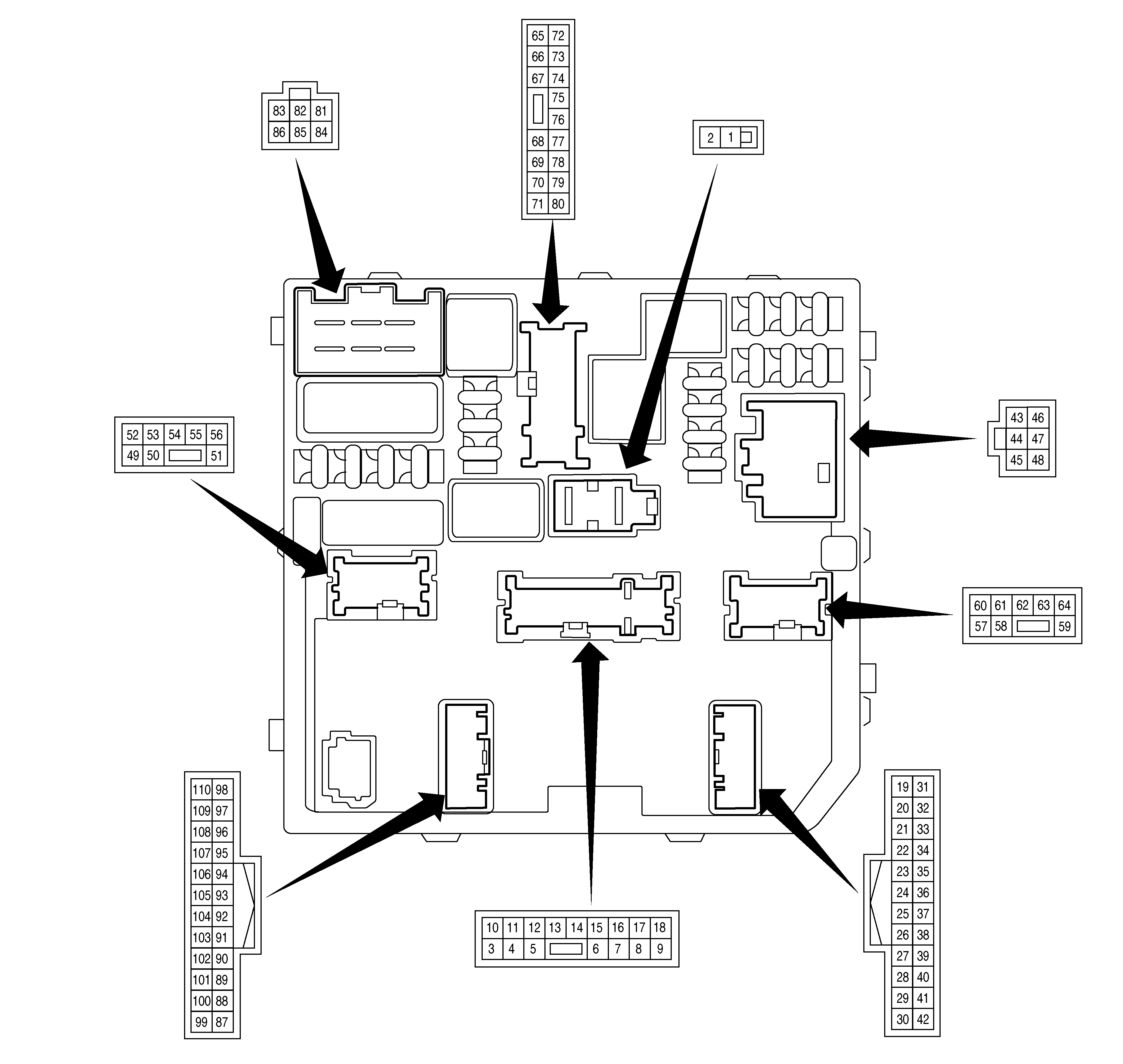

Fig 1: IPDM/ER Connector End Views

G09157615

Courtesy of NISSAN NORTH AMERICA, INC.
