Connector End Views

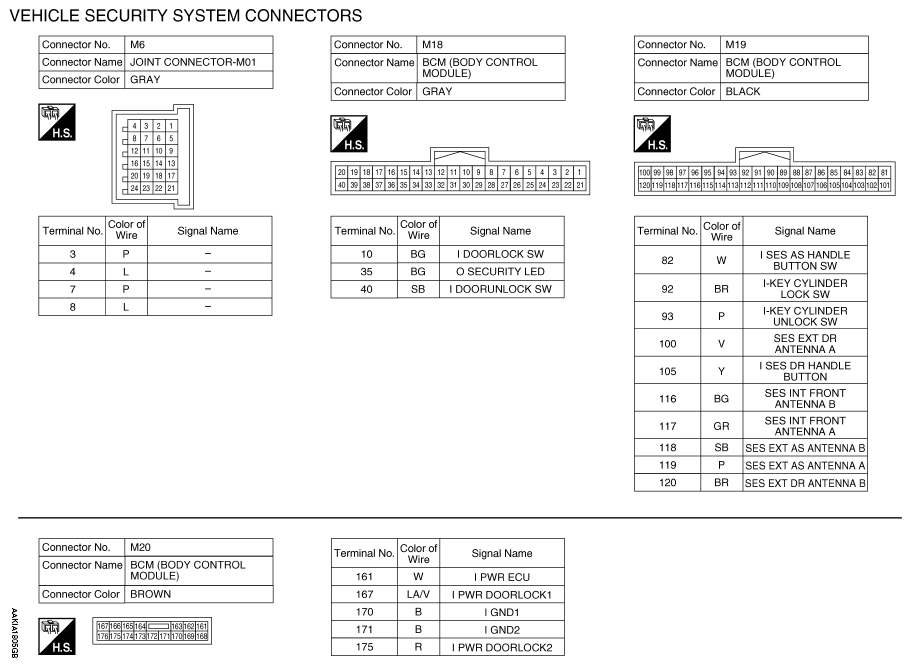

Fig 1: Vehicle Security System Connector End Views (1 Of 9)
G09158661Courtesy of NISSAN NORTH AMERICA, INC.

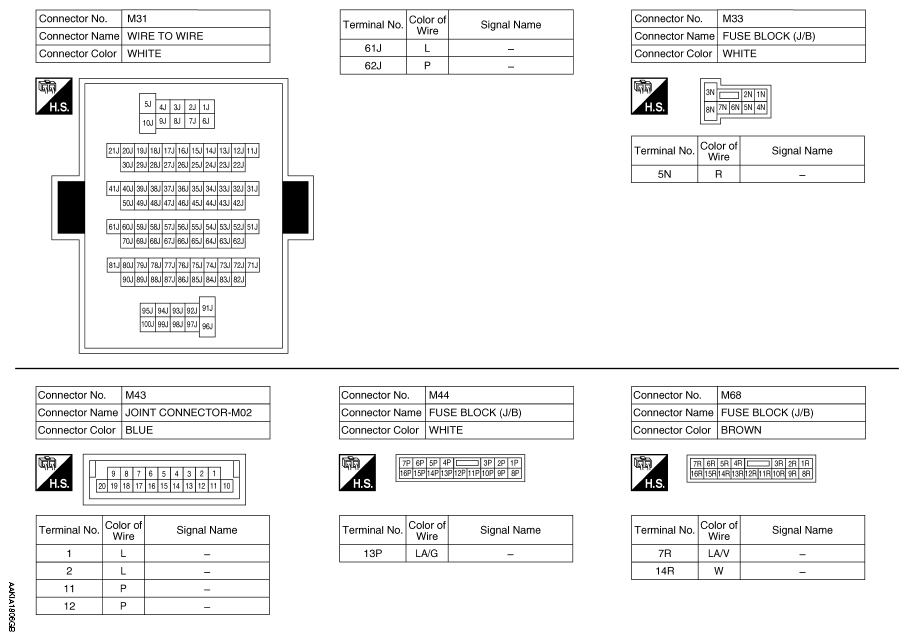

Fig 2: Vehicle Security System Connector End Views (2 Of 9)
G09158662Courtesy of NISSAN NORTH AMERICA, INC.

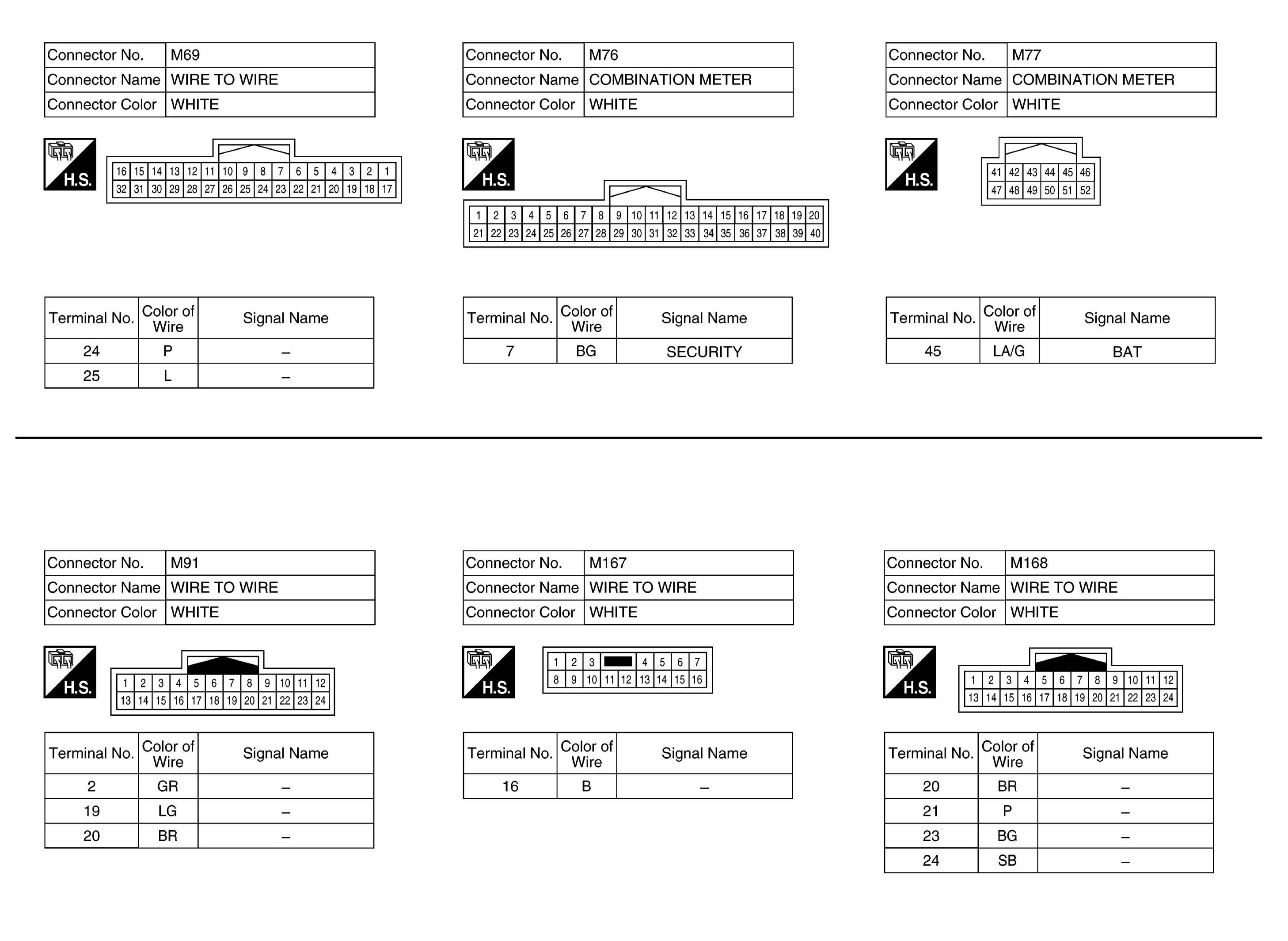

Fig 3: Vehicle Security System Connector End Views (3 Of 9)
G09158663Courtesy of NISSAN NORTH AMERICA, INC.

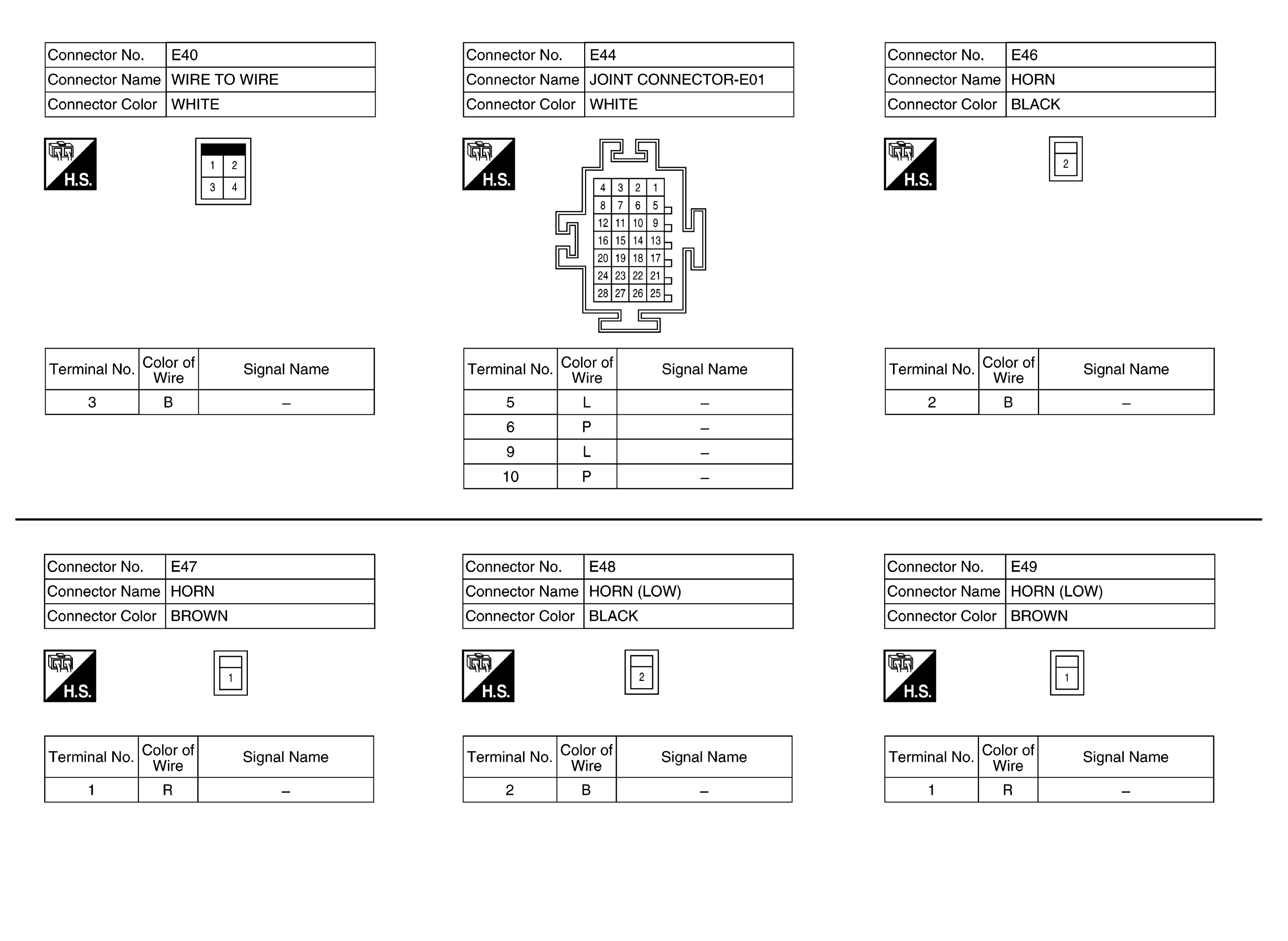

Fig 4: Vehicle Security System Connector End Views (4 Of 9)
G09158664Courtesy of NISSAN NORTH AMERICA, INC.

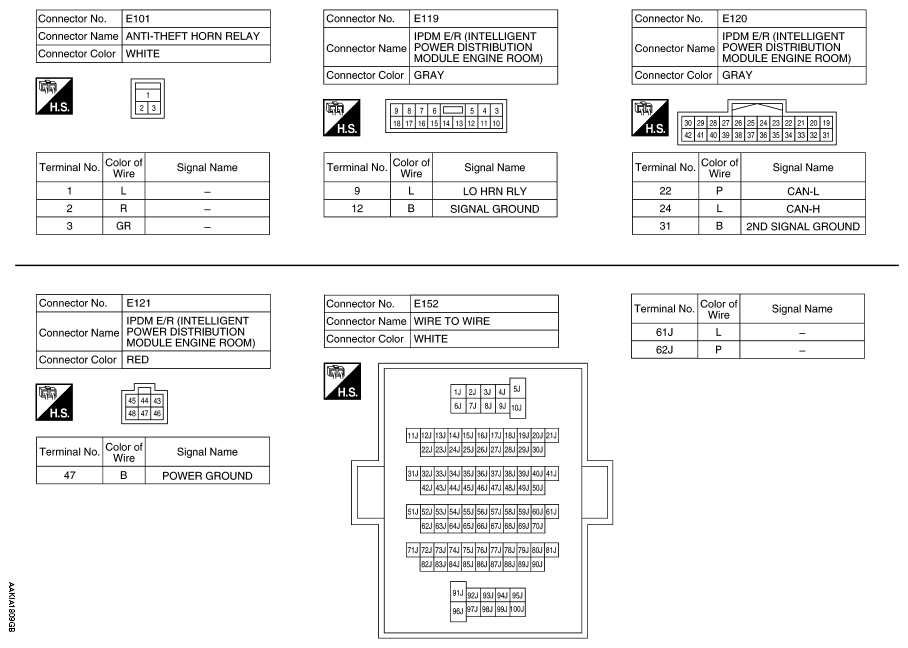

Fig 5: Vehicle Security System Connector End Views (5 Of 9)
G09158665Courtesy of NISSAN NORTH AMERICA, INC.

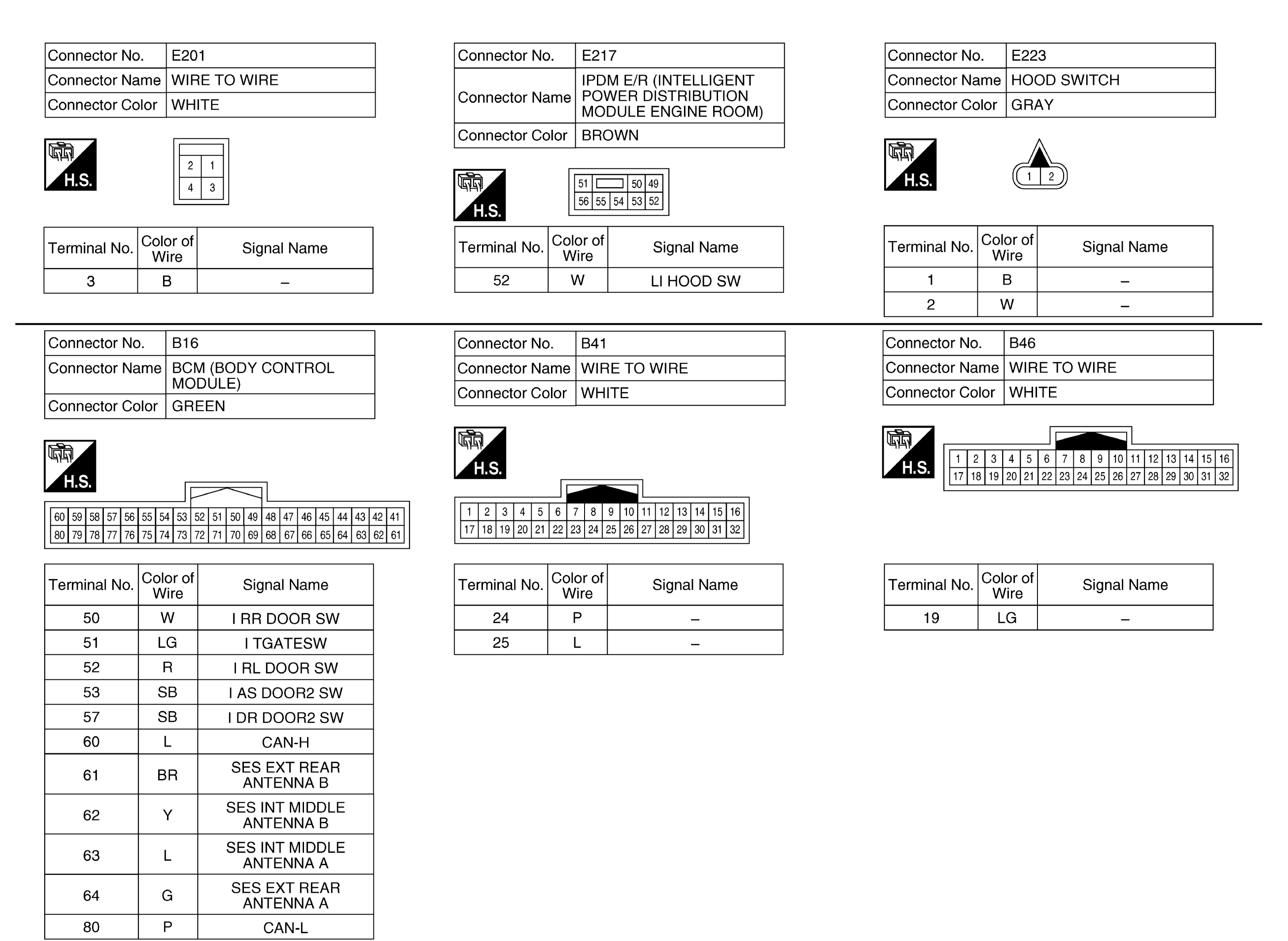

Fig 6: Vehicle Security System Connector End Views (6 Of 9)
G09158666Courtesy of NISSAN NORTH AMERICA, INC.

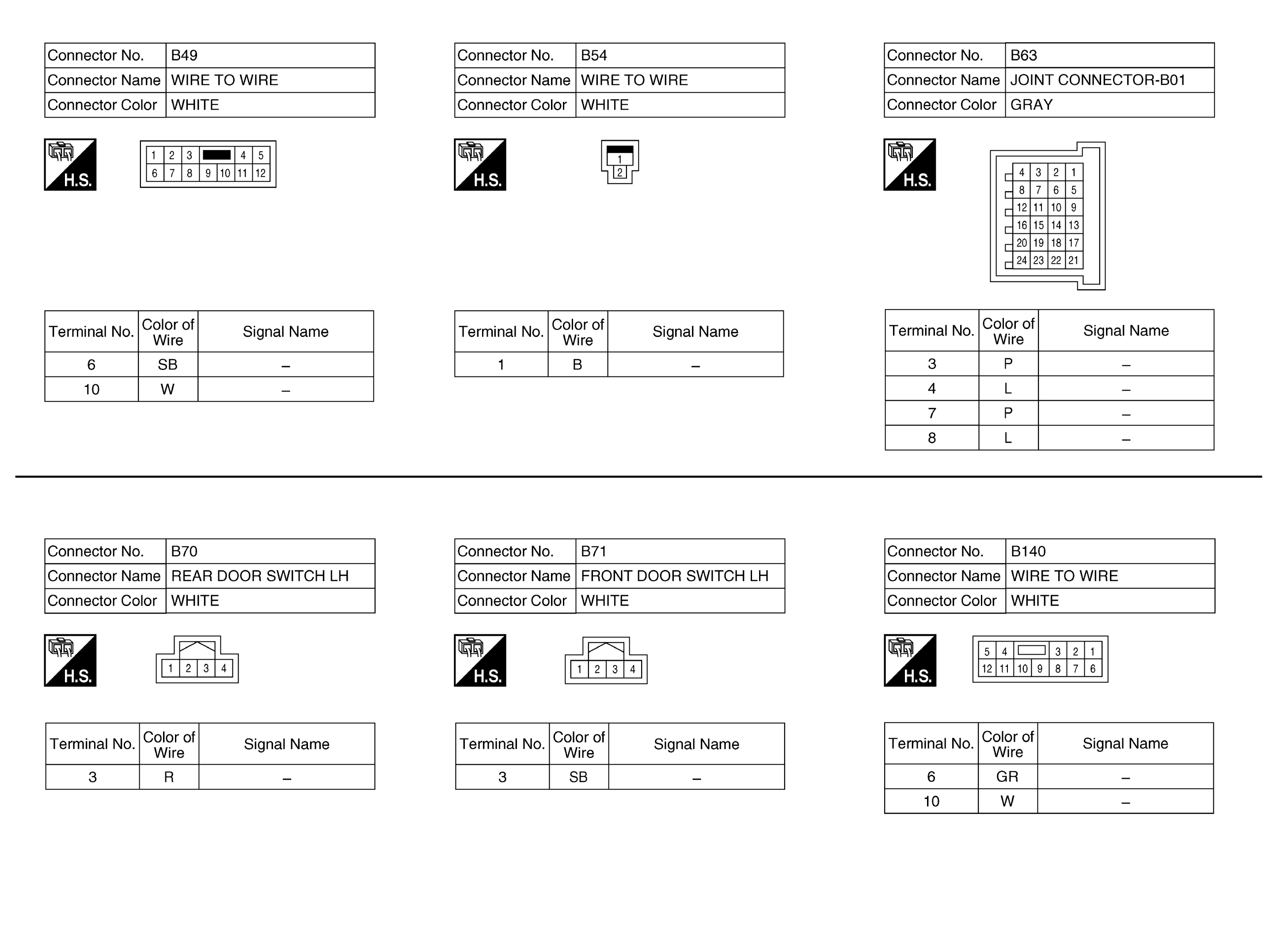

Fig 7: Vehicle Security System Connector End Views (7 Of 9)
G09158667Courtesy of NISSAN NORTH AMERICA, INC.

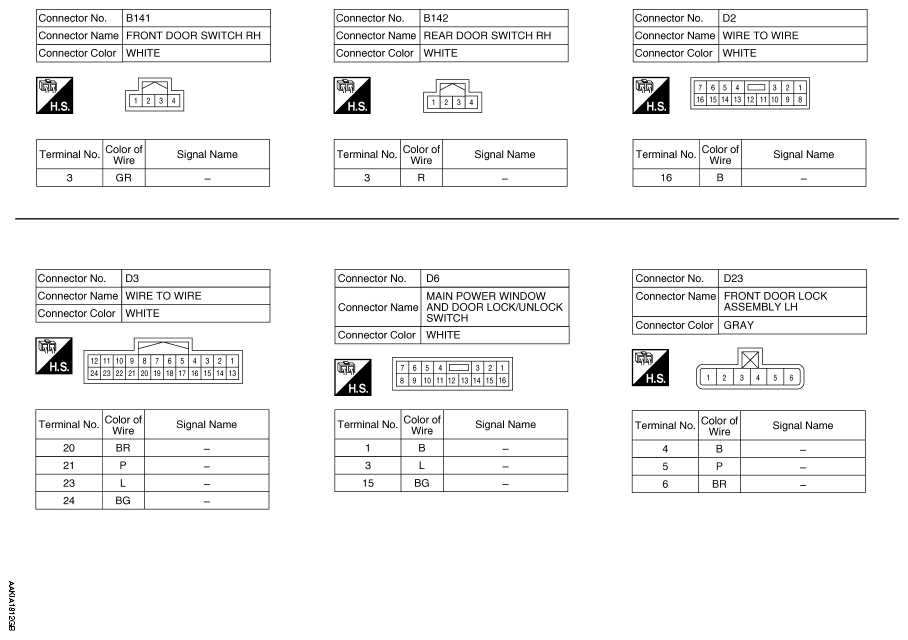

Fig 8: Vehicle Security System Connector End Views (8 Of 9)
G09158668Courtesy of NISSAN NORTH AMERICA, INC.

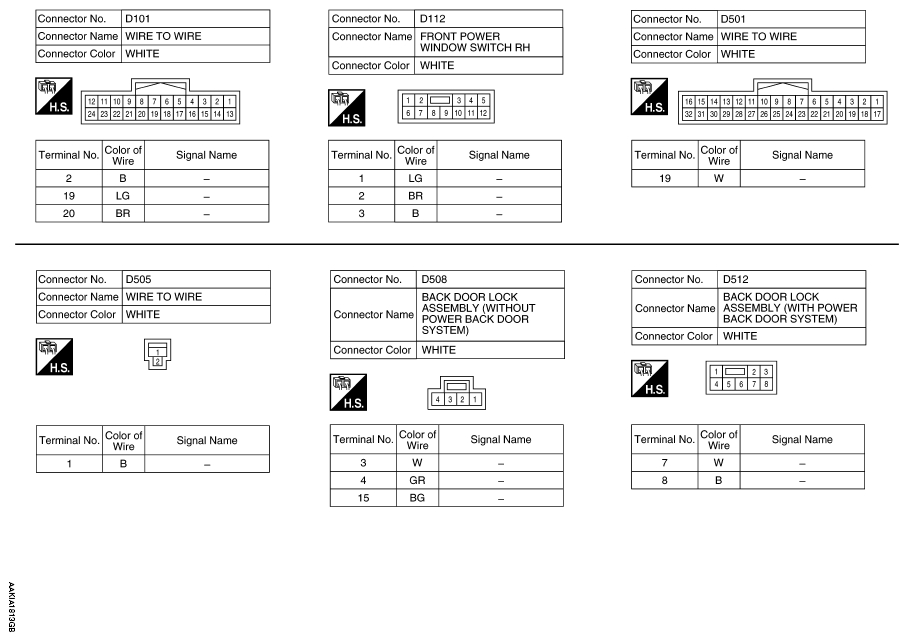

Fig 9: Vehicle Security System Connector End Views (9 Of 9)
G09158669Courtesy of NISSAN NORTH AMERICA, INC.
