Connector End Views

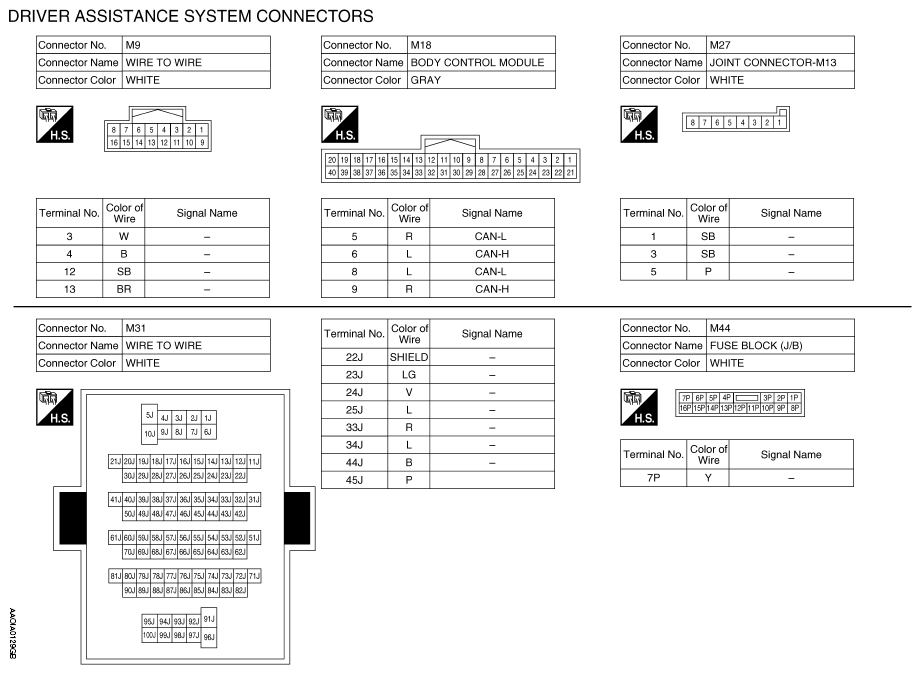

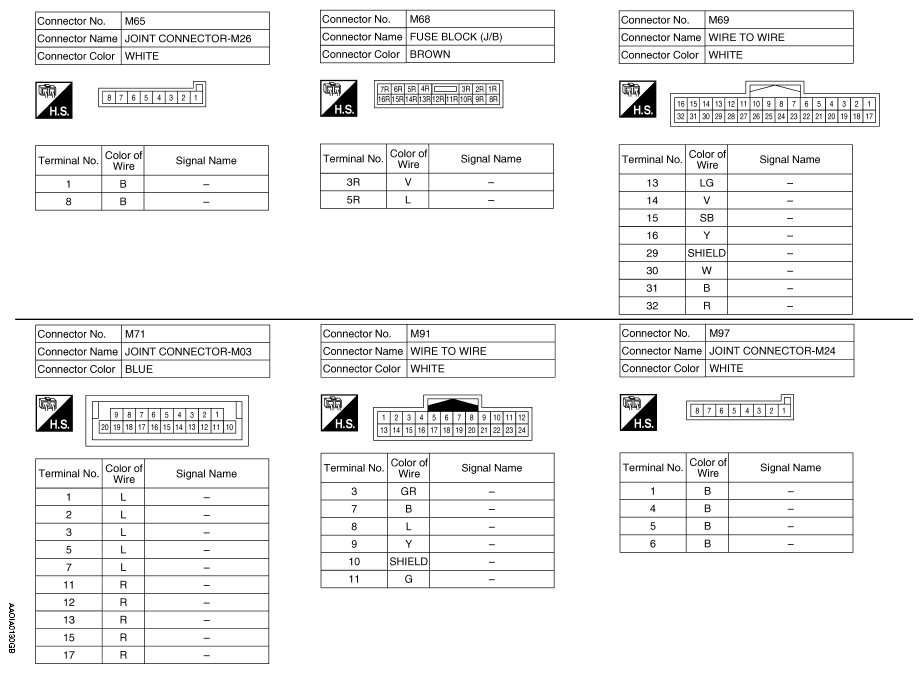

Fig 1: Driver Assistance System Connector End Views (1 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Driver Assistance System Connector End Views (2 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Driver Assistance System Connector End Views (3 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Driver Assistance System Connector End Views (4 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Driver Assistance System Connector End Views (5 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Driver Assistance System Connector End Views (6 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Driver Assistance System Connector End Views (7 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Driver Assistance System Connector End Views (8 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Driver Assistance System Connector End Views (9 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.
