FCW: Switch Name and Function

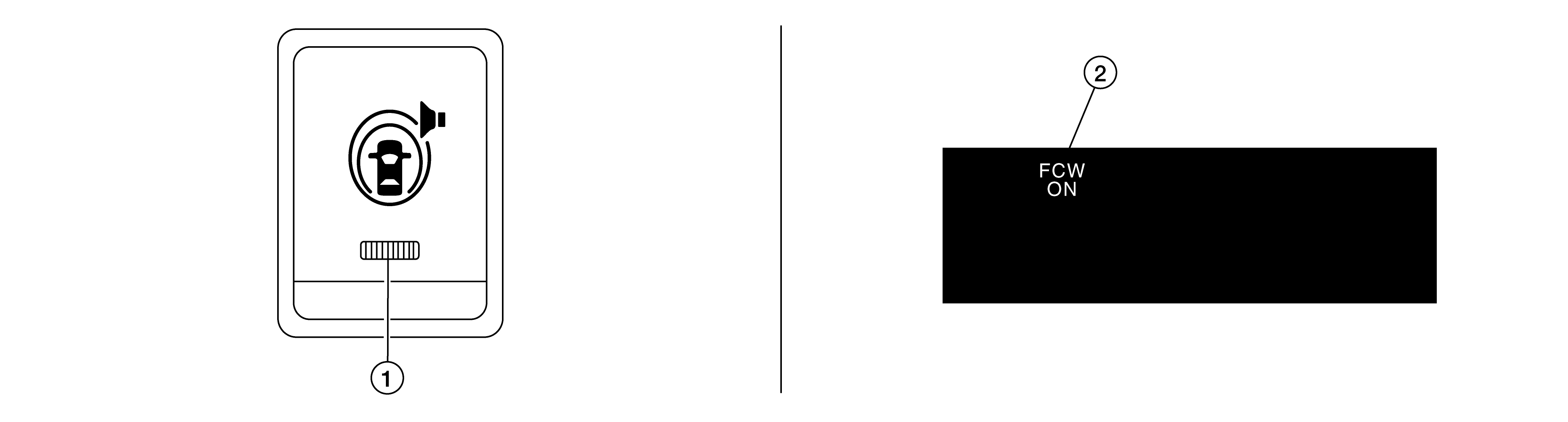

Fig 1: Identifying FCW Warning Systems Switch And FCW System Setting Screen
G08852488Courtesy of NISSAN NORTH AMERICA, INC.
No. Switch name Description
1. Warning systems switch Turns FCW system ON/OFF
(When the setting of FCW system in the vehicle information display is ON)
2. FCW system setting screen (the vehicle information display) The setting of FCW system can be switched between ON and OFF
