Mike's Workshop Manuals
: Service manuals for every vehicle
Home
>>
Nissan-Datsun
>>
2014
>>
Rogue SL, AWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Drivers Assistance Systems - ADAS
>>
Driver Assistance System (Driver Assistance System)
>>
Removal And Installation
>>
Rear View Camera Air Pump Motor
>>
Exploded View
Exploded View

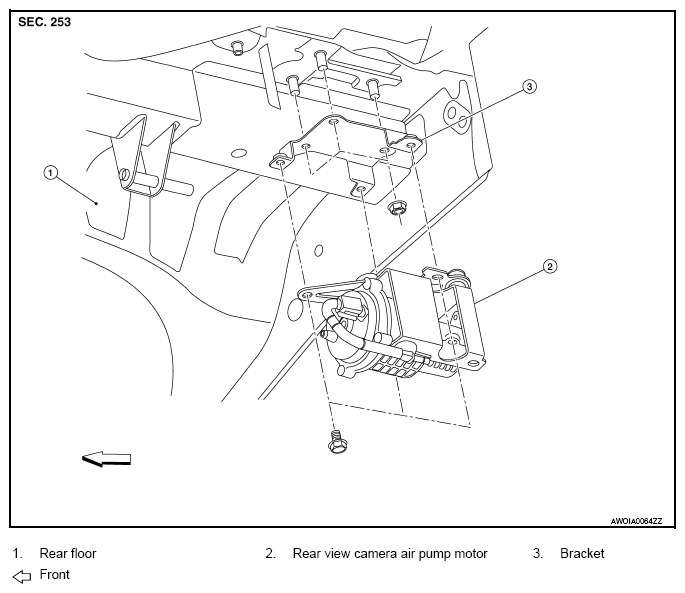

Fig 1: Exploded View Of Rear View Camera Air Pump Motor
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
