Component Function Check

CHECK FUEL PUMP FUNCTION
1. Turn ignition switch ON.
2. Pinch fuel feed hose (<==) with two fingers.

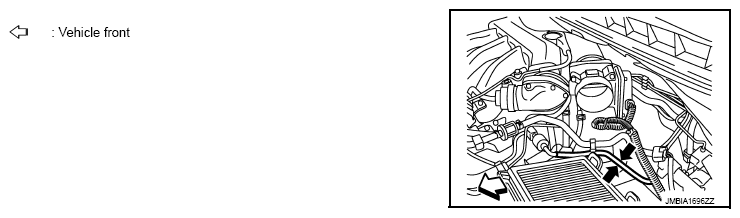

  Fig 1: Locating Pinch Fuel Feed Hose
  Courtesy of NISSAN NORTH AMERICA, INC.

  Fuel pressure pulsation should be felt on the fuel feed hose for 1 second after ignition switch is turned ON.

  Is the inspection result normal?

  YES: INSPECTION END

  NO: "DIAGNOSIS PROCEDURE ".
