Connector End Views

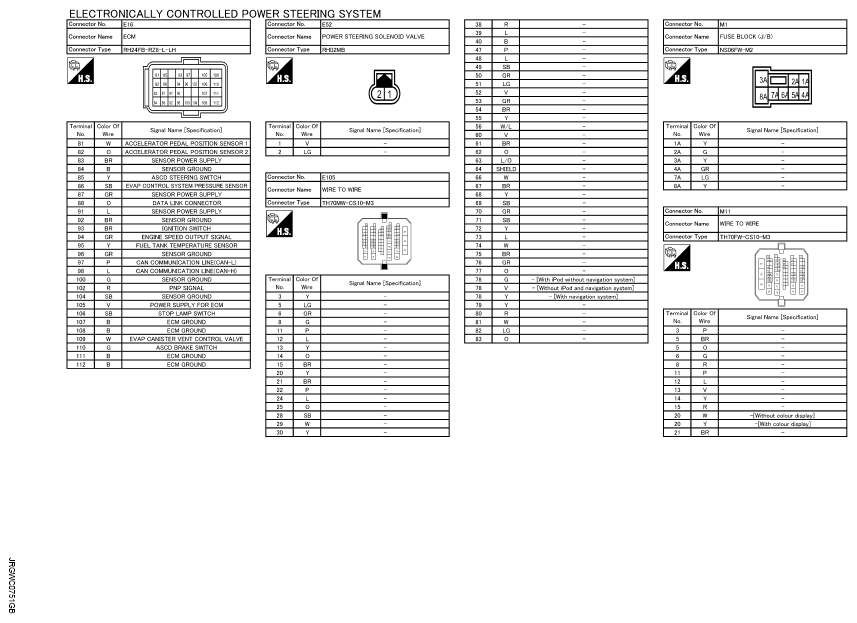

Fig 1: Electronically Controlled Power Steering System Connector End Views (1 Of 2)
G09562583Courtesy of NISSAN NORTH AMERICA, INC.

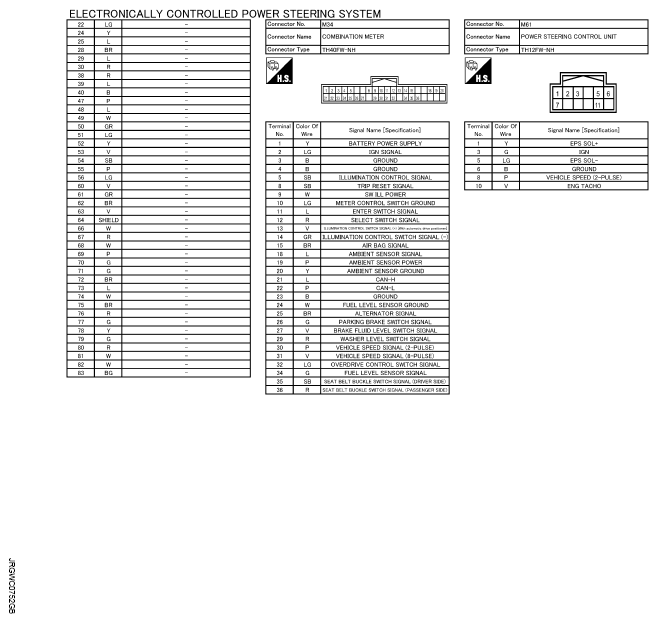

Fig 2: Electronically Controlled Power Steering System Connector End Views (2 Of 2)
G09562584Courtesy of NISSAN NORTH AMERICA, INC.
