Home >> Nissan-Datsun >> 2014 >> Murano SL, AWD >> Repair and Diagnosis >> General Information >> Identification >> General Information (Except CROSSCABRIOLET) >> Basic Inspection >> Consult/GST Checking System >> CONSULT Function and System Application*1 >> System Application*1

System Application*1

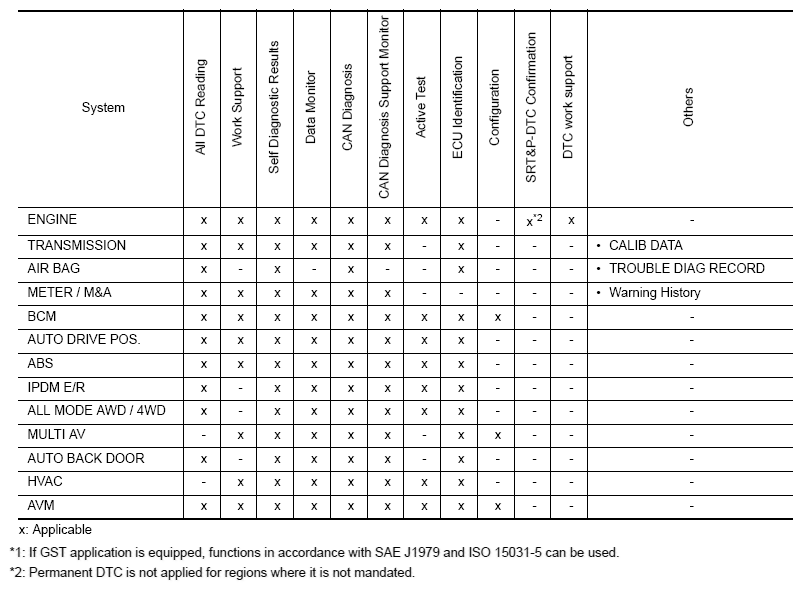

Fig 1: CONSULT/GST Checking System Application Chart

G09560823

Courtesy of NISSAN NORTH AMERICA, INC.
