Component Parts Location

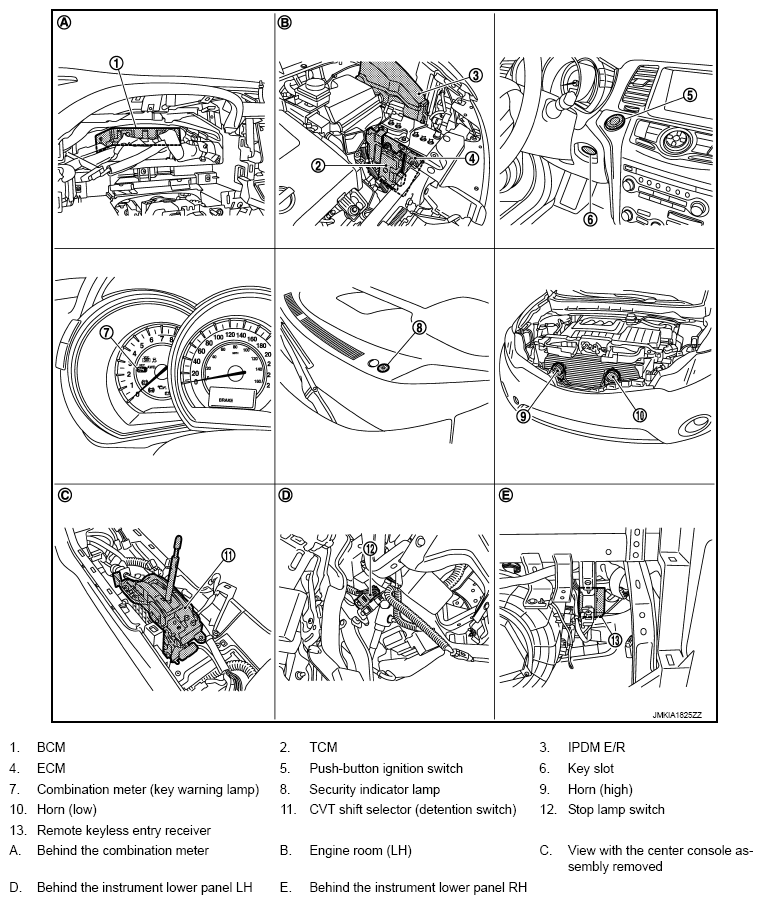

Fig 1: Vehicle Security System Component Parts Location (1 Of 2)
G09564001Courtesy of NISSAN NORTH AMERICA, INC.

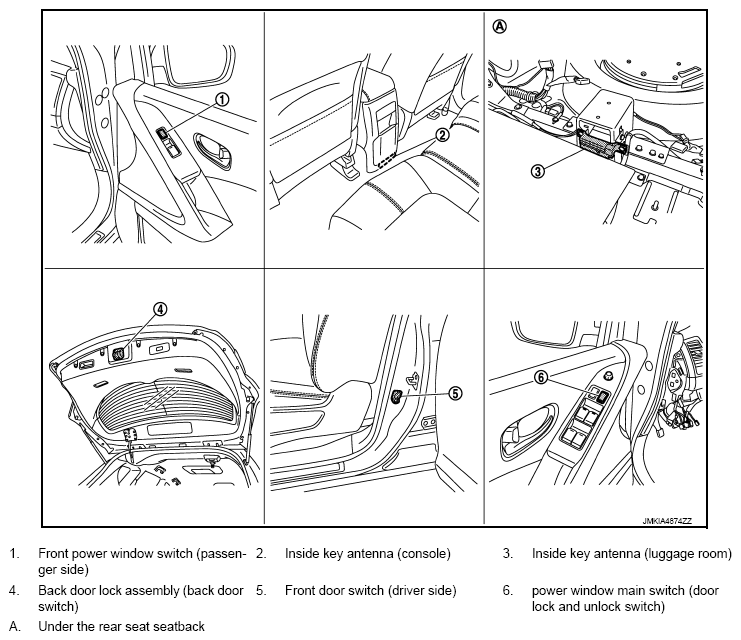

Fig 2: Vehicle Security System Component Parts Location (2 Of 2)
G09564002Courtesy of NISSAN NORTH AMERICA, INC.
