Connector End Views

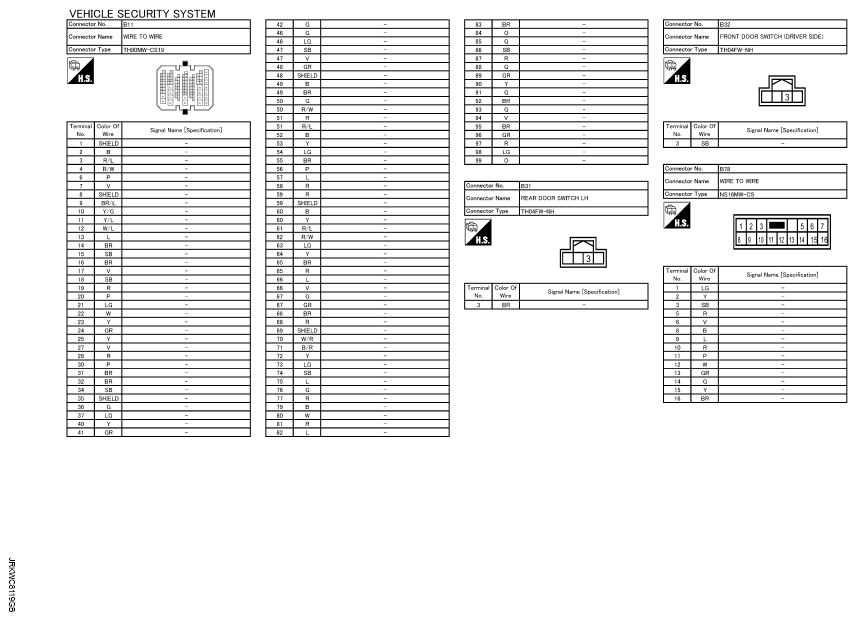

Fig 1: Vehicle Security System Connector End Views (1 Of 7)
G09564025Courtesy of NISSAN NORTH AMERICA, INC.

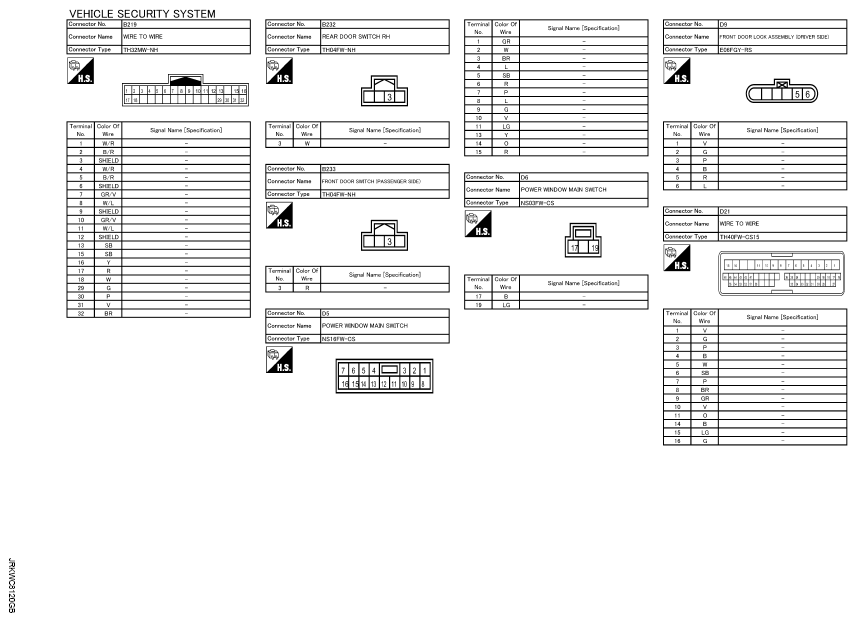

Fig 2: Vehicle Security System Connector End Views (2 Of 7)
G09564026Courtesy of NISSAN NORTH AMERICA, INC.

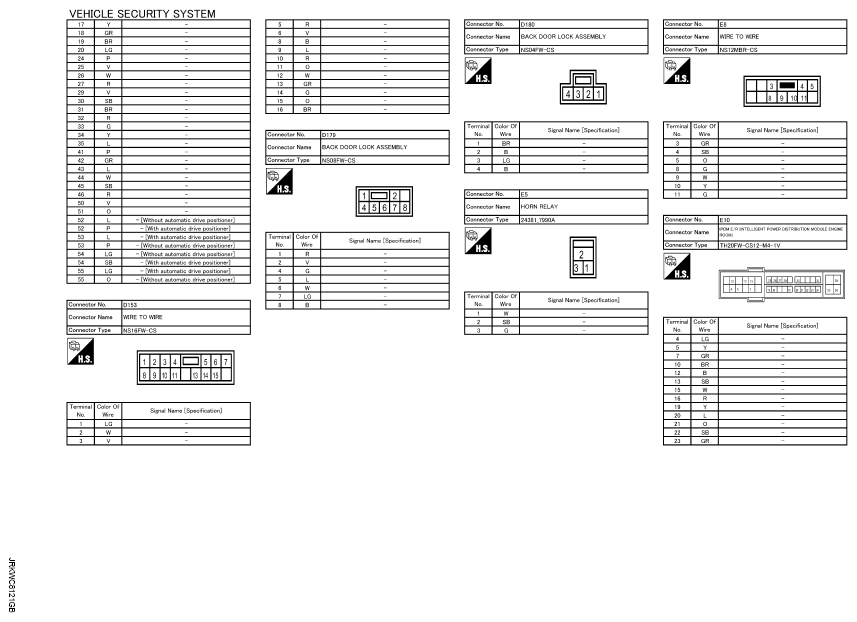

Fig 3: Vehicle Security System Connector End Views (3 Of 7)
G09564027Courtesy of NISSAN NORTH AMERICA, INC.

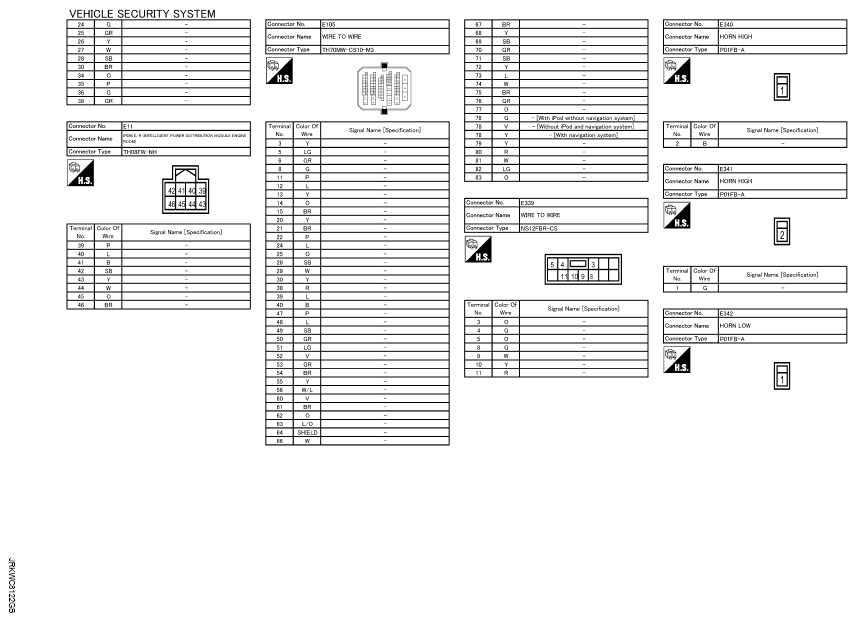

Fig 4: Vehicle Security System Connector End Views (4 Of 7)
G09564028Courtesy of NISSAN NORTH AMERICA, INC.

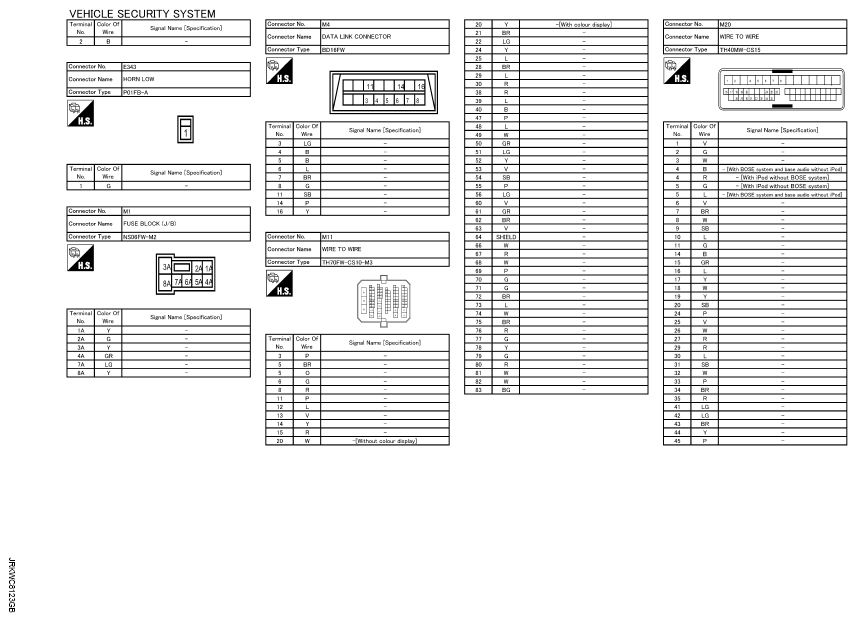

Fig 5: Vehicle Security System Connector End Views (5 Of 7)
G09564029Courtesy of NISSAN NORTH AMERICA, INC.

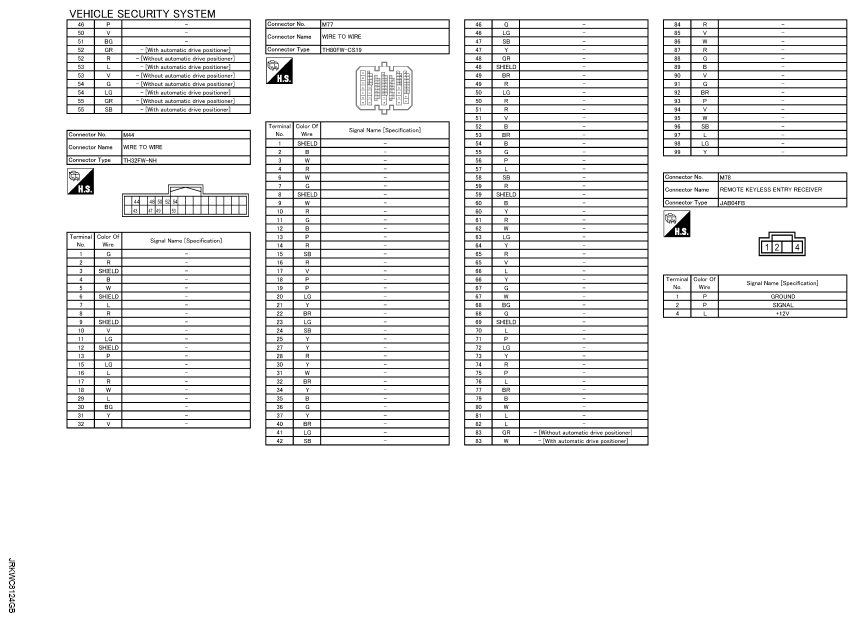

Fig 6: Vehicle Security System Connector End Views (6 Of 7)
G09564030Courtesy of NISSAN NORTH AMERICA, INC.

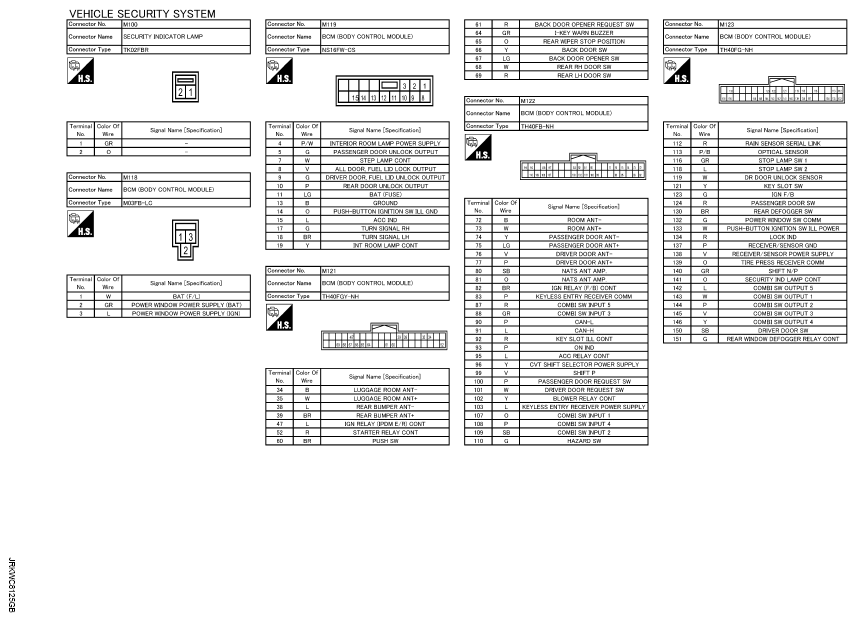

Fig 7: Vehicle Security System Connector End Views (7 Of 7)
G09564031Courtesy of NISSAN NORTH AMERICA, INC.
