Tilt Motor
>>
Exploded View
Exploded View

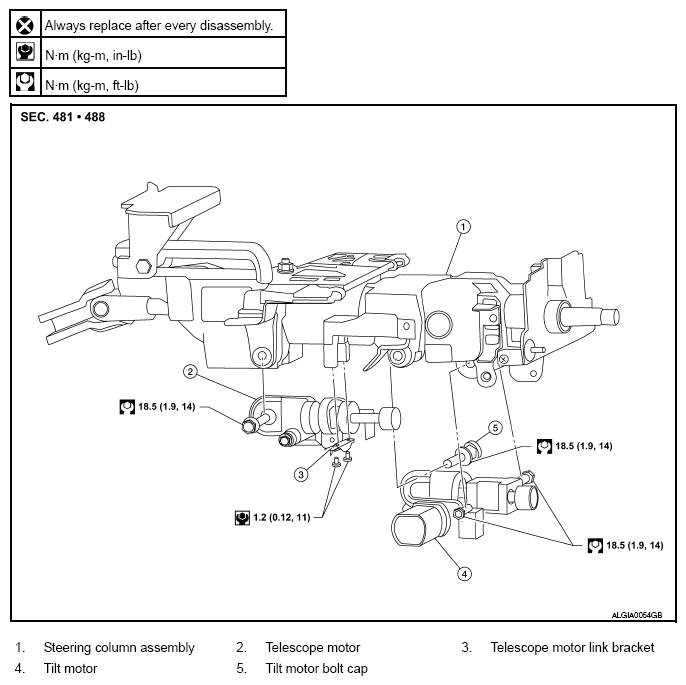

Fig 1: Exploded View Of Tilt Motor
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
