Lubrication Circuit

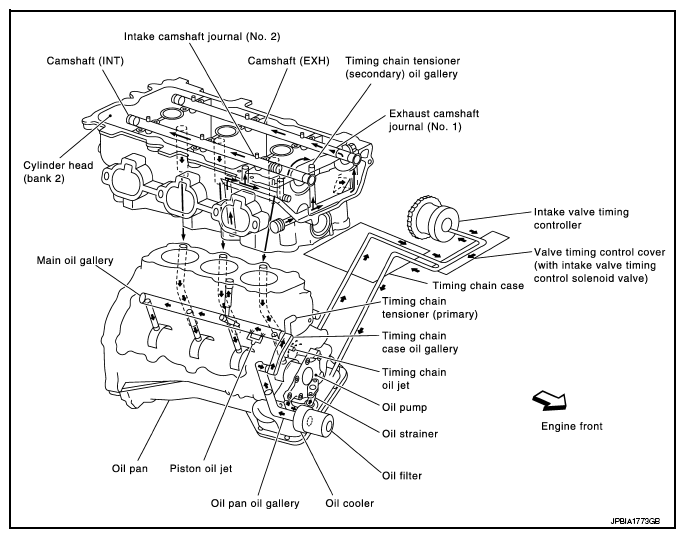

Fig 1: Lubrication System Flow Diagram

G09139938

Courtesy of NISSAN NORTH AMERICA, INC.
