Connector End Views

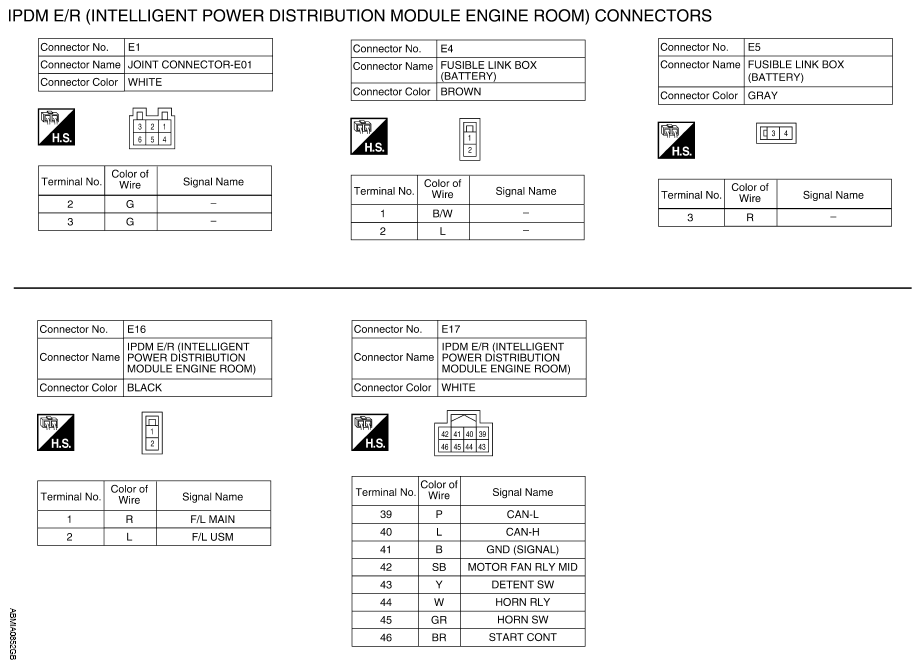

Fig 1: Intelligent Power Distribution Module Engine Room Connector End Views (1 Of 3)
G06993596Courtesy of NISSAN NORTH AMERICA, INC.

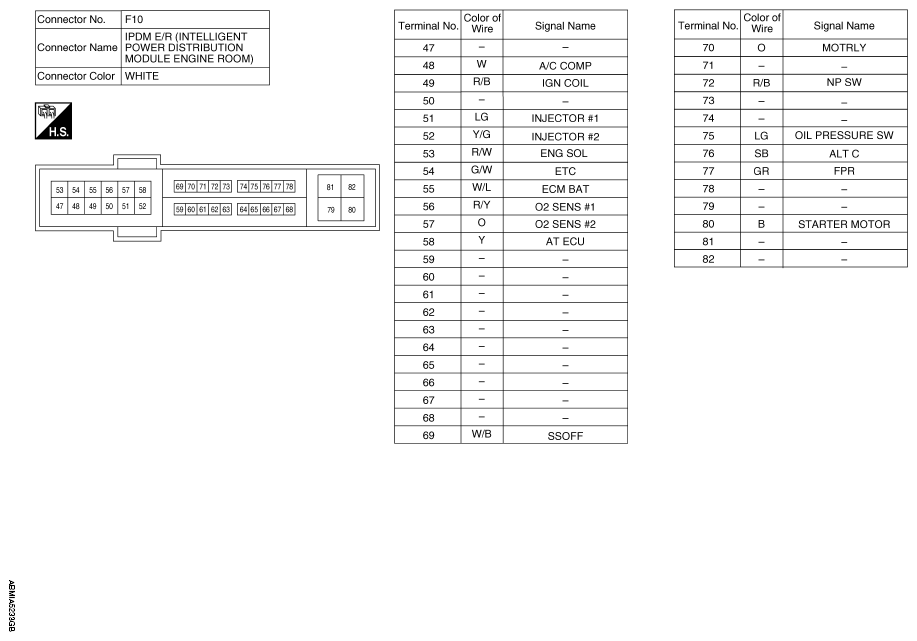

Fig 2: Intelligent Power Distribution Module Engine Room Connector End Views (2 Of 3)
G09559184Courtesy of NISSAN NORTH AMERICA, INC.

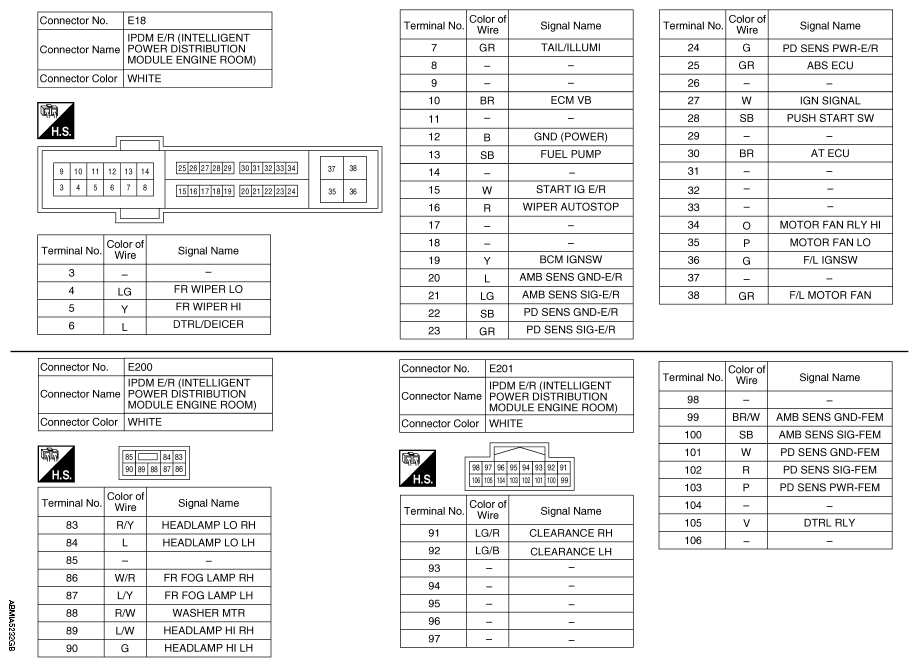

Fig 3: Intelligent Power Distribution Module Engine Room Connector End Views (3 Of 3)
G09559185Courtesy of NISSAN NORTH AMERICA, INC.
