EV Control System (Introduction)
>>
System Description
>>
System
>>
Motor Power Control
>>
MOTOR POWER CONTROL: System Description
>>
System Diagram
System Diagram

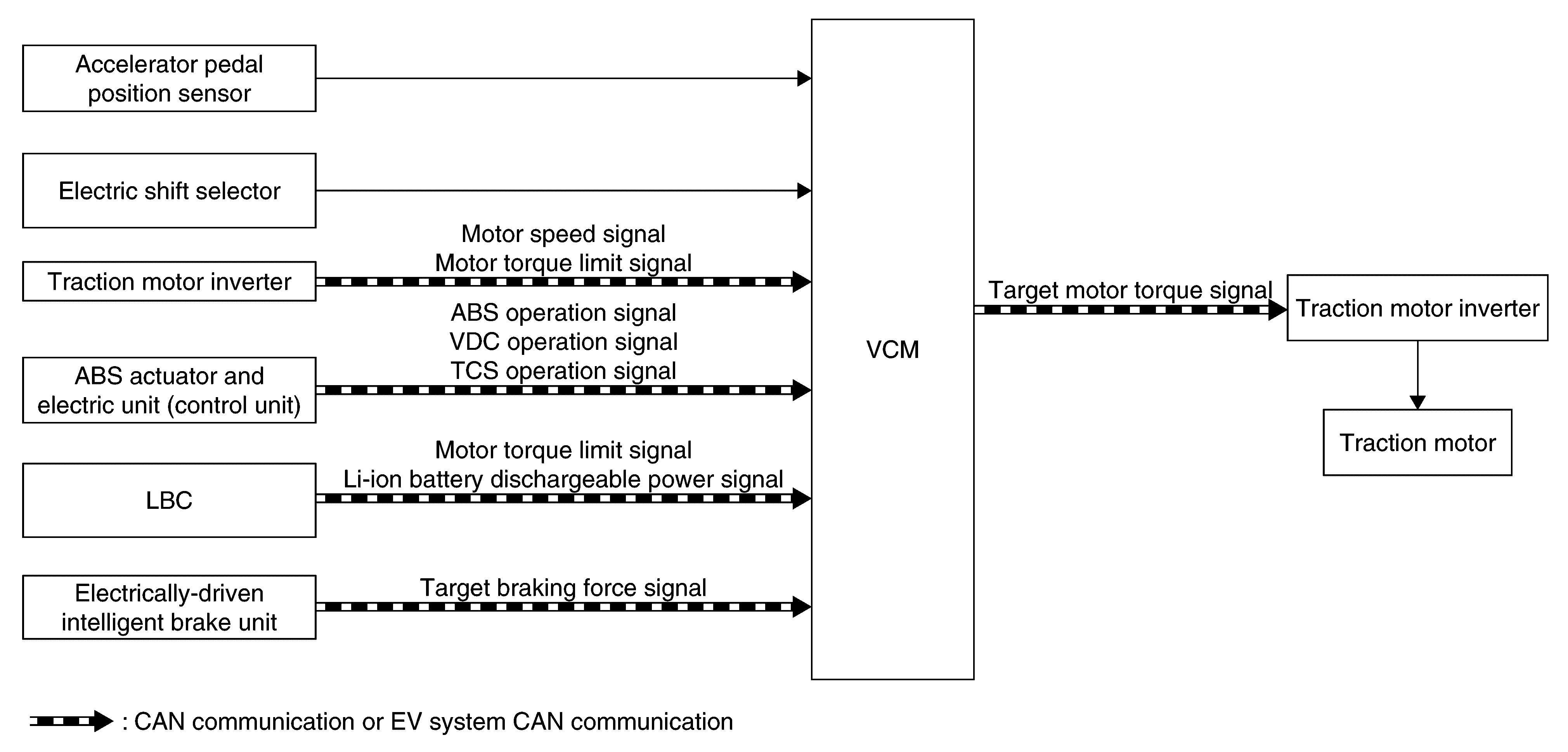

Fig 1: Motor Power Control - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
VCM calculates vehicle speed, based on a motor speed.
Courtesy of NISSAN NORTH AMERICA, INC.
