EV Control System (Introduction)
>>
System Description
>>
System
>>
ECO Mode/B Mode System
>>
ECO MODE/B MODE SYSTEM: System Description
>>
System Diagram
System Diagram

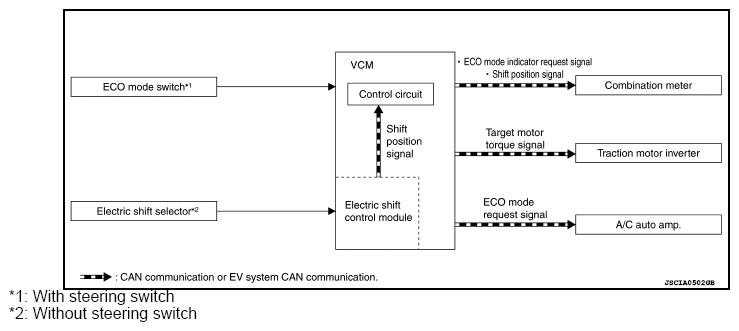

Fig 1: ECO Mode/B Mode System - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
