Connector End Views

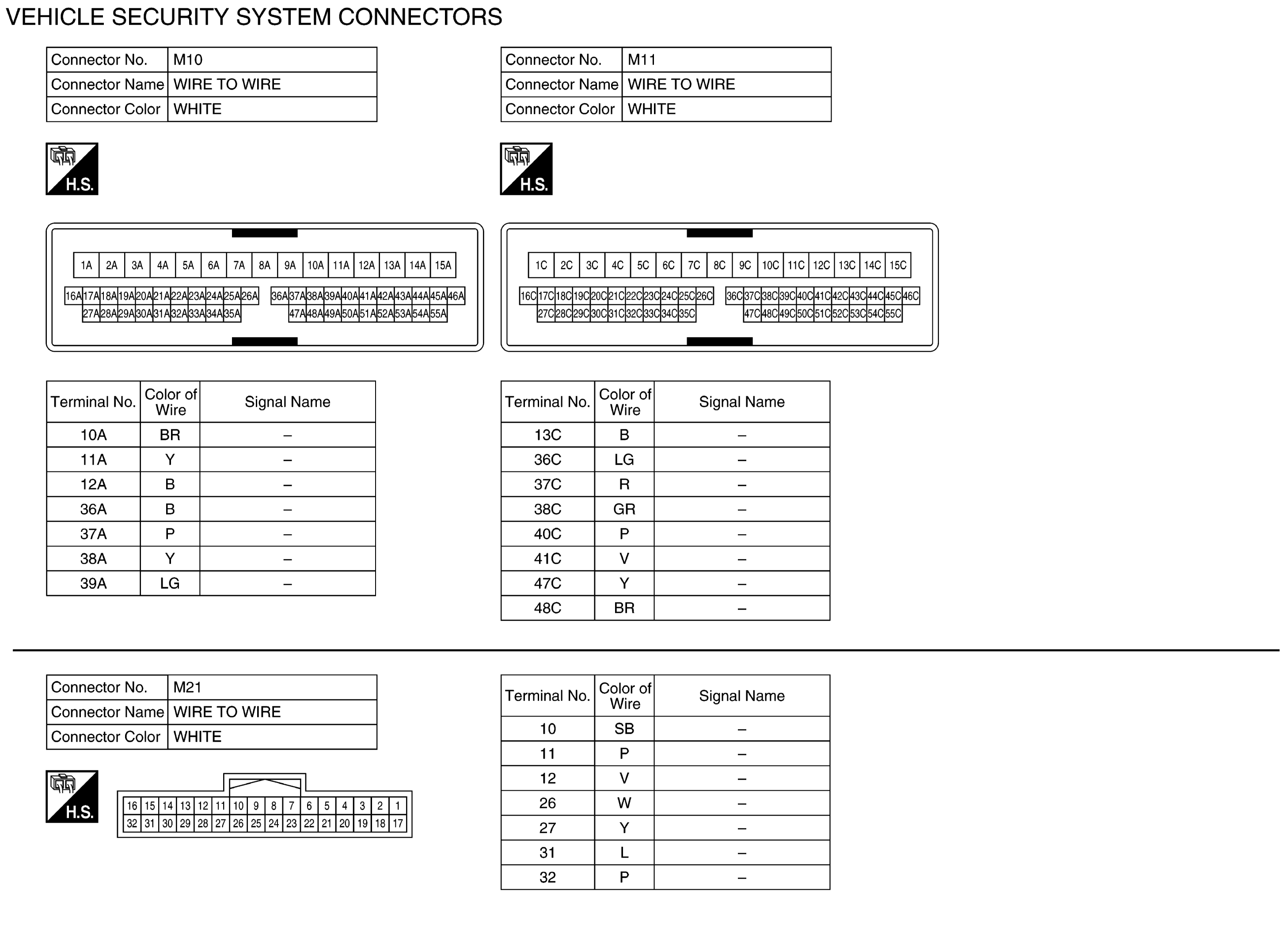

Fig 1: Vehicle Security System Connector End Views (1 Of 10)
G09456314Courtesy of NISSAN NORTH AMERICA, INC.

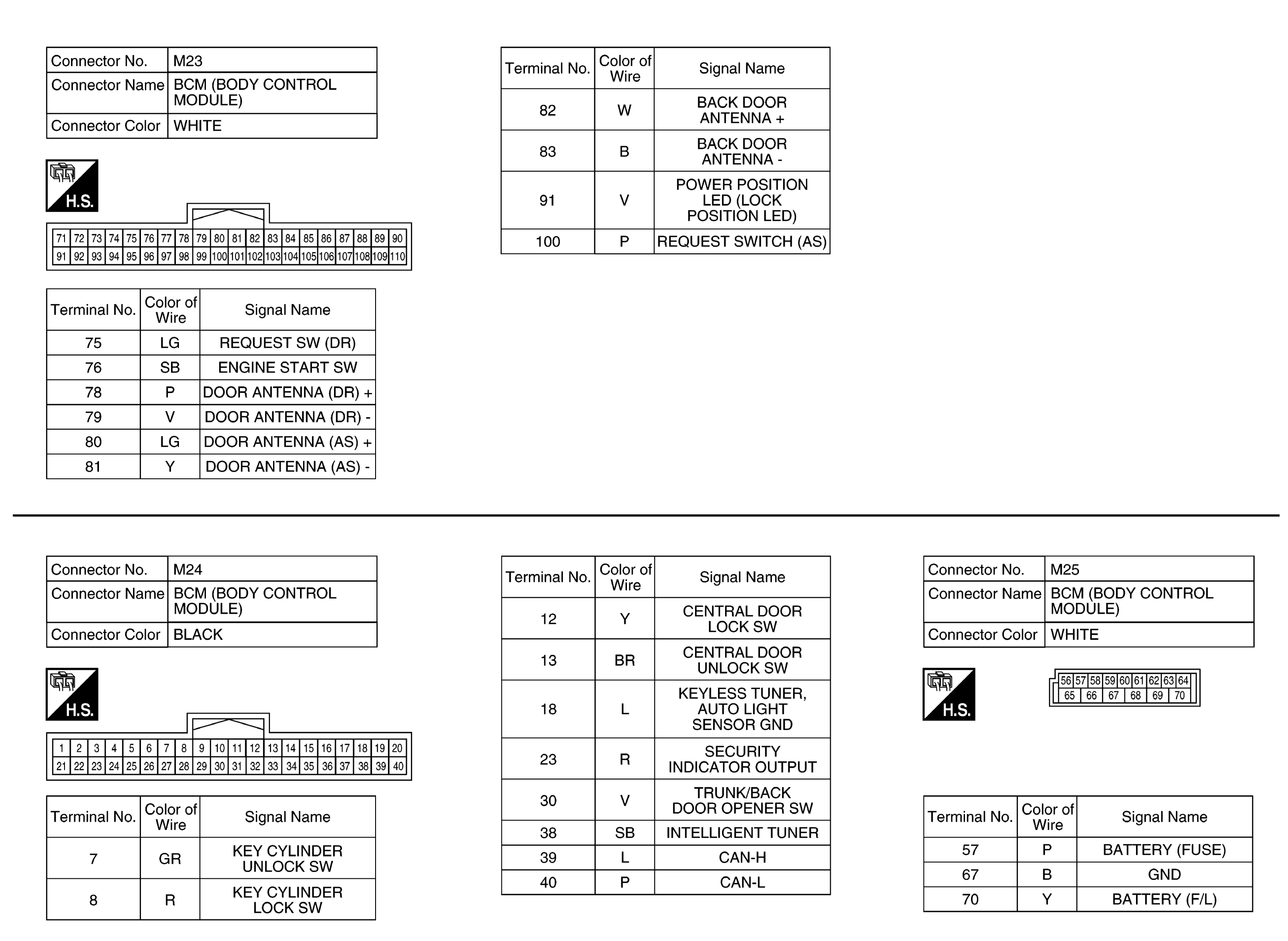

Fig 2: Vehicle Security System Connector End Views (2 Of 10)
G09456315Courtesy of NISSAN NORTH AMERICA, INC.

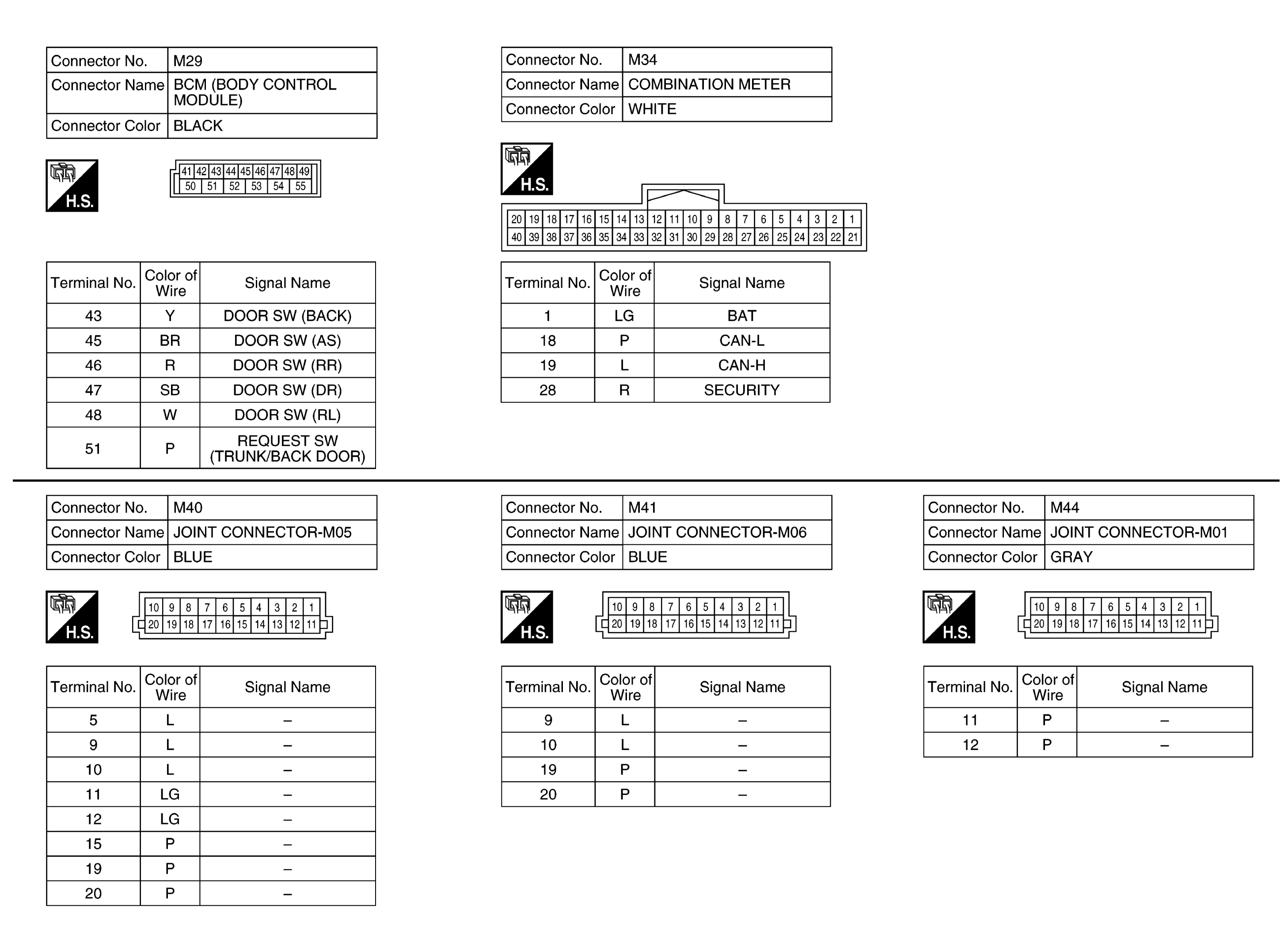

Fig 3: Vehicle Security System Connector End Views (3 Of 10)
G09456316Courtesy of NISSAN NORTH AMERICA, INC.

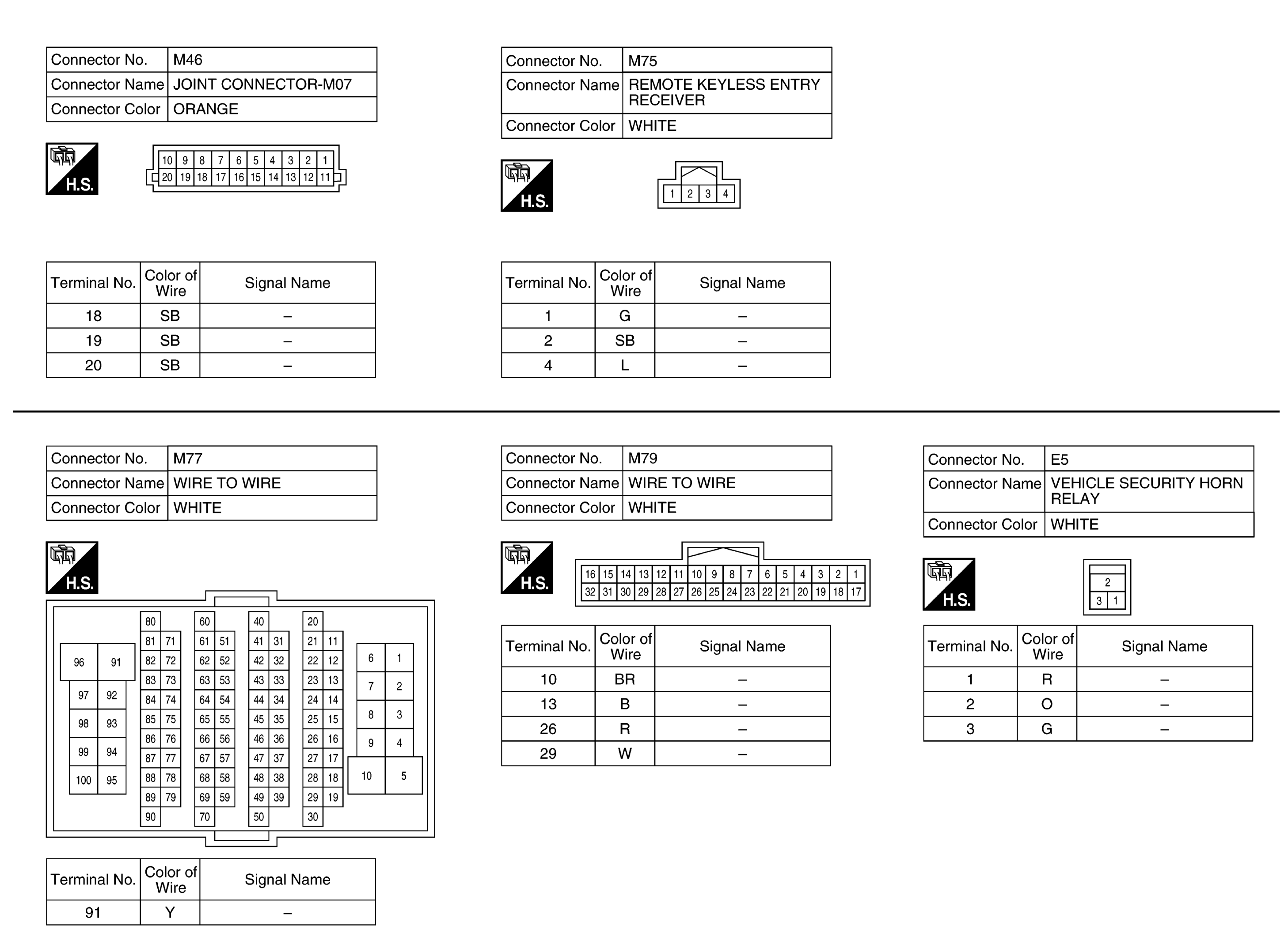

Fig 4: Vehicle Security System Connector End Views (4 Of 10)
G09456317Courtesy of NISSAN NORTH AMERICA, INC.

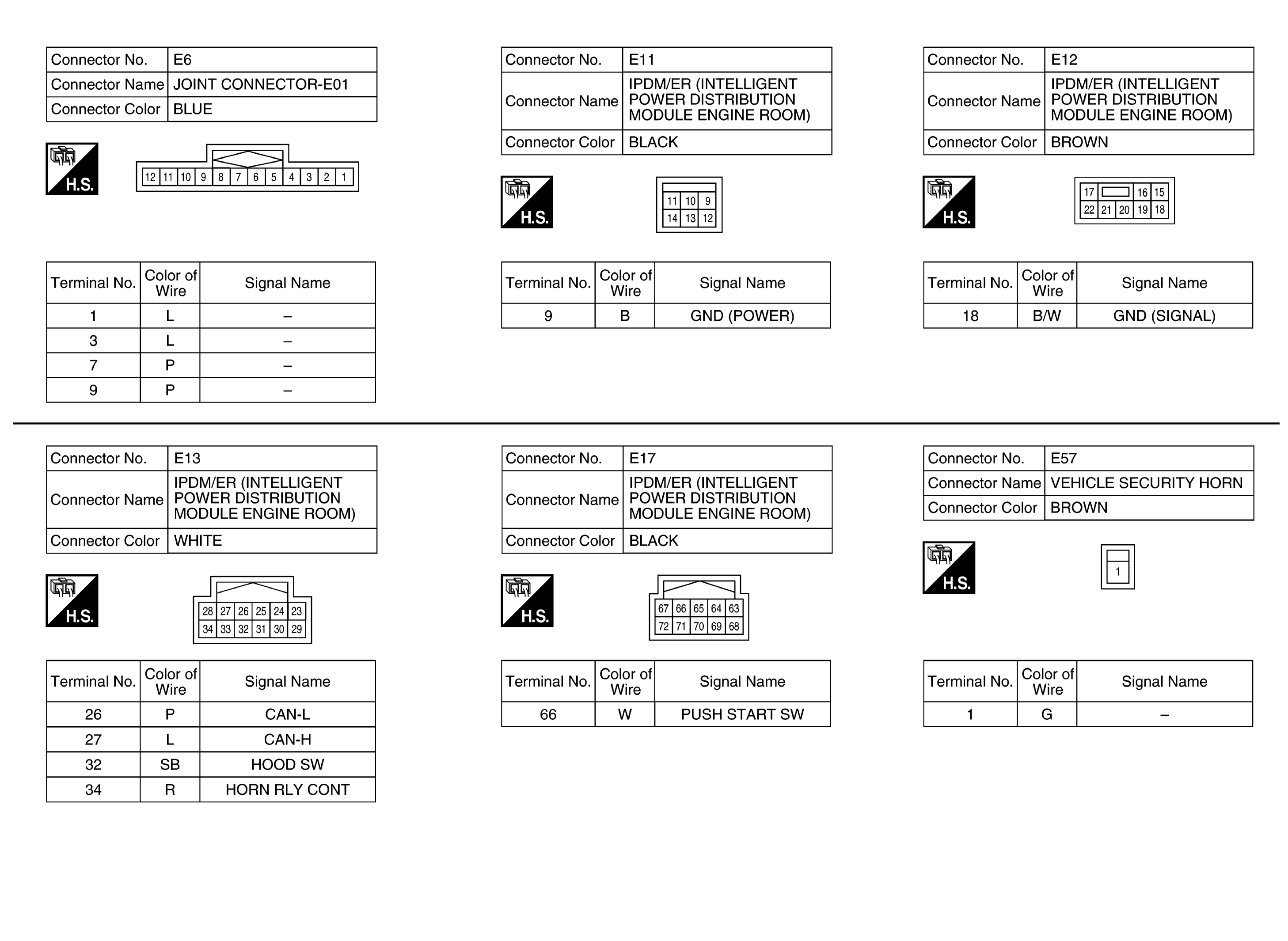

Fig 5: Vehicle Security System Connector End Views (5 Of 10)
G09456318Courtesy of NISSAN NORTH AMERICA, INC.

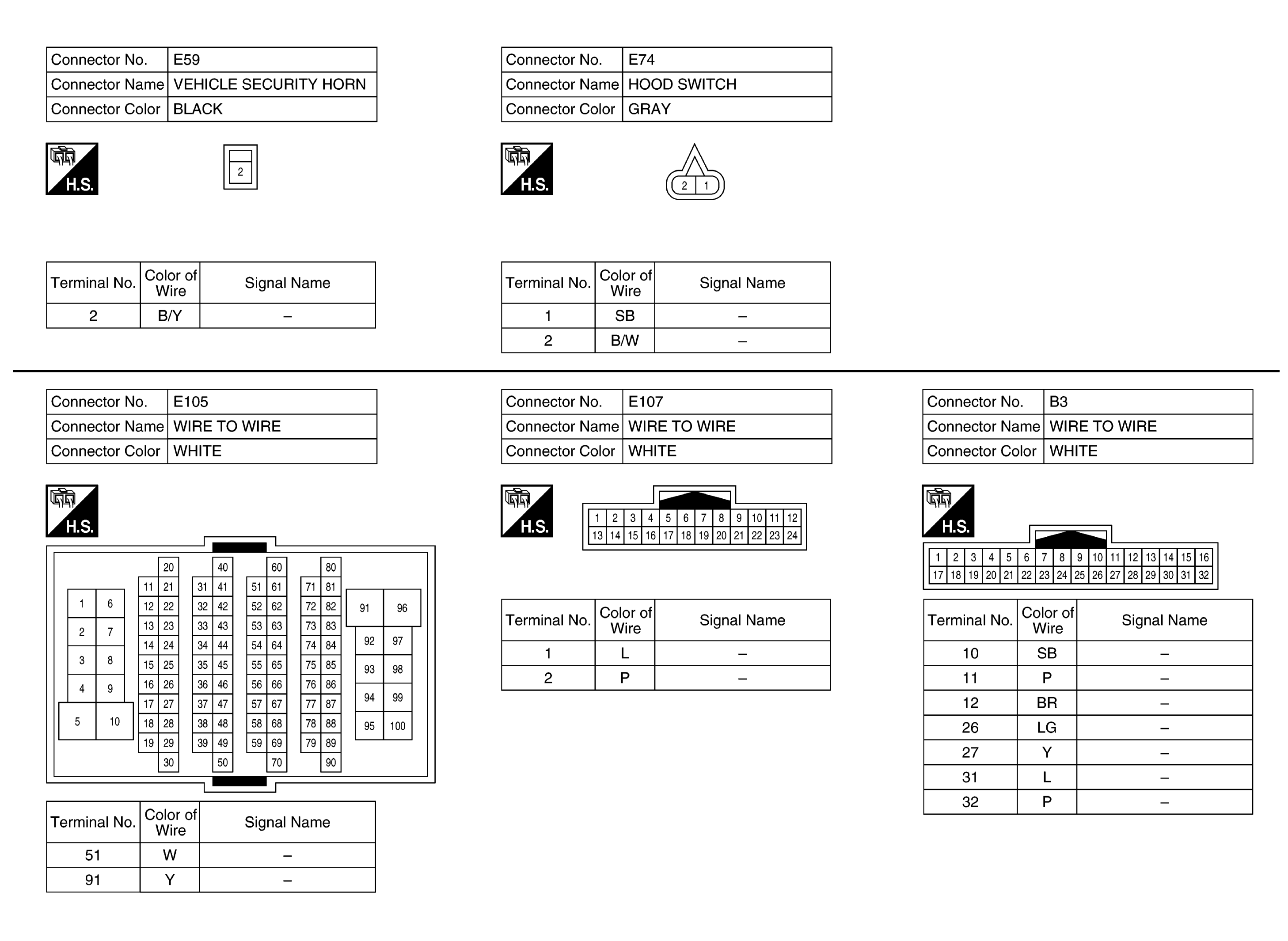

Fig 6: Vehicle Security System Connector End Views (6 Of 10)
G09456319Courtesy of NISSAN NORTH AMERICA, INC.

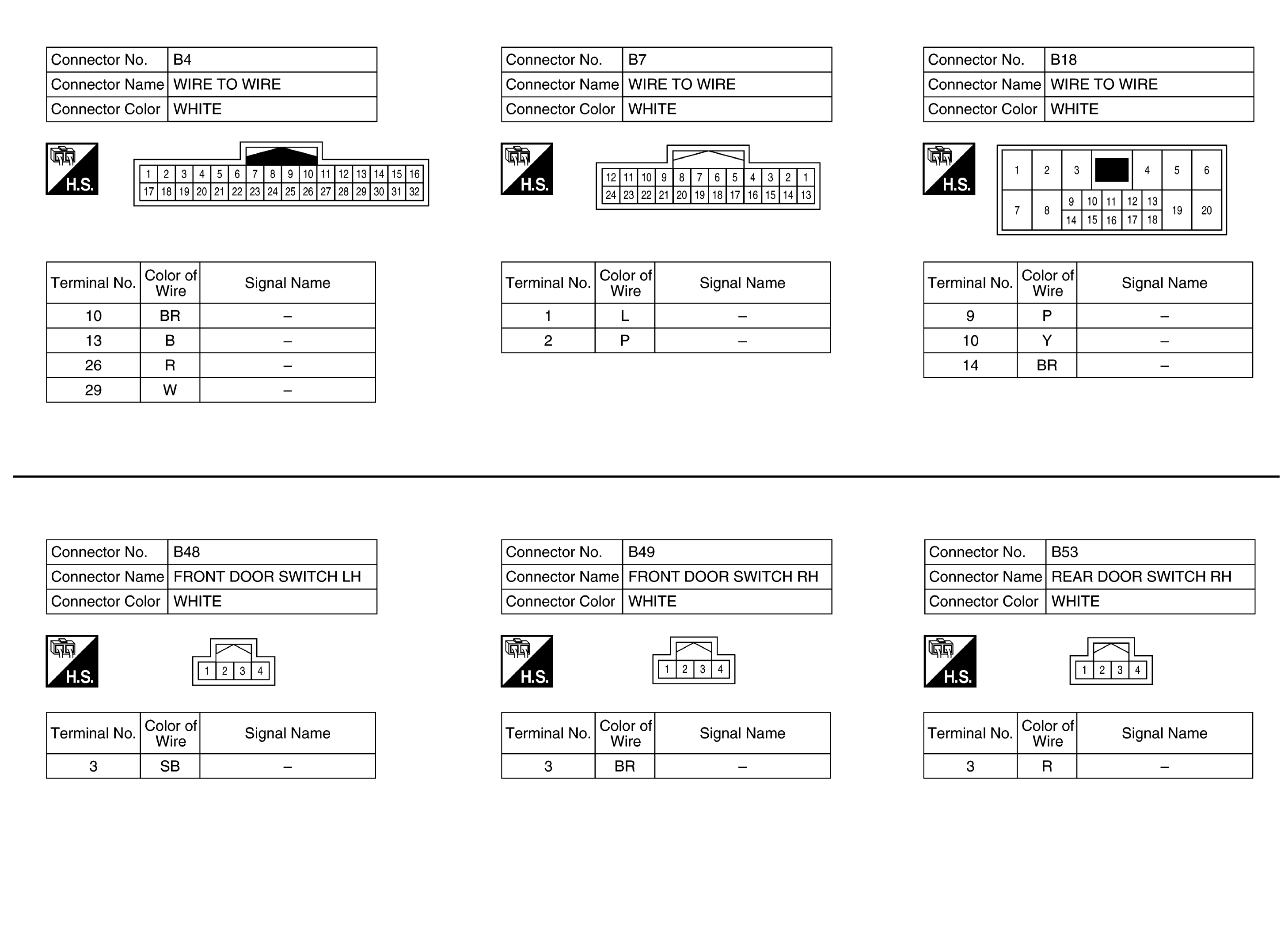

Fig 7: Vehicle Security System Connector End Views (7 Of 10)
G09456320Courtesy of NISSAN NORTH AMERICA, INC.
Fig 8: Vehicle Security System Connector End Views (8 Of 10)
G09456321Courtesy of NISSAN NORTH AMERICA, INC.

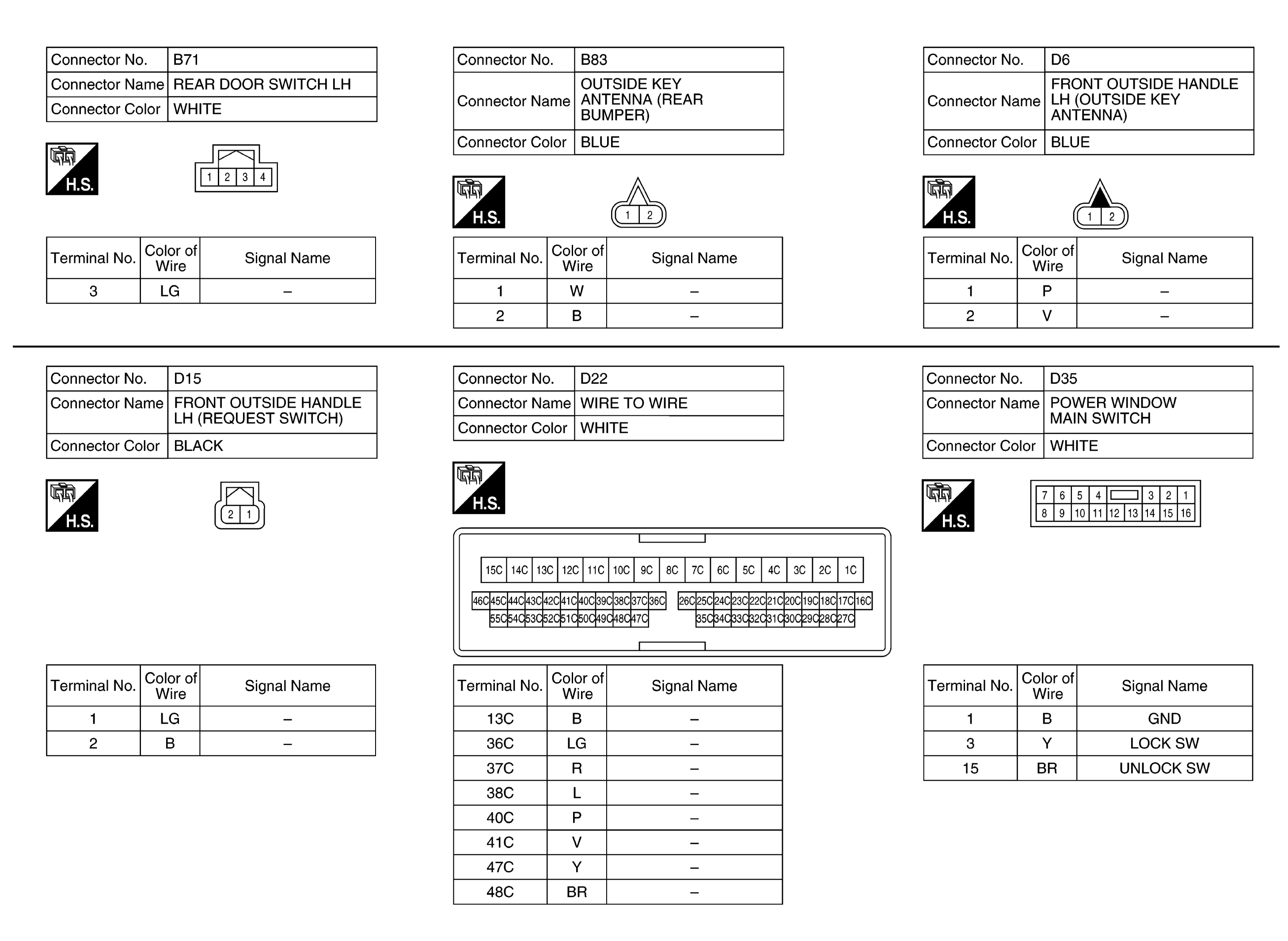

Fig 9: Vehicle Security System Connector End Views (9 Of 10)
G09456322Courtesy of NISSAN NORTH AMERICA, INC.

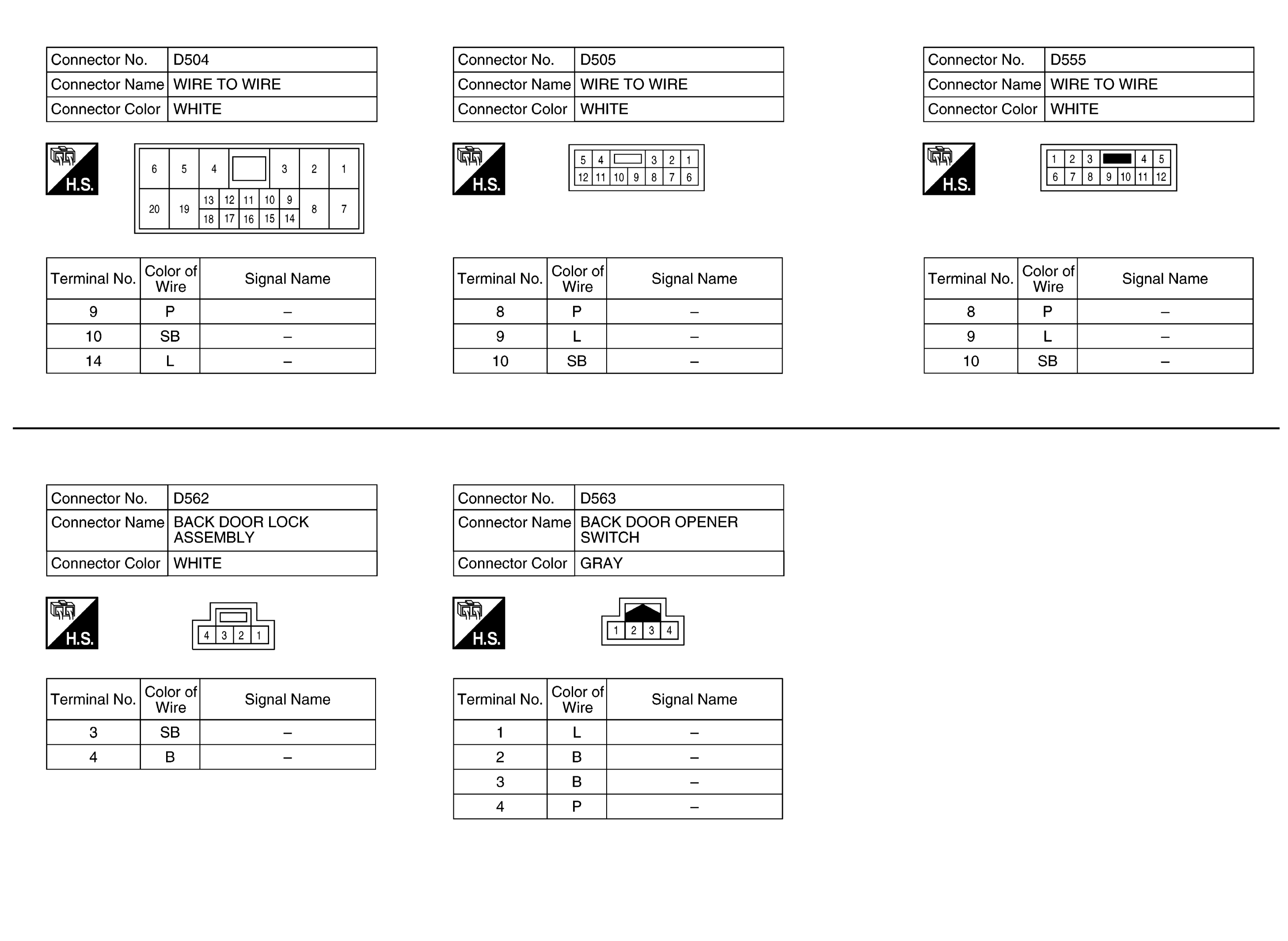

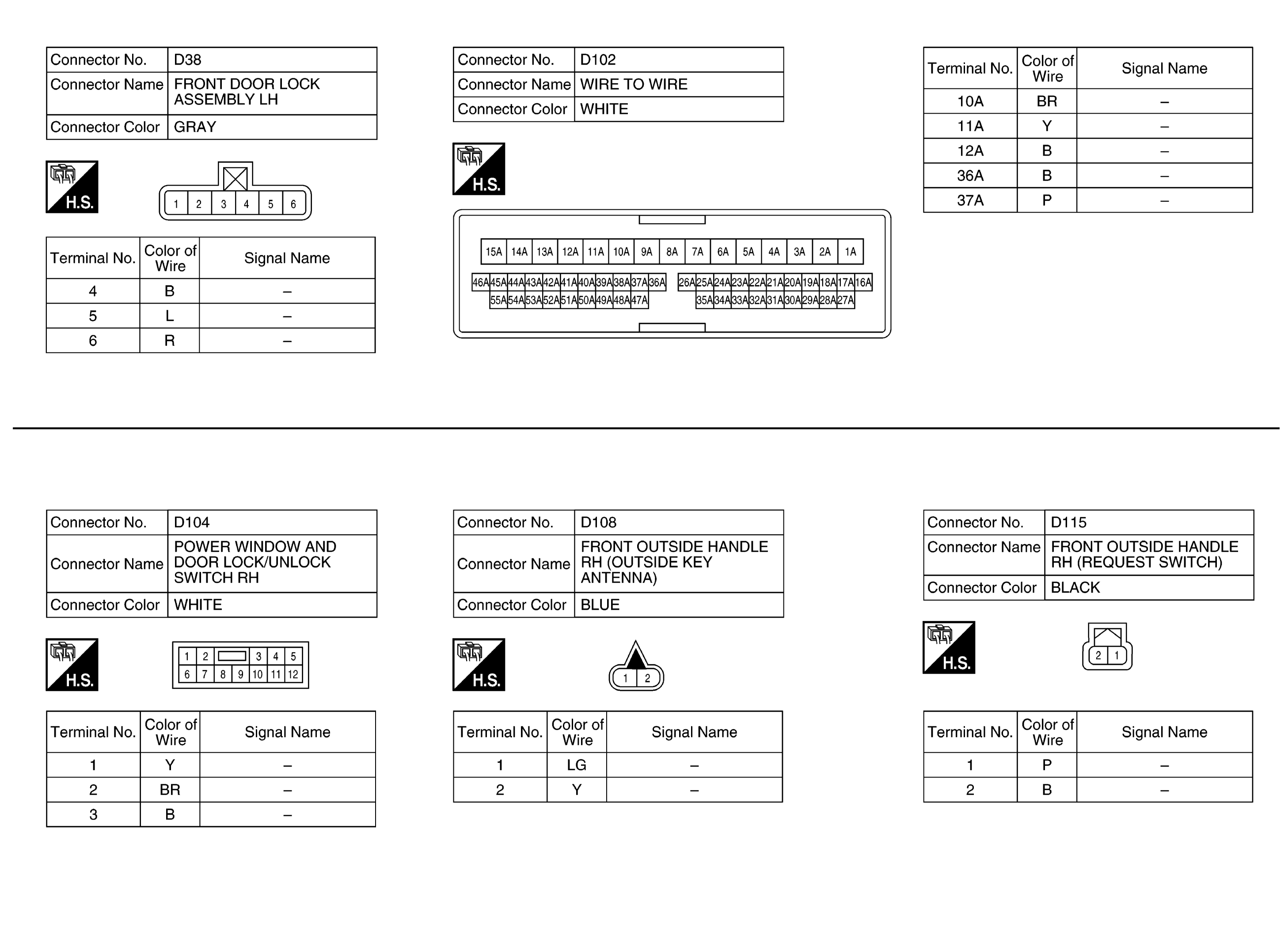

Fig 10: Vehicle Security System Connector End Views (10 Of 10)
G09456323Courtesy of NISSAN NORTH AMERICA, INC.
