Nissan-Datsun
>>
2014
>>
Juke SL, FWD, Automatic CVT Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio, Visual, Navigation System (Integrated Control System)
>>
Wiring Diagram
>>
Integrated Control System
>>
Connector End Views
Connector End Views

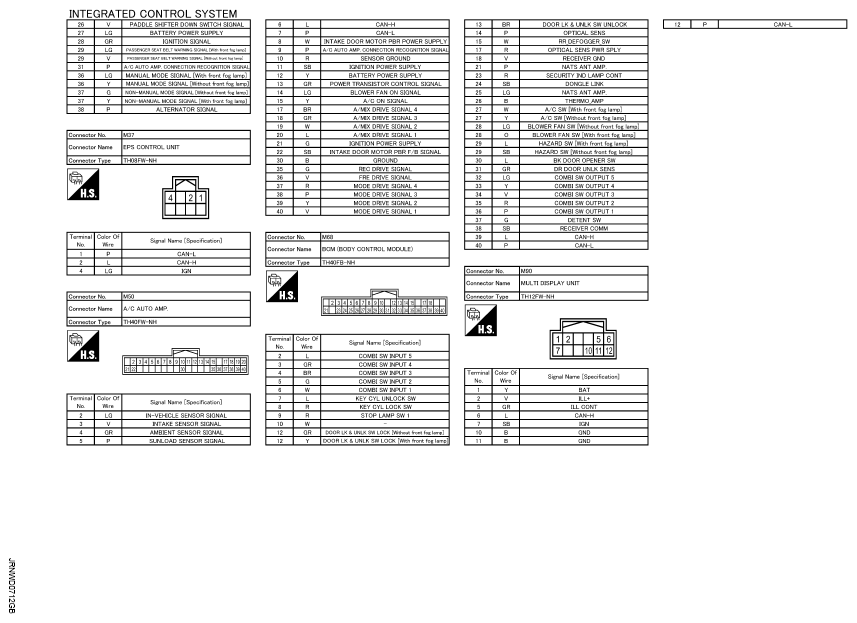

Fig 1: Integrated Control System Connector End Views (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

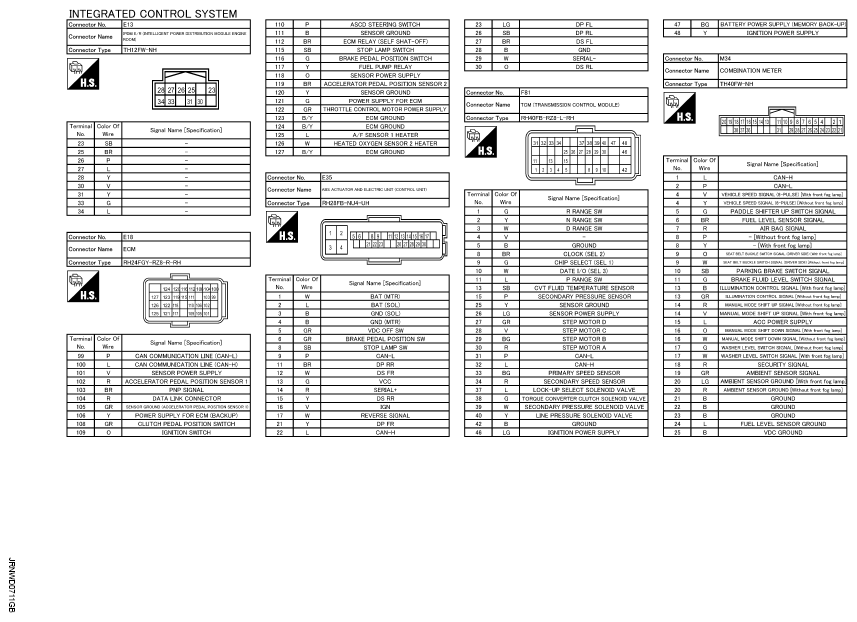

Fig 2: Integrated Control System Connector End Views (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
