Nissan-Datsun
>>
2014
>>
Juke SL, FWD, Automatic CVT Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio, Visual, Navigation System (Integrated Control System)
>>
System Description
>>
System
>>
Integrated Control System
>>
INTEGRATED CONTROL SYSTEM: System Description
>>
System Diagram
System Diagram

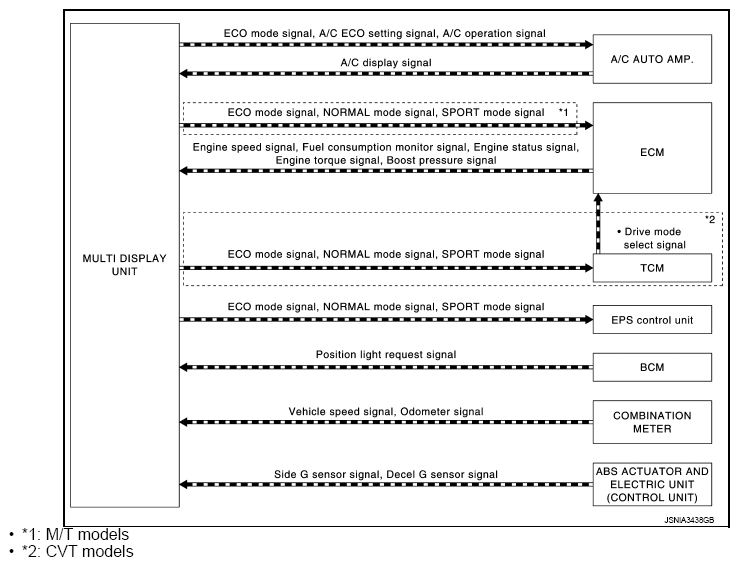

Fig 1: Integrated Control - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
