System Application

BCM can perform the following functions.

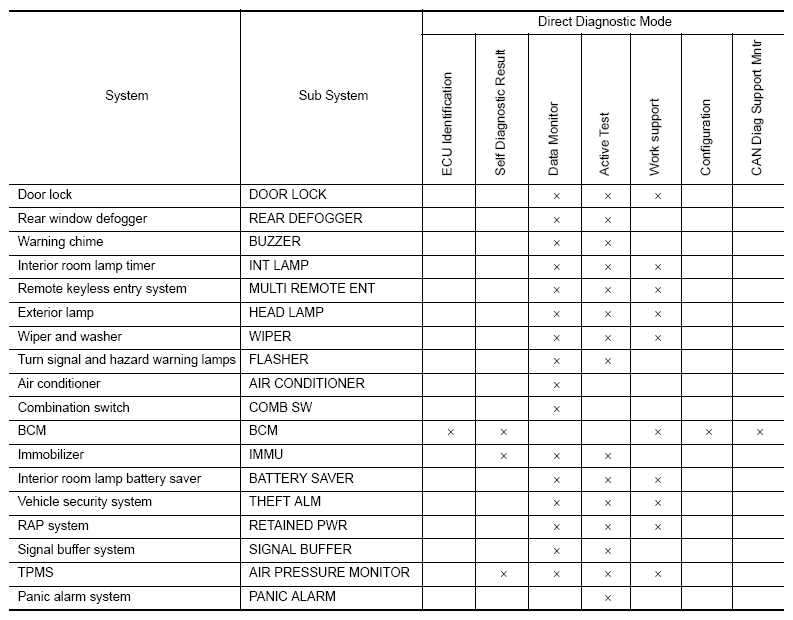

Fig 1: BCM System Application

G09149095

Courtesy of NISSAN NORTH AMERICA, INC.
