Exploded View: Disassembly

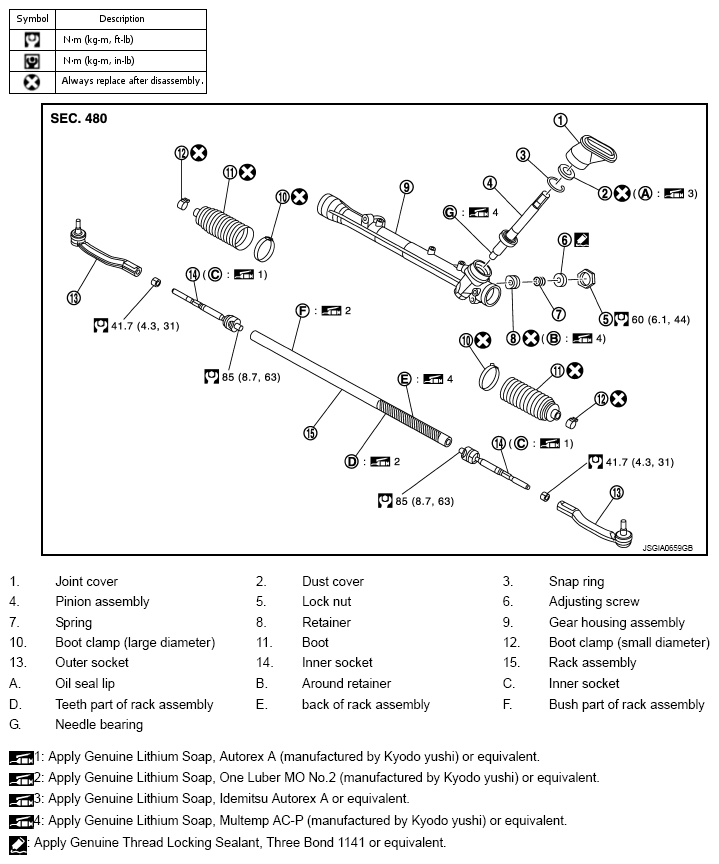

Fig 1: Disassembled View Of Steering Gear And Linkage With Torque Specifications
G09519074Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " and the followings for the symbols in the figure.
