Nissan-Datsun
>>
2014
>>
Cube SL
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Security Control System (With Intelligent Key)
>>
Ecu Diagnosis Information
>>
IPDM E/R (Intelligent Power Distribution Module Engine Room)
>>
Connector End Views
Connector End Views

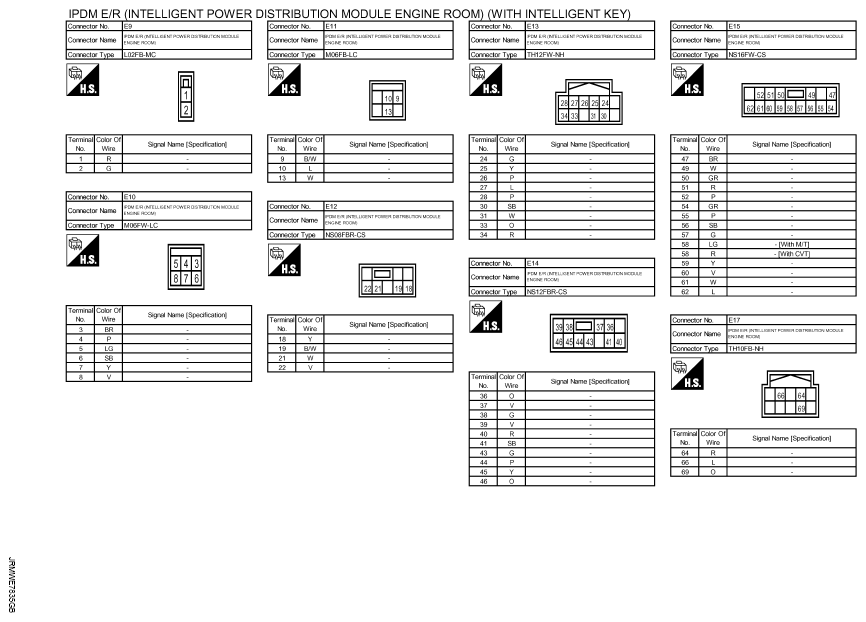

Fig 1: Intelligent Power Distribution Module Engine Room Connector End Views (With Intelligent Key System)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
