Nissan-Datsun
>>
2014
>>
Cube S, Standard Trans
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
SRS Airbag Control System
>>
Ecu Diagnosis Information
>>
Diagnosis Sensor Unit
>>
Connector End Views
Connector End Views

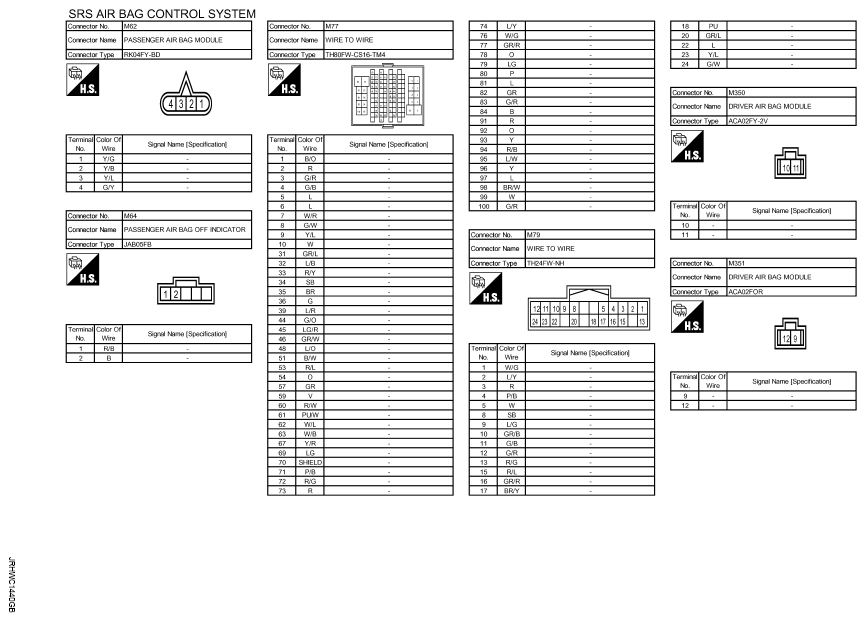

Fig 1: SRS Air Bag Control System Connector End Views (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

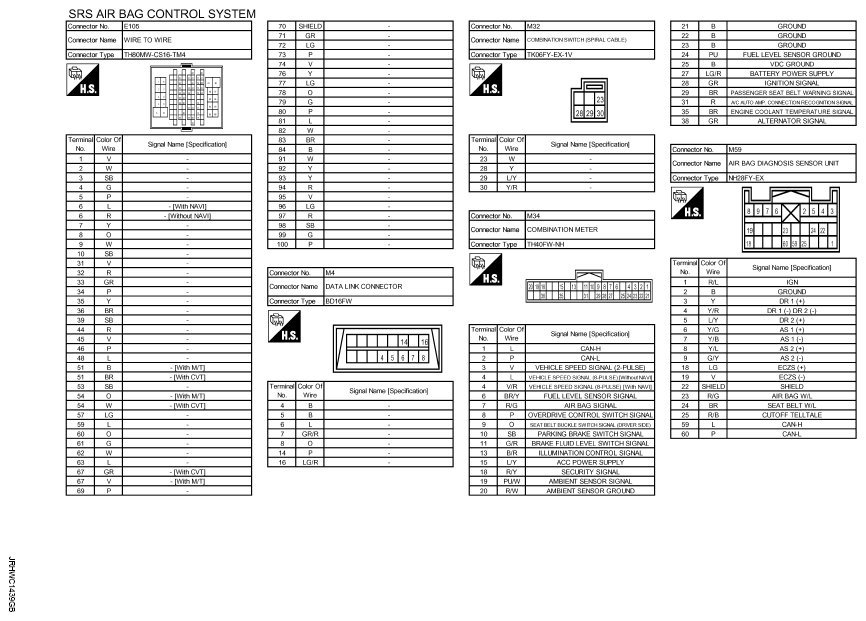

Fig 2: SRS Air Bag Control System Connector End Views (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

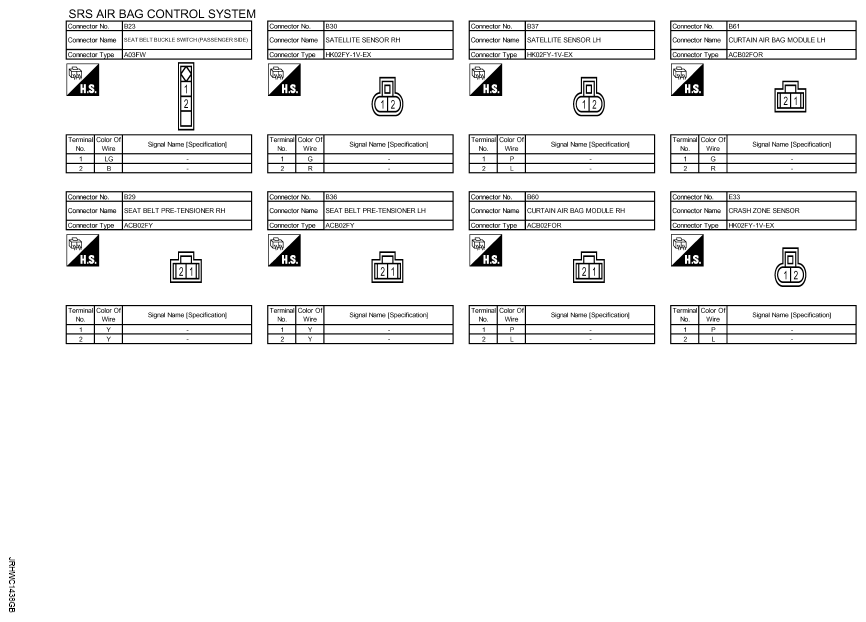

Fig 3: SRS Air Bag Control System Connector End Views (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

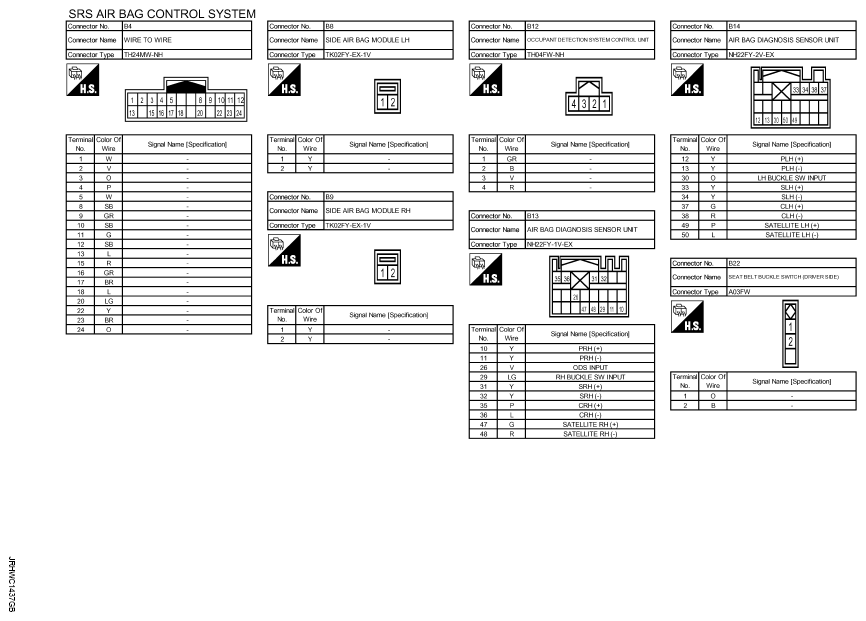

Fig 4: SRS Air Bag Control System Connector End Views (4 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
