Connector End Views

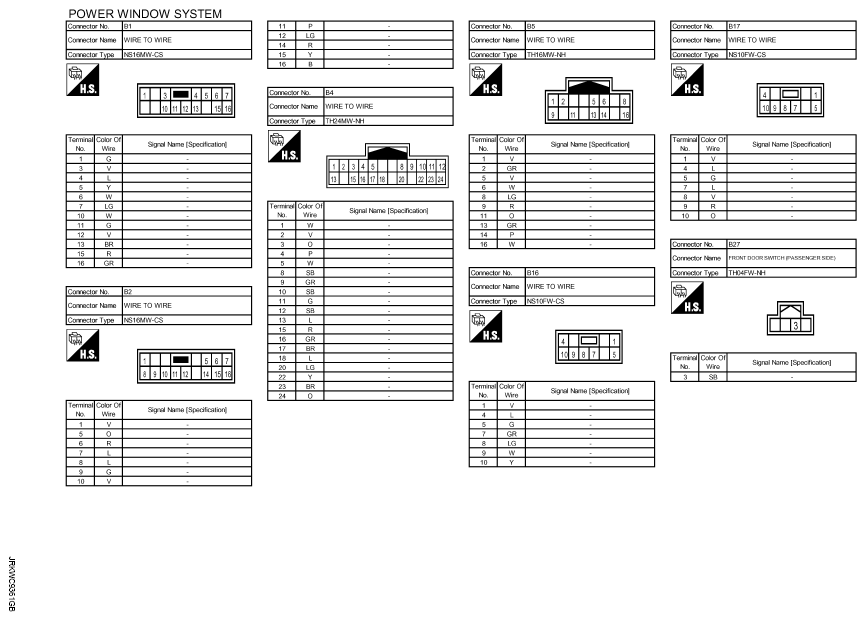

Fig 1: Power Window Control System Connector End Views (1 Of 6)
G09520318Courtesy of NISSAN NORTH AMERICA, INC.

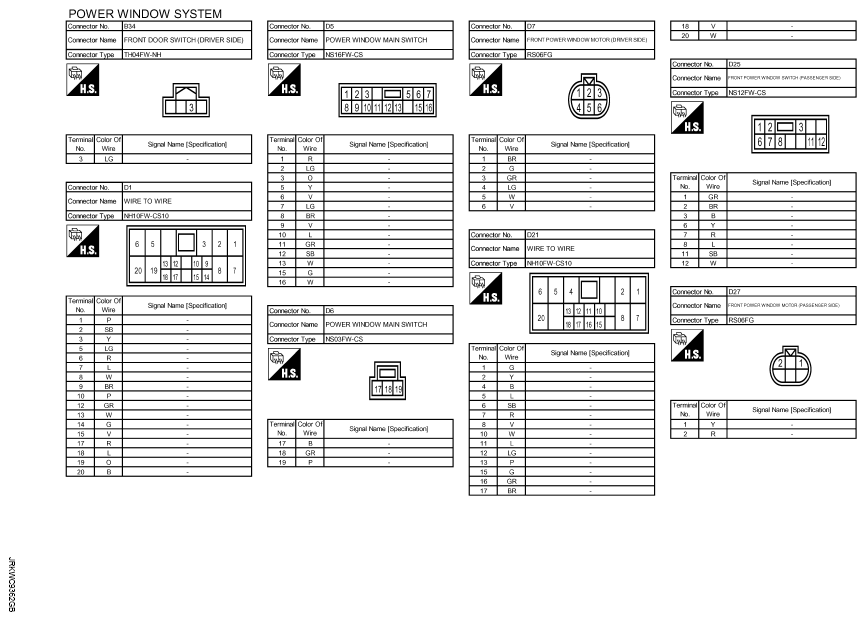

Fig 2: Power Window Control System Connector End Views (2 Of 6)
G09520319Courtesy of NISSAN NORTH AMERICA, INC.

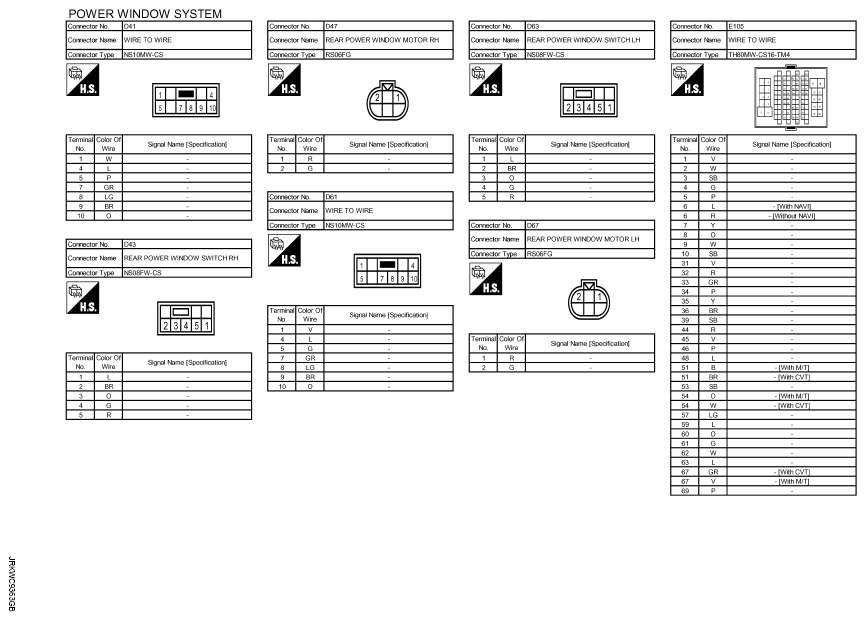

Fig 3: Power Window Control System Connector End Views (3 Of 6)
G09520320Courtesy of NISSAN NORTH AMERICA, INC.

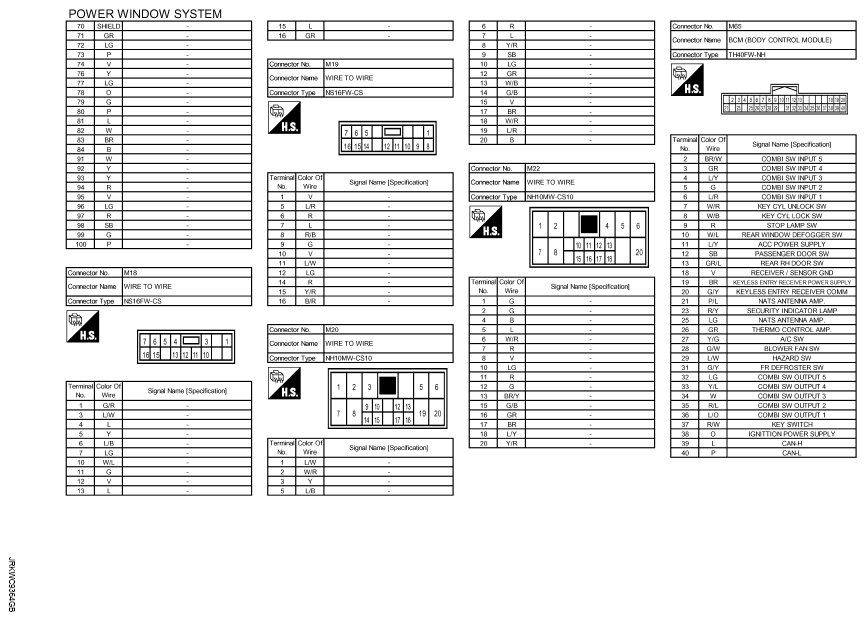

Fig 4: Power Window Control System Connector End Views (4 Of 6)
G09520321Courtesy of NISSAN NORTH AMERICA, INC.

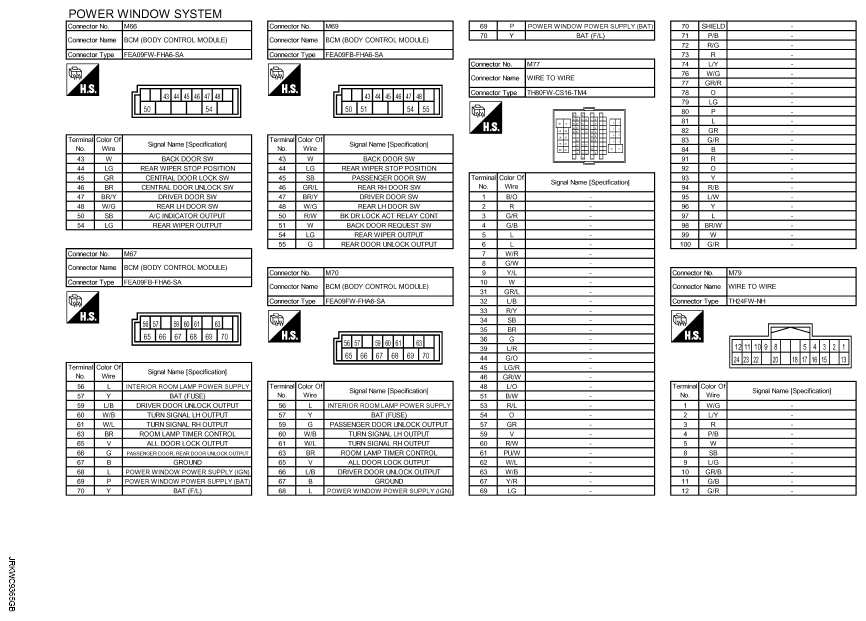

Fig 5: Power Window Control System Connector End Views (5 Of 6)
G09520322Courtesy of NISSAN NORTH AMERICA, INC.

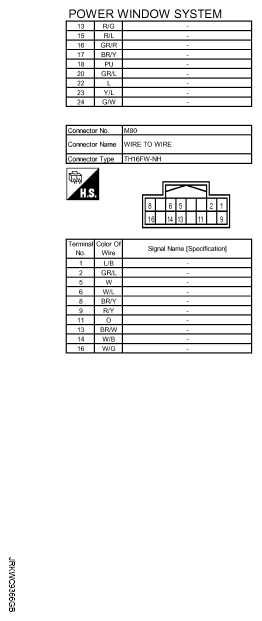

Fig 6: Power Window Control System Connector End Views (6 Of 6)
G09520323Courtesy of NISSAN NORTH AMERICA, INC.
