Connector End Views

WARNING: This page is about a different variant/trim than selected.

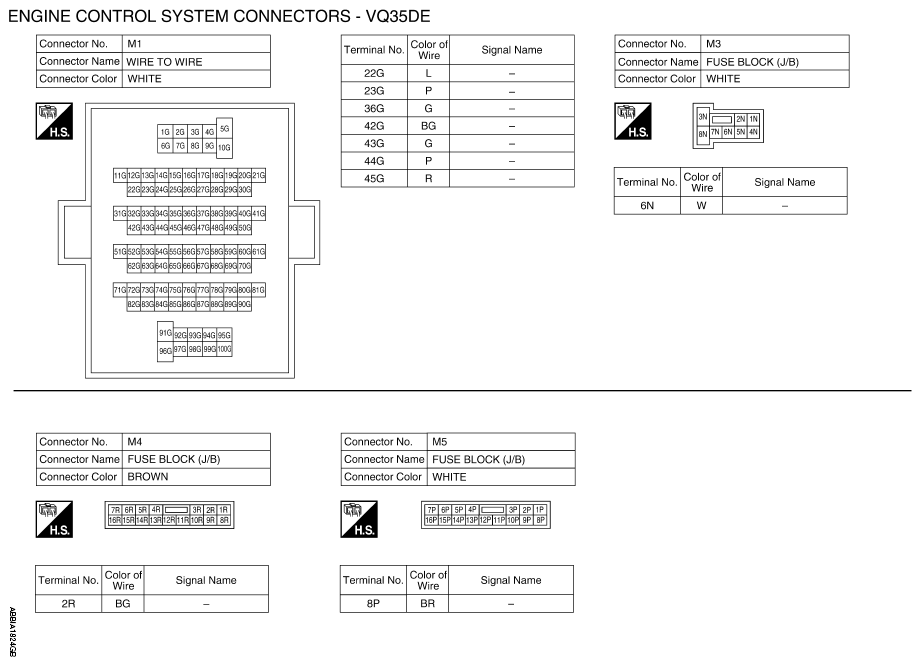

Fig 1: Engine Control System Connector End Views - VQ35DE (1 Of 20)

G09140456

Courtesy of NISSAN NORTH AMERICA, INC.

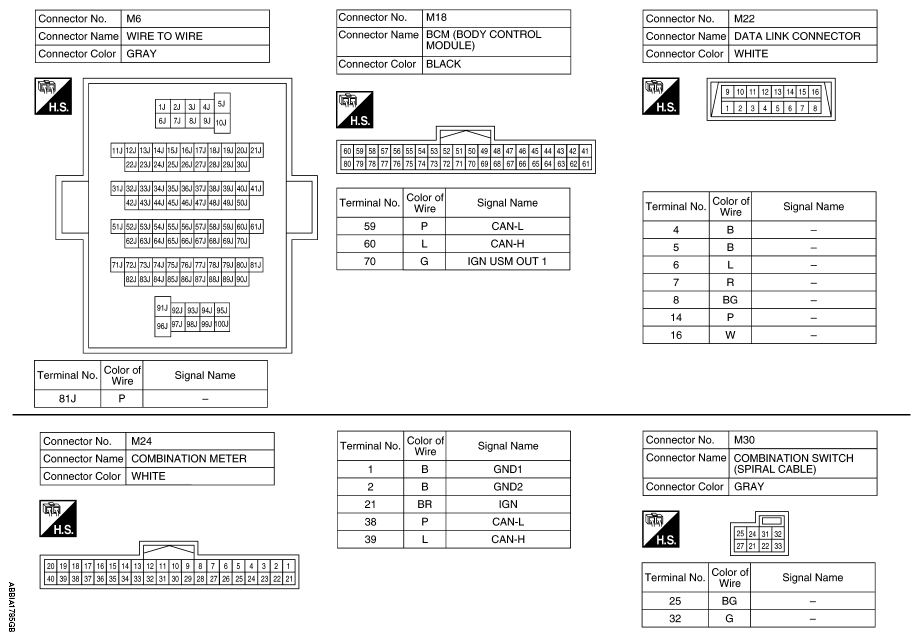

Fig 2: Engine Control System Connector End Views - VQ35DE (2 Of 20)

G09140457

Courtesy of NISSAN NORTH AMERICA, INC.

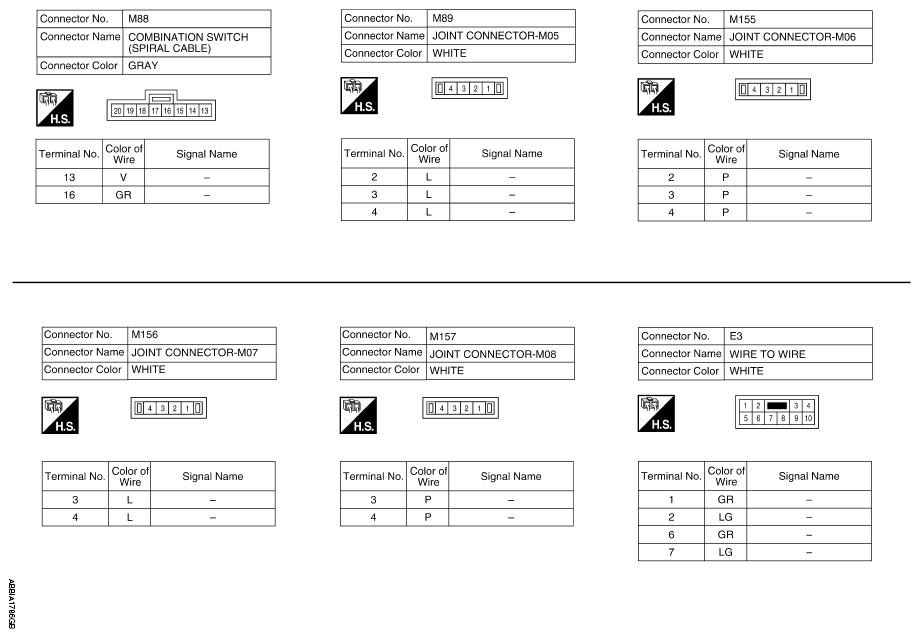

Fig 3: Engine Control System Connector End Views - VQ35DE (3 Of 20)

G09140458

Courtesy of NISSAN NORTH AMERICA, INC.

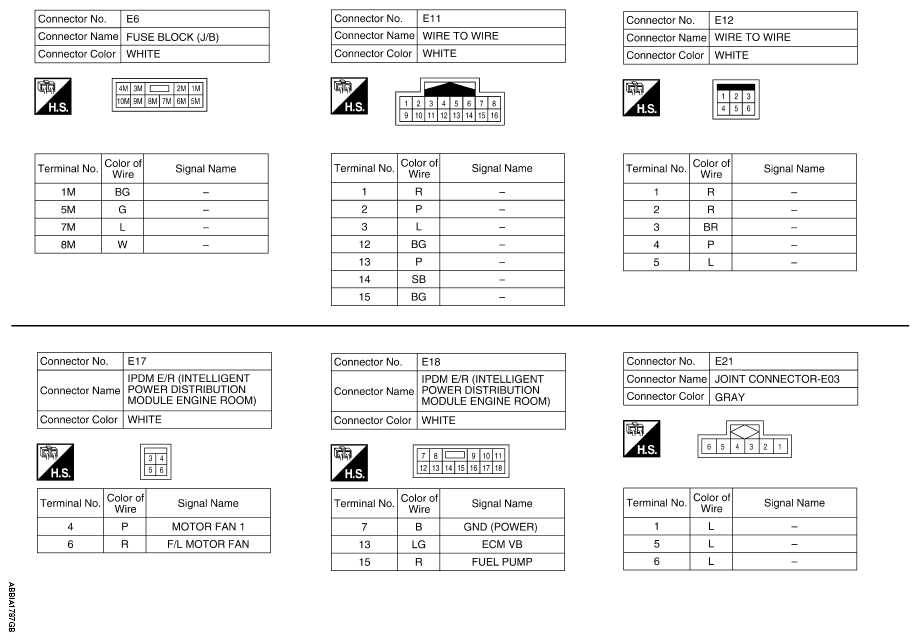

Fig 4: Engine Control System Connector End Views - VQ35DE (4 Of 20)

G09140459

Courtesy of NISSAN NORTH AMERICA, INC.

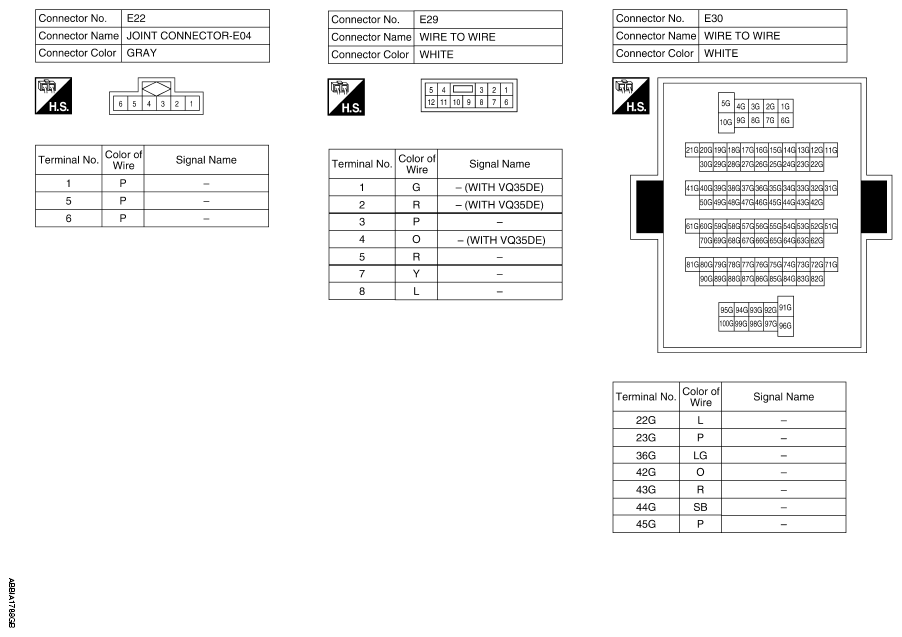

Fig 5: Engine Control System Connectors Terminals - VQ35DE (5 Of 20)

G09140460

Courtesy of NISSAN NORTH AMERICA, INC.

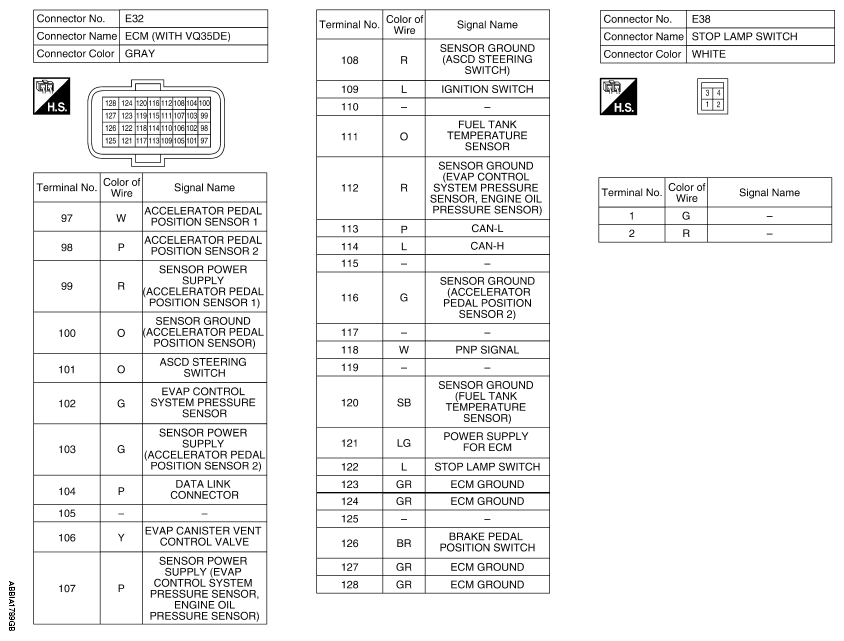

Fig 6: Engine Control System Connectors Terminals - VQ35DE (6 Of 20)

G09140461

Courtesy of NISSAN NORTH AMERICA, INC.

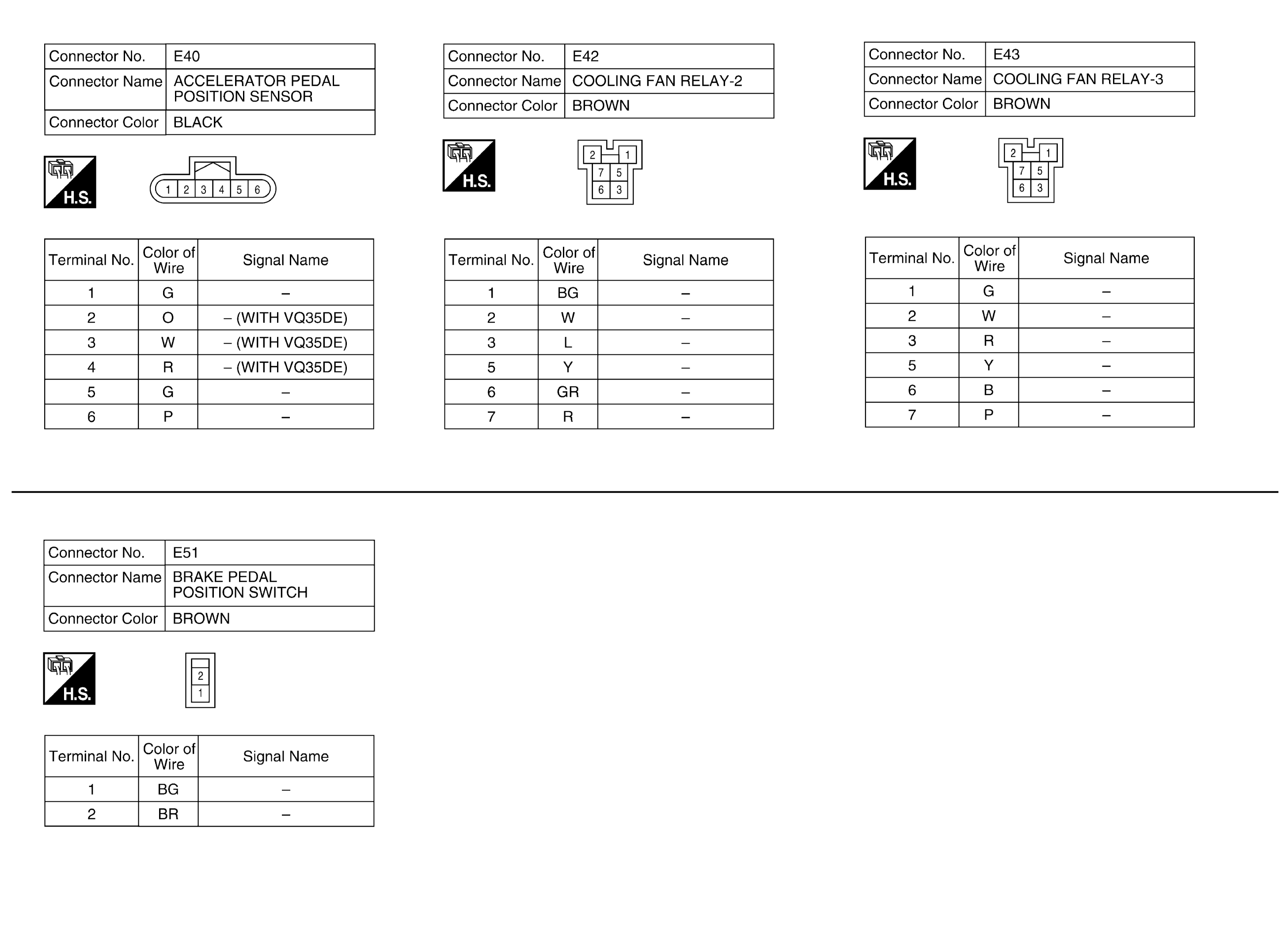

Fig 7: Engine Control System Connectors Terminals - VQ35DE (7 Of 20)

G09140462

Courtesy of NISSAN NORTH AMERICA, INC.

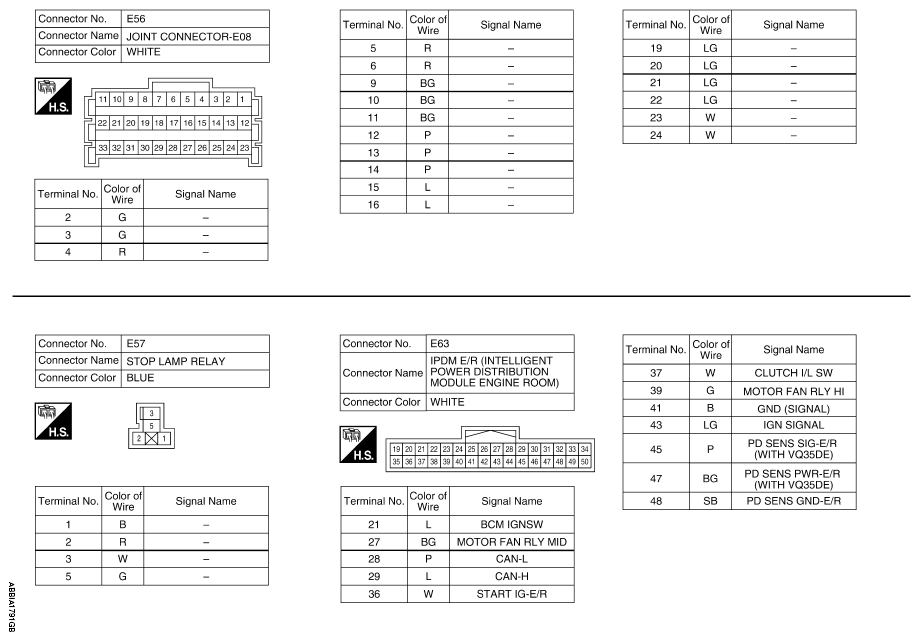

Fig 8: Engine Control System Connectors Terminals - VQ35DE (8 Of 20)

G09140463

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Engine Control System Connectors Terminals - VQ35DE (9 Of 20)

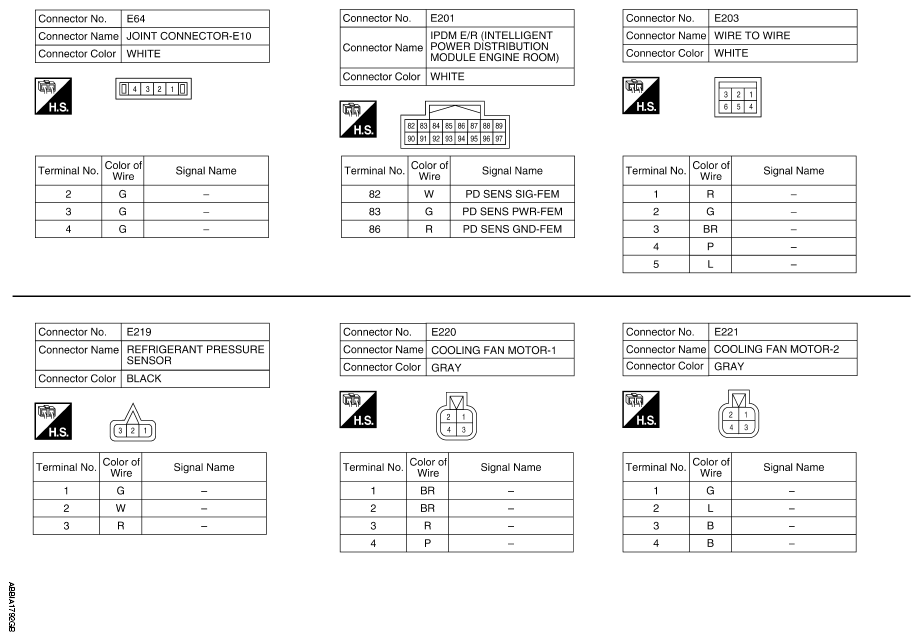

G09140464

Courtesy of NISSAN NORTH AMERICA, INC.

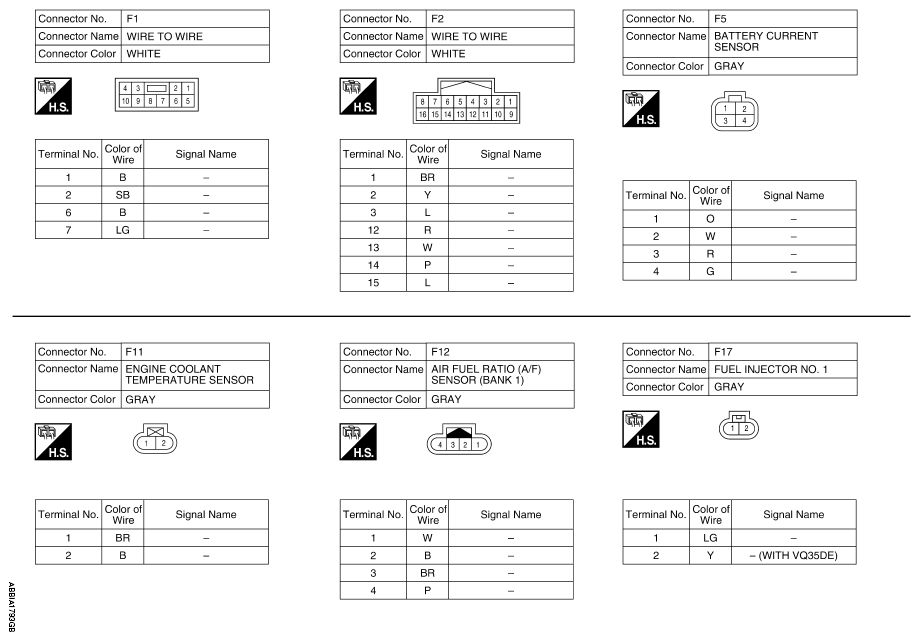

Fig 10: Engine Control System Connectors Terminals - VQ35DE (10 Of 20)

G09140465

Courtesy of NISSAN NORTH AMERICA, INC.

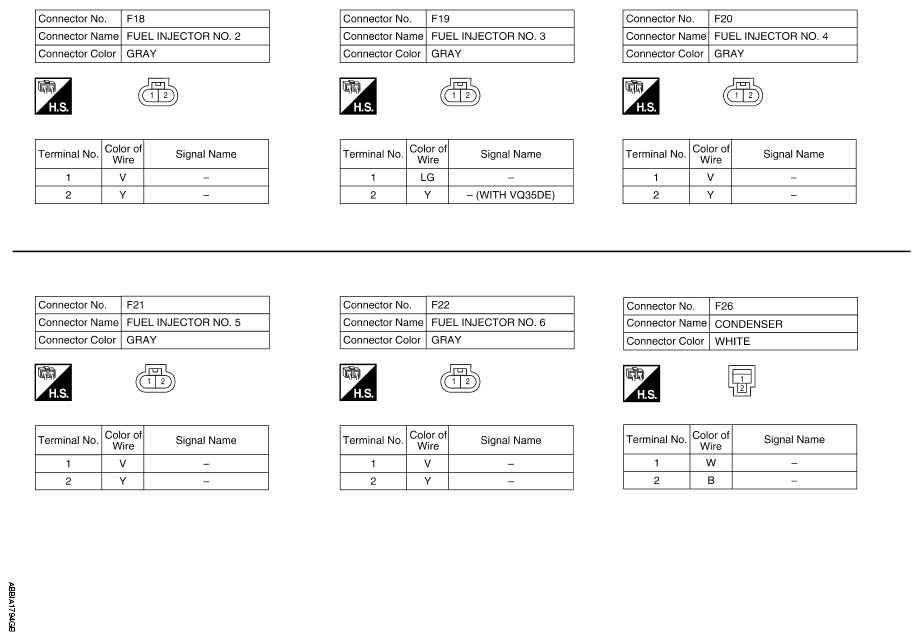

Fig 11: Engine Control System Connectors Terminals - VQ35DE (11 Of 20)

G09140466

Courtesy of NISSAN NORTH AMERICA, INC.

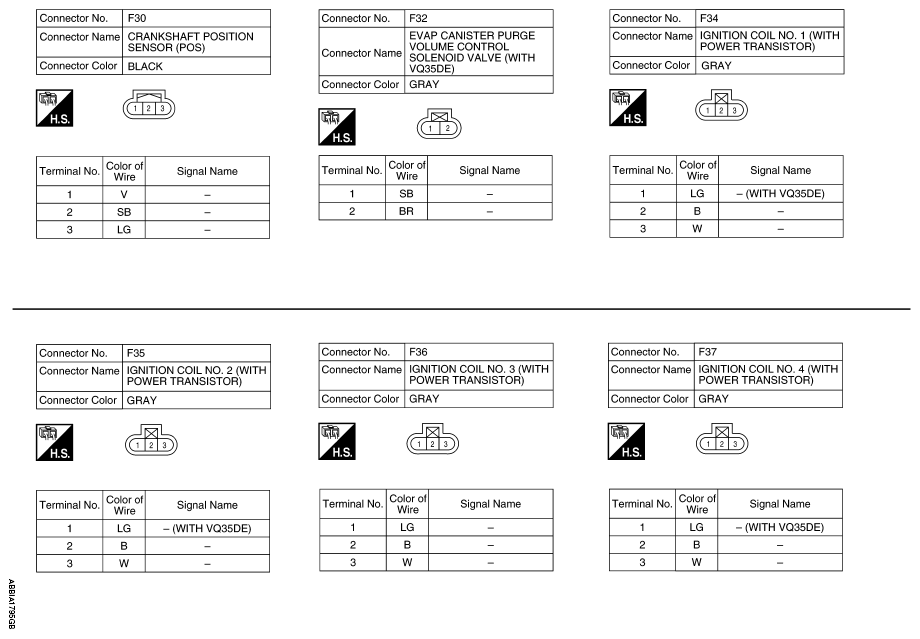

Fig 12: Engine Control System Connectors Terminals - VQ35DE (12 Of 20)

G09140467

Courtesy of NISSAN NORTH AMERICA, INC.

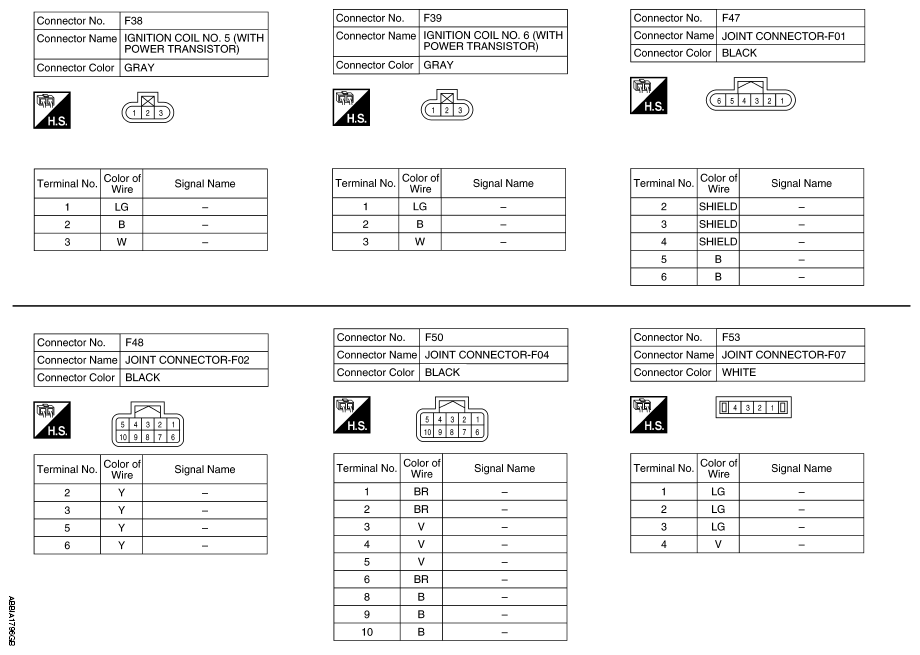

Fig 13: Engine Control System Connectors Terminals - VQ35DE (13 Of 20)

G09140468

Courtesy of NISSAN NORTH AMERICA, INC.

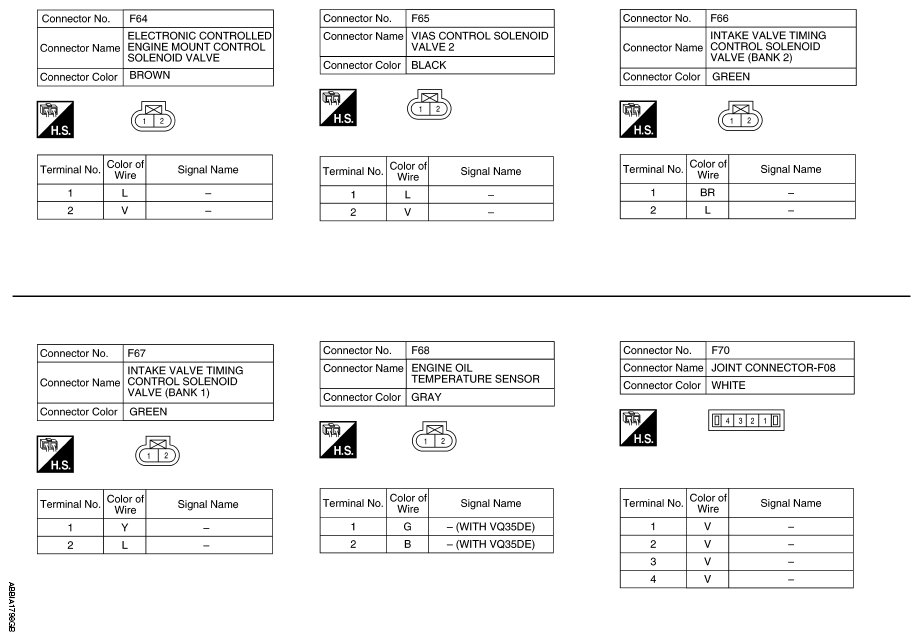

Fig 14: Engine Control System Connectors Terminals - VQ35DE (14 Of 20)

G09140469

Courtesy of NISSAN NORTH AMERICA, INC.

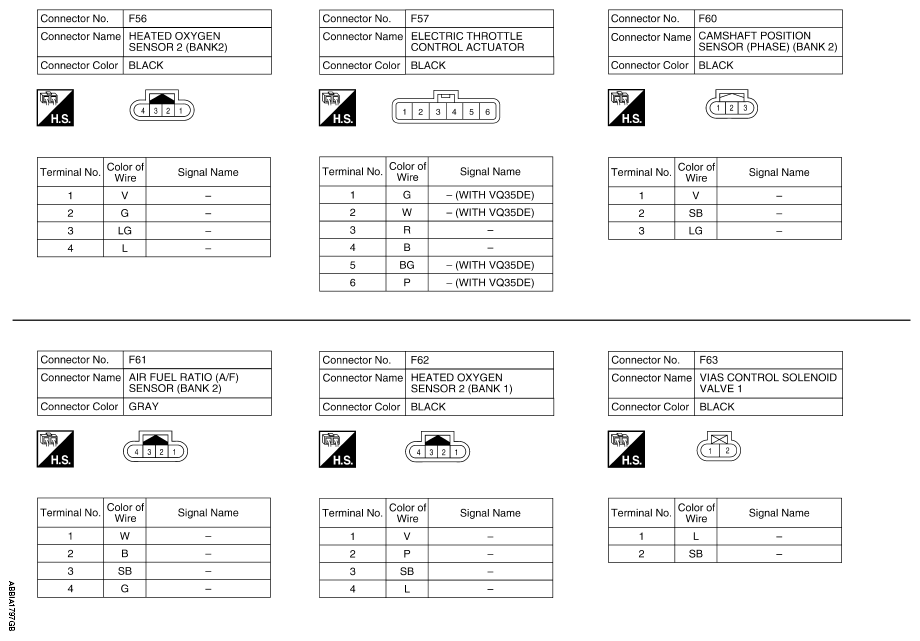

Fig 15: Engine Control System Connectors Terminals - VQ35DE (15 Of 20)

G09140470

Courtesy of NISSAN NORTH AMERICA, INC.

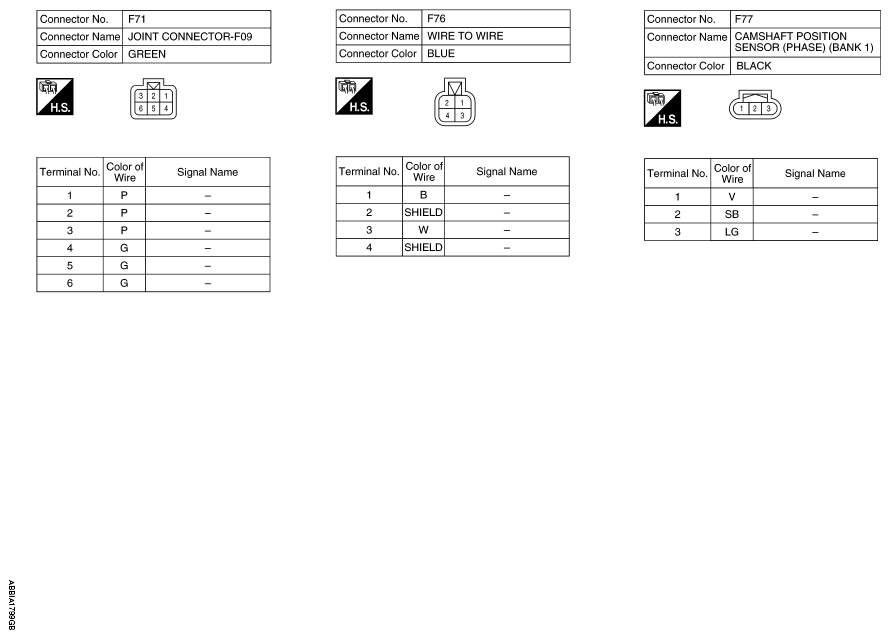

Fig 16: Engine Control System Connectors Terminals - VQ35DE (16 Of 20)

G09140471

Courtesy of NISSAN NORTH AMERICA, INC.

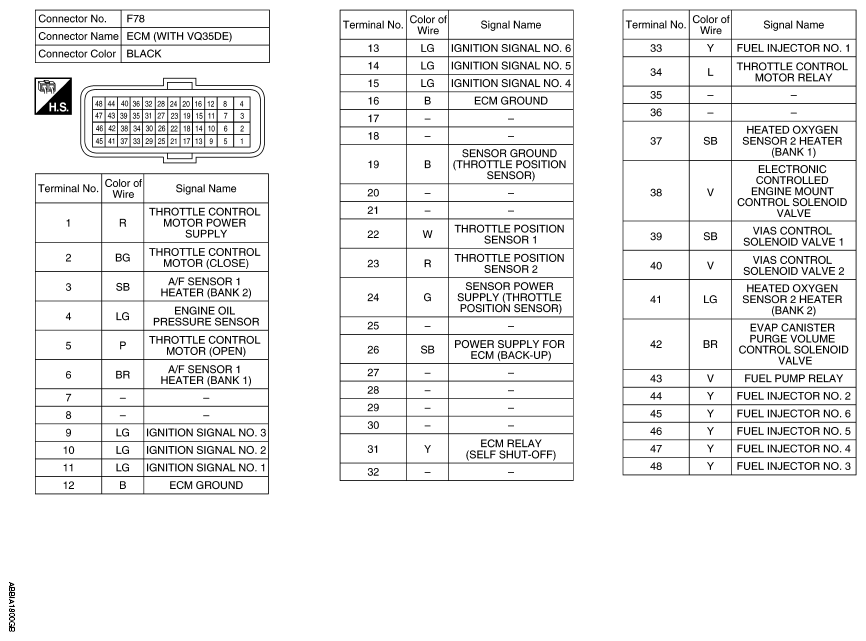

Fig 17: Engine Control System Connectors Terminals - VQ35DE (17 Of 20)

G09140472

Courtesy of NISSAN NORTH AMERICA, INC.

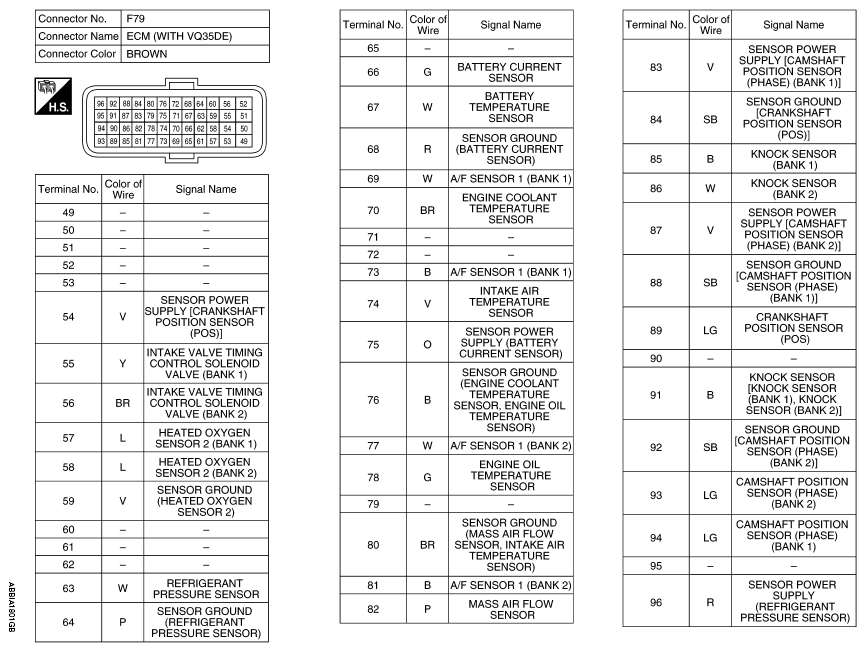

Fig 18: Engine Control System Connectors Terminals - VQ35DE (18 Of 20)

G09140473

Courtesy of NISSAN NORTH AMERICA, INC.

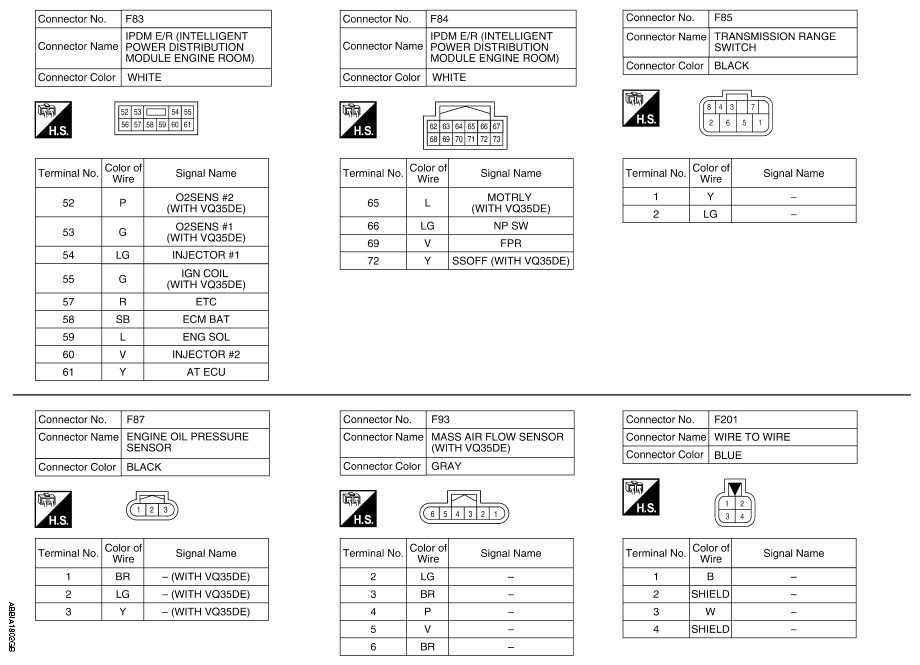

Fig 19: Engine Control System Connectors Terminals - VQ35DE (19 Of 20)

G09140474

Courtesy of NISSAN NORTH AMERICA, INC.

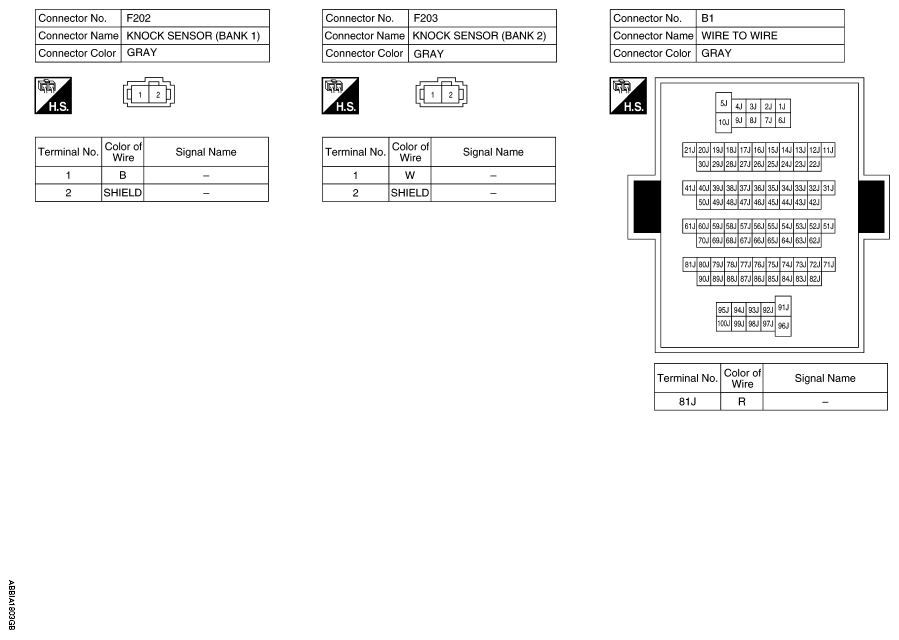

Fig 20: Engine Control System Connectors Terminals - VQ35DE (20 Of 20)

G09140475

Courtesy of NISSAN NORTH AMERICA, INC.
