Electronic Controlled Engine Mount Line Drawing

WARNING: This page is about a different variant/trim than selected.

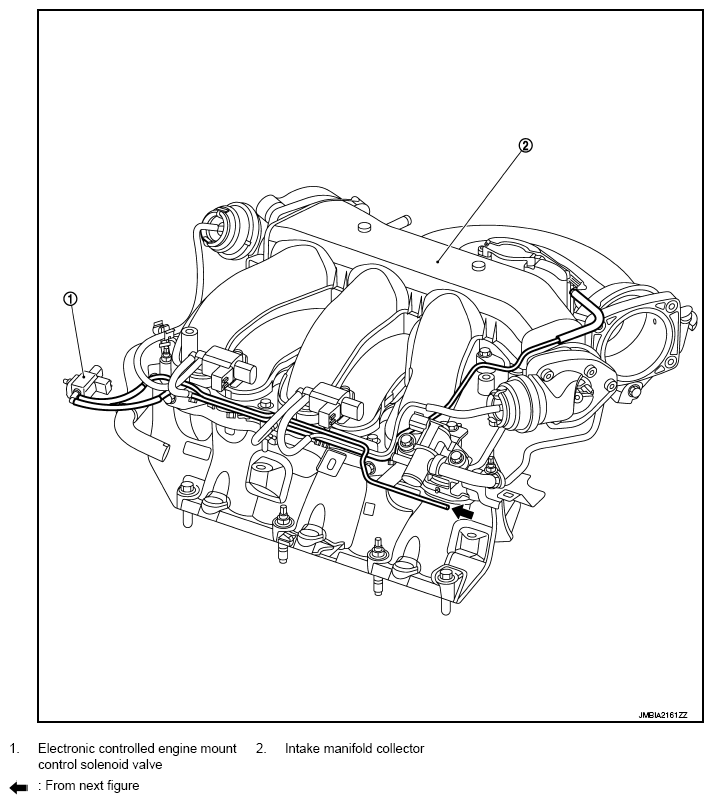

Fig 1: Identifying Electronic Controlled Engine Mount Control Solenoid Valve, Intake Manifold Collector
G09140403Courtesy of NISSAN NORTH AMERICA, INC.

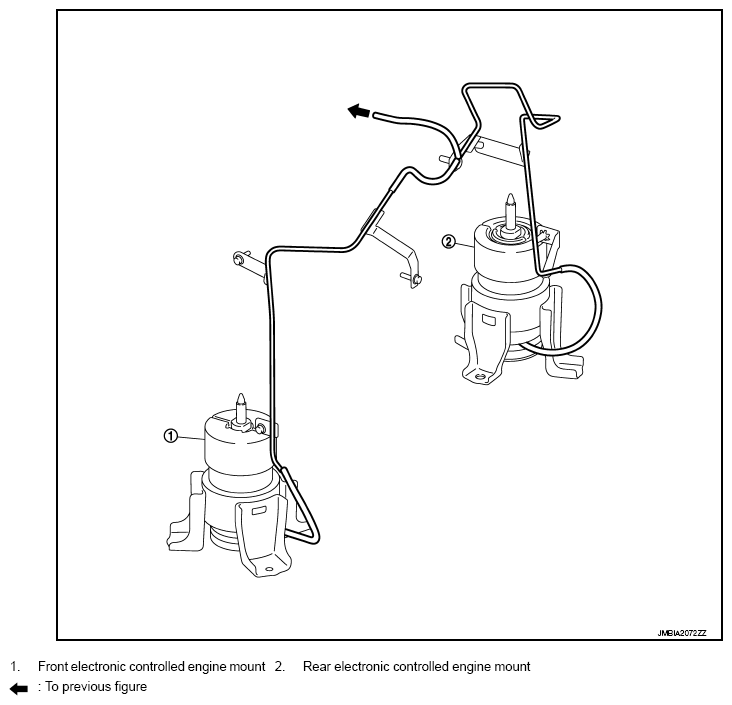

Fig 2: Identifying Front And Rear Electronic Controlled Engine Mount
G09140404Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: Do not use soapy water or any type of solvent while installing vacuum hose.
