Connector End Views

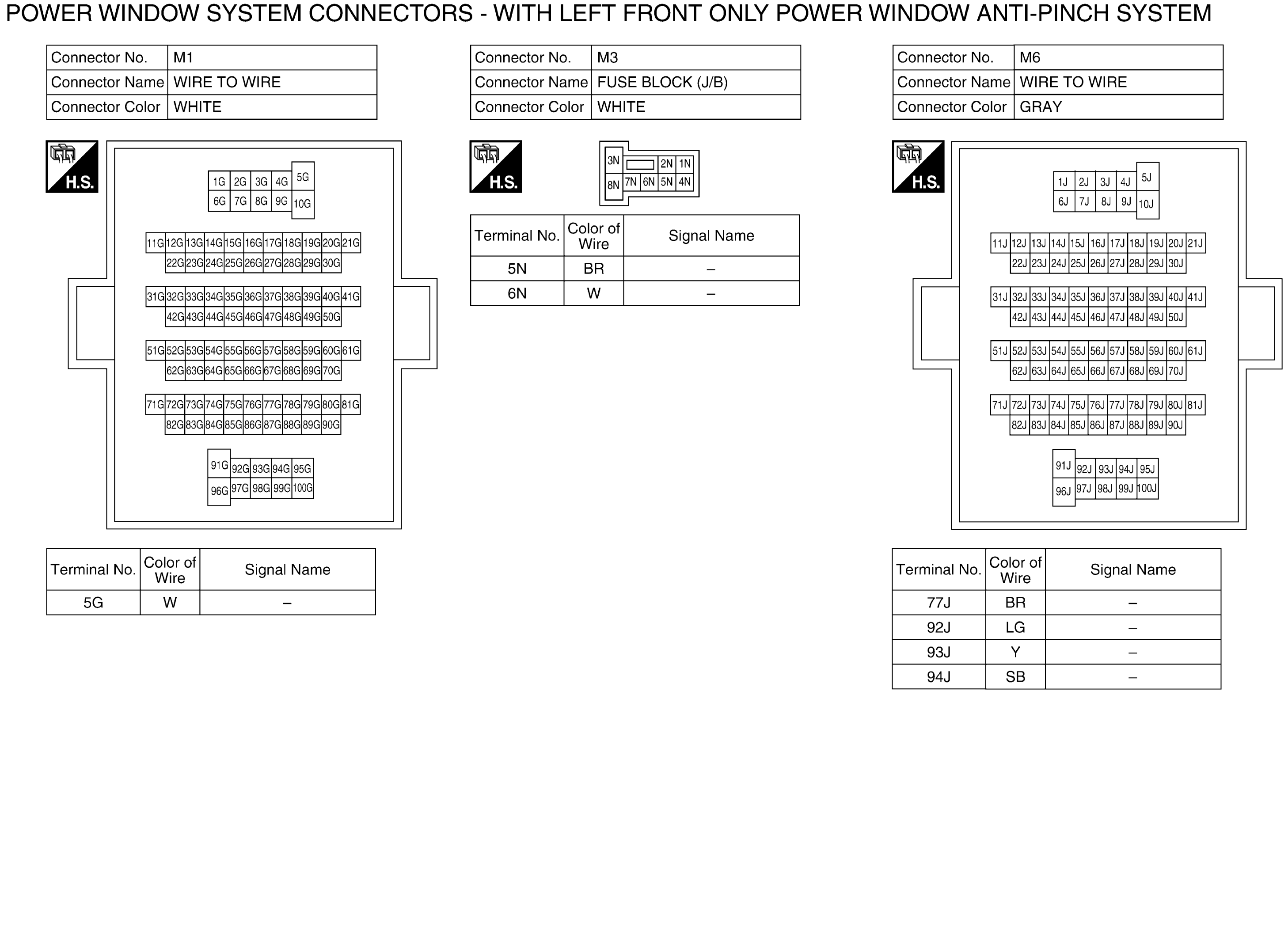

Fig 1: Power Window (With Left Front Only Power Window Anti-Pinch) Connector End Views (1 Of 6)
G08686844Courtesy of NISSAN NORTH AMERICA, INC.

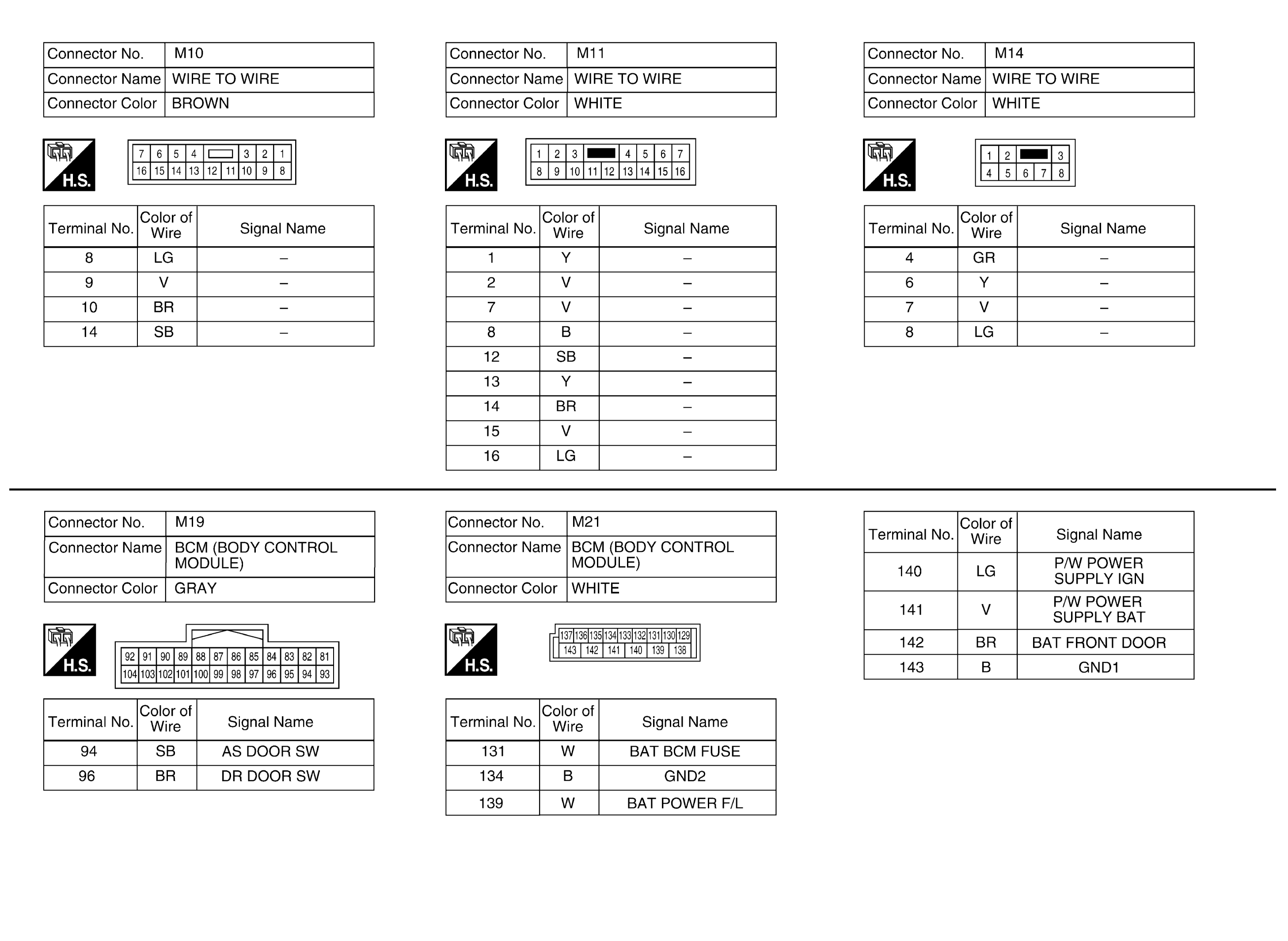

Fig 2: Power Window (With Left Front Only Power Window Anti-Pinch) Connector End Views (2 Of 6)
G08686845Courtesy of NISSAN NORTH AMERICA, INC.

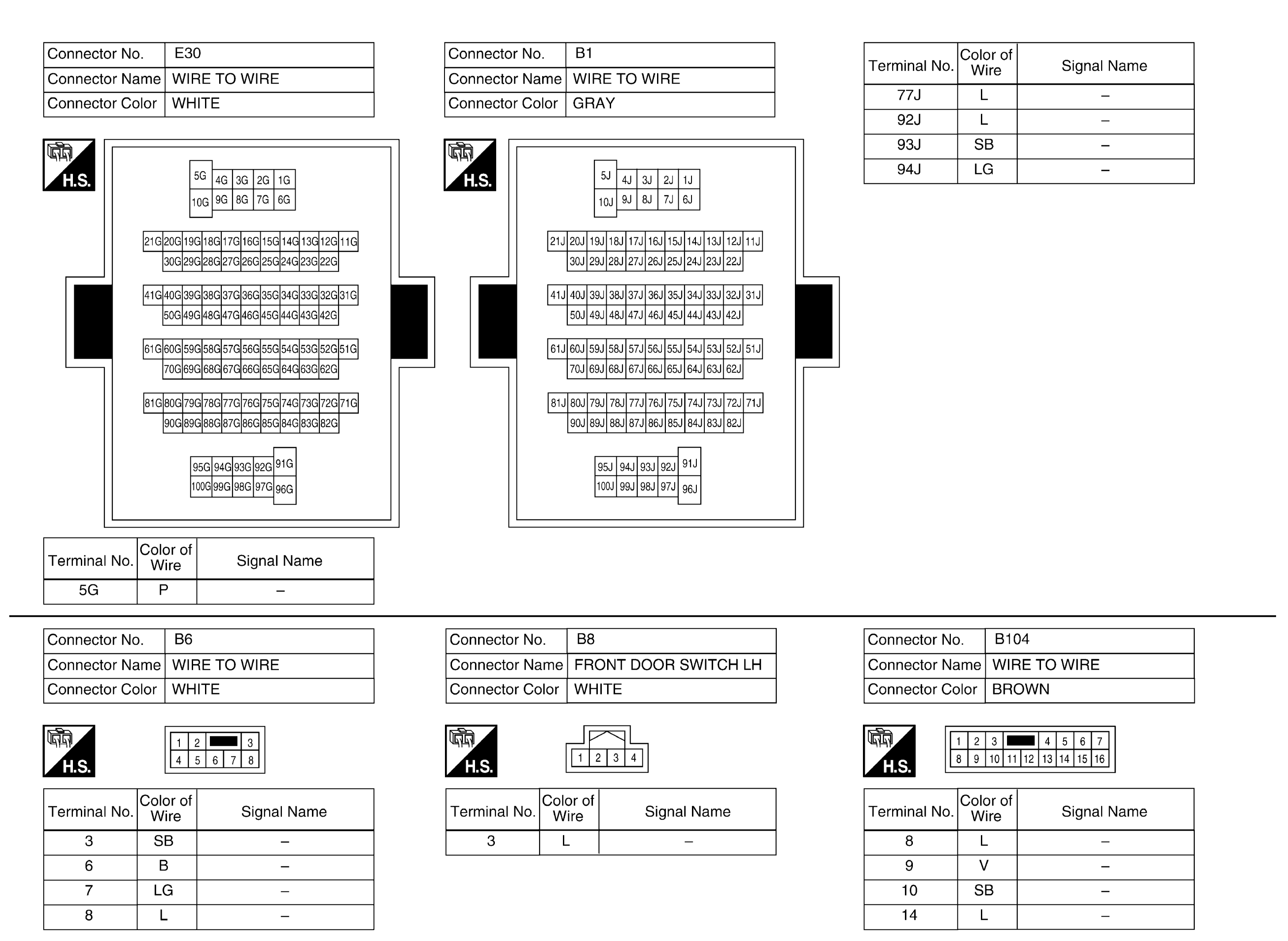

Fig 3: Power Window (With Left Front Only Power Window Anti-Pinch) Connector End Views (3 Of 6)
G08686846Courtesy of NISSAN NORTH AMERICA, INC.

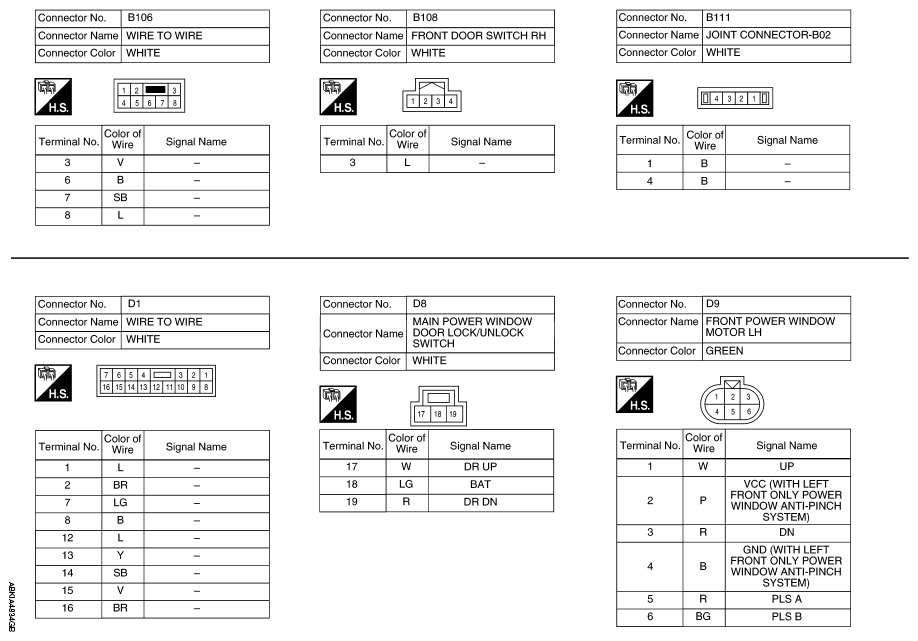

Fig 4: Power Window (With Left Front Only Power Window Anti-Pinch) Connector End Views (4 Of 6)
G09142191Courtesy of NISSAN NORTH AMERICA, INC.

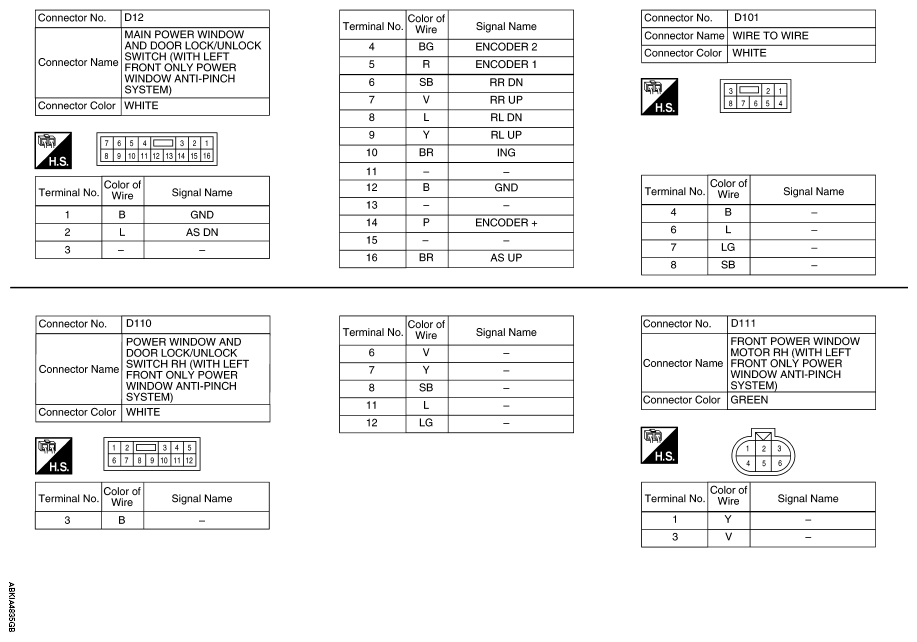

Fig 5: Power Window (With Left Front Only Power Window Anti-Pinch) Connector End Views (5 Of 6)
G09142192Courtesy of NISSAN NORTH AMERICA, INC.

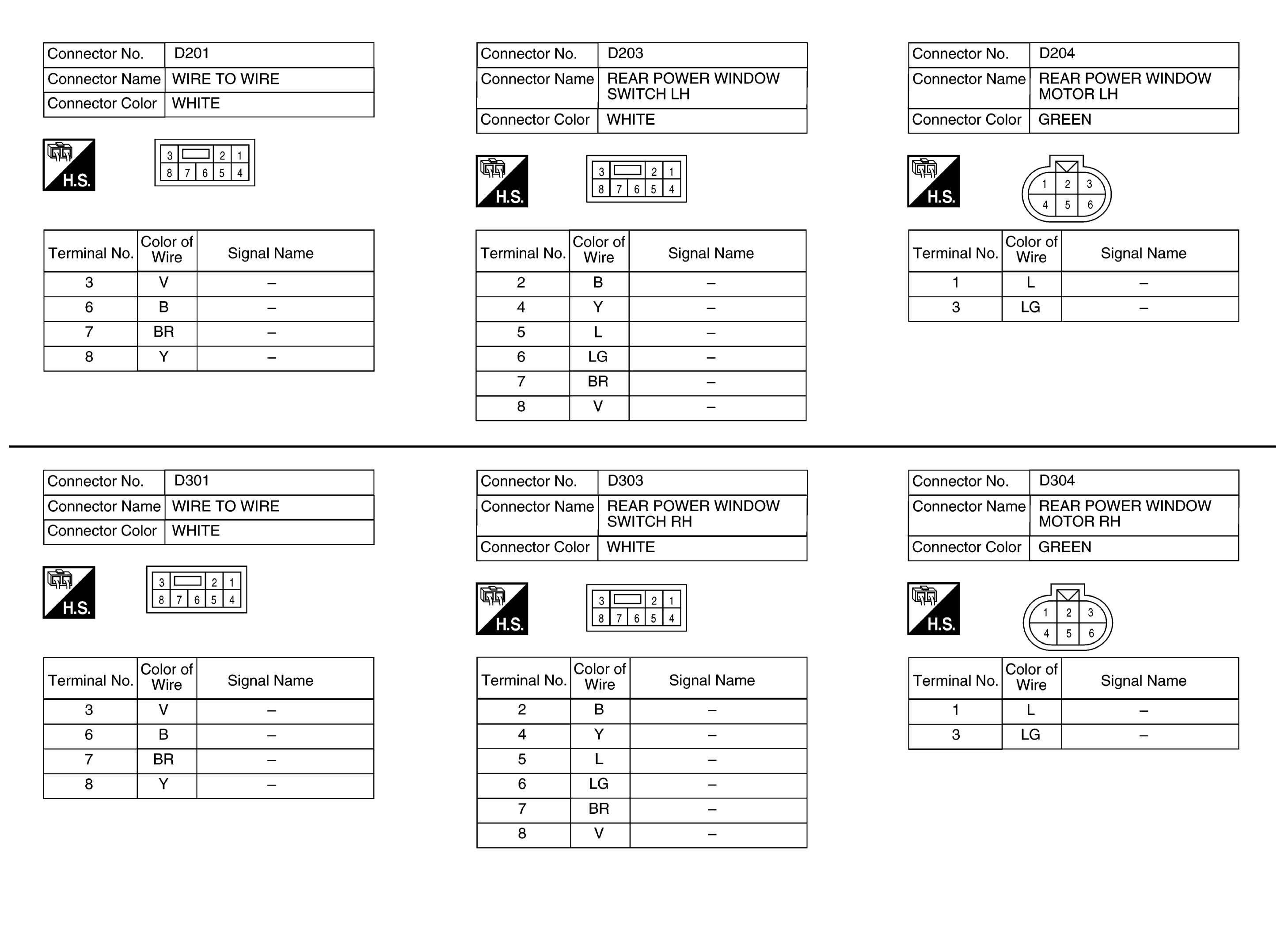

Fig 6: Power Window (With Left Front Only Power Window Anti-Pinch) Connector End Views (6 Of 6)
G09142193Courtesy of NISSAN NORTH AMERICA, INC.
