DRIVER SIDE: Exploded View

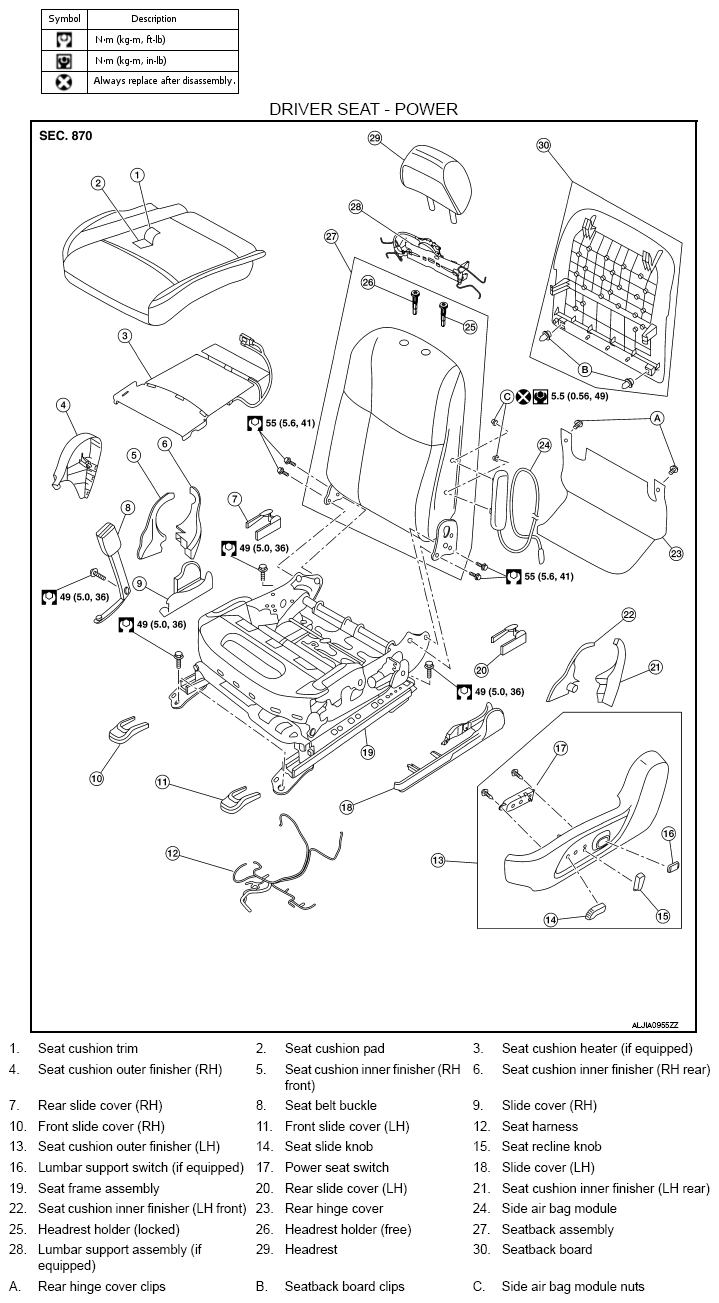

Fig 1: Exploded View Of Front Power Driver Seat With Torque Specifications
G09141765Courtesy of NISSAN NORTH AMERICA, INC.

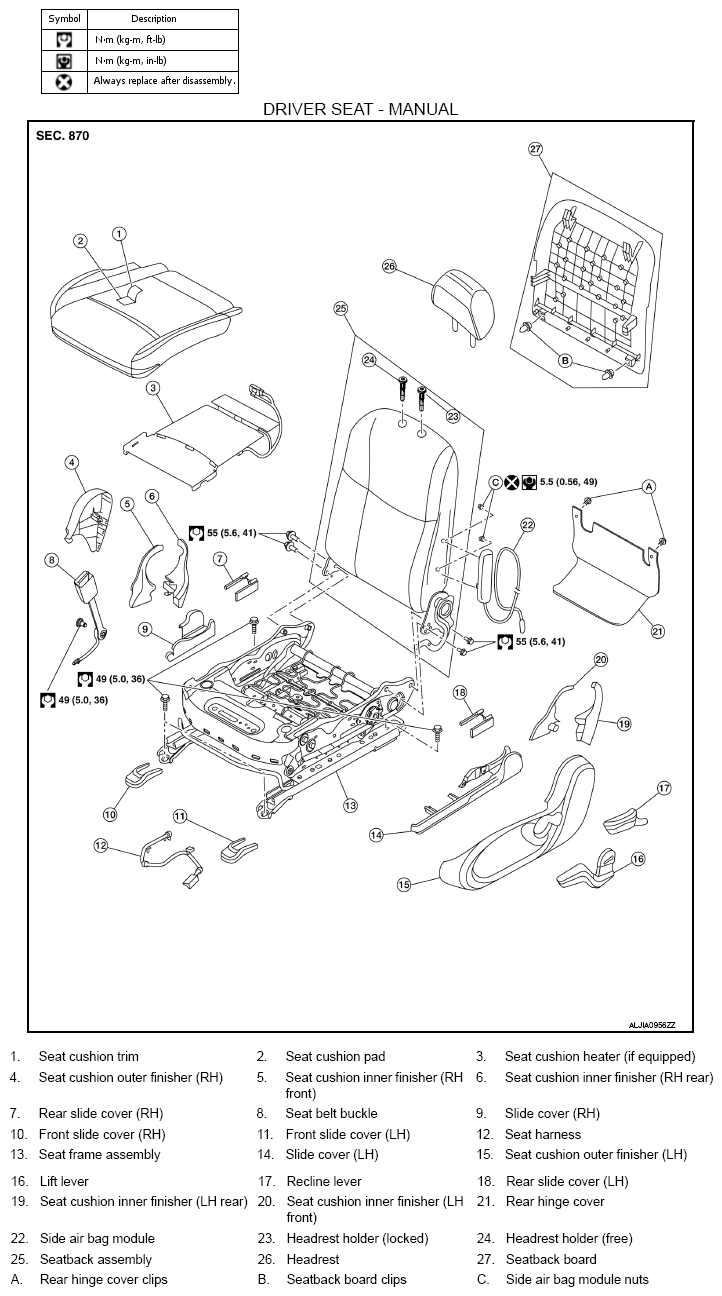

Fig 2: Exploded View Of Front Manual Driver Seat With Torque Specifications
G09141766Courtesy of NISSAN NORTH AMERICA, INC.
