Work Procedure (Preparation)

Perform self-diagnosis of the ITS control unit.

Is any DTC detected?

Except "U1308": Perform diagnosis on the detected DTC and repair or replace the applicable item. Refer to "DTC INDEX ".

"U1308" or no DTC: GO TO 2.

1. Perform pre-inspection for diagnosis. Refer to "INSPECTION PROCEDURE ".
2. Adjust the tire pressure to the specified pressure value.
3. Maintain no-load in vehicle.
4. Check if coolant and engine oil are filled up to correct level and fuel tank is full.
5. Situate vehicle where the camera is exposed at an atmosphere temperature between 0°C (32°F) and 30°C (86°F)
6. Move the shift selector to P (Park) and release the parking brake.
7. Clean the rear view camera.

   : GO TO 3.

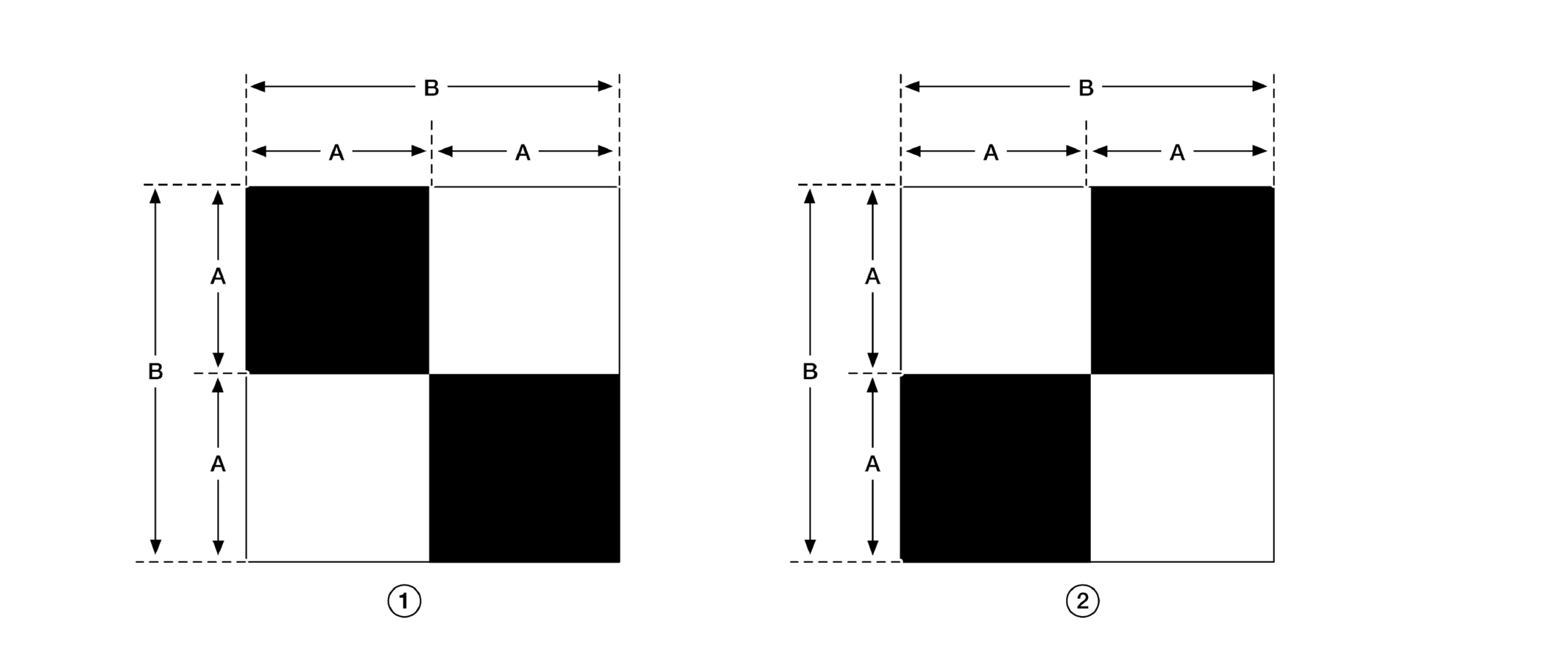

Prepare the calibration target mark according to the following figure:

Fig 1: Identifying Calibration Target Mark Dimensions

Courtesy of NISSAN NORTH AMERICA, INC.

(1): Left and right targets

(2): Center target

(A): Side of the black or white area = 200 mm (7.87 in)

(B): Side of the square target = 400 mm (15.75 in)

: Refer to "WORK PROCEDURE (TARGET SETTING) ".
