Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the push-button ignition switch (1) fixing pawl using a remover tool (A), and then remove push-button ignition switch.

CAUTION: Always apply a protective tape (B) on instrument panel for protection.

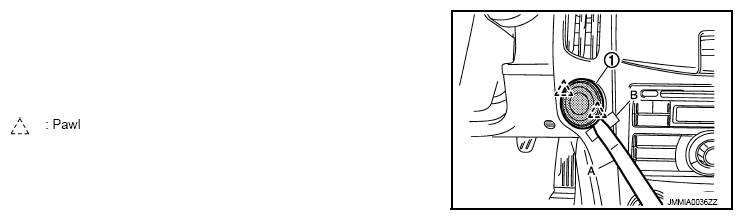

Fig 1: Disconnecting Push-Button Ignition Switch Fixing Pawl Using Remover Tool
G08678605Courtesy of NISSAN NORTH AMERICA, INC.
