System - Engine Mechanical&Other

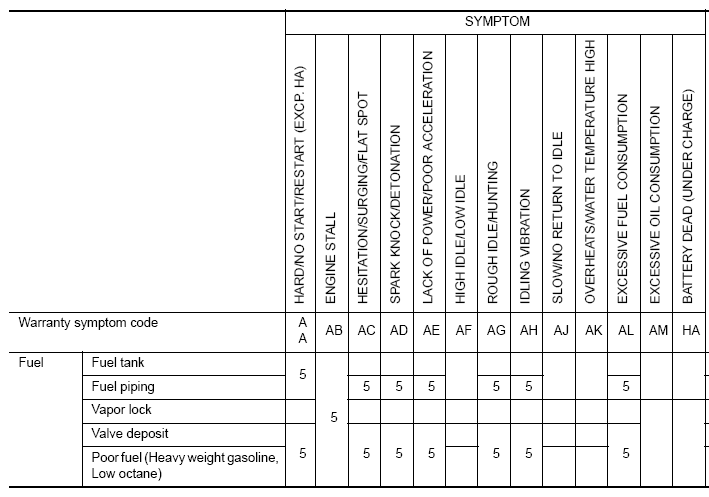

Fig 1: Warranty Symptom Code Chart (1 Of 3)
G08989376Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Warranty Symptom Code Chart (2 Of 3)
G08989377Courtesy of NISSAN NORTH AMERICA, INC.

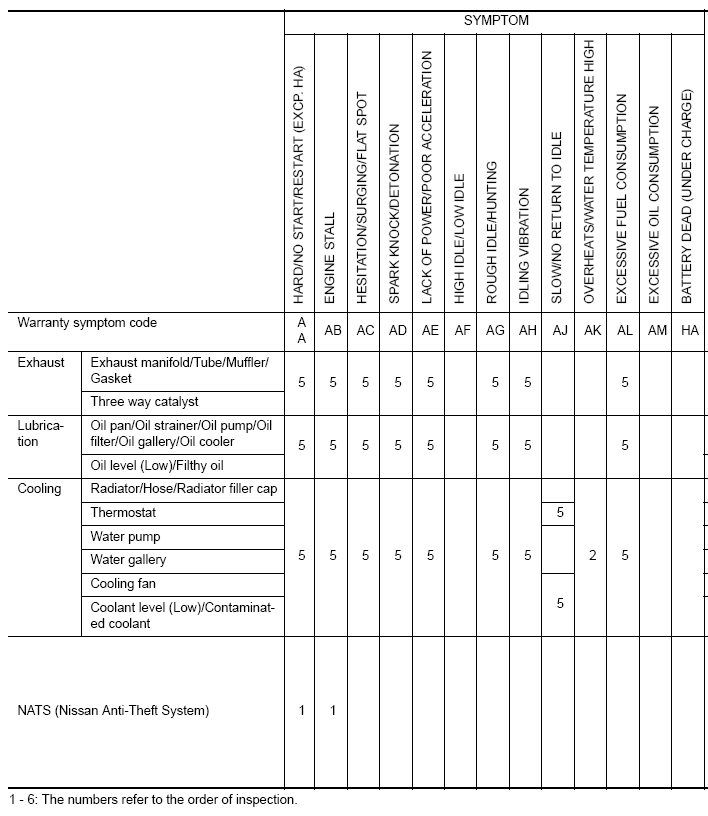

Fig 3: Warranty Symptom Code Chart (3 Of 3)
G08989378Courtesy of NISSAN NORTH AMERICA, INC.
