Connector End Views

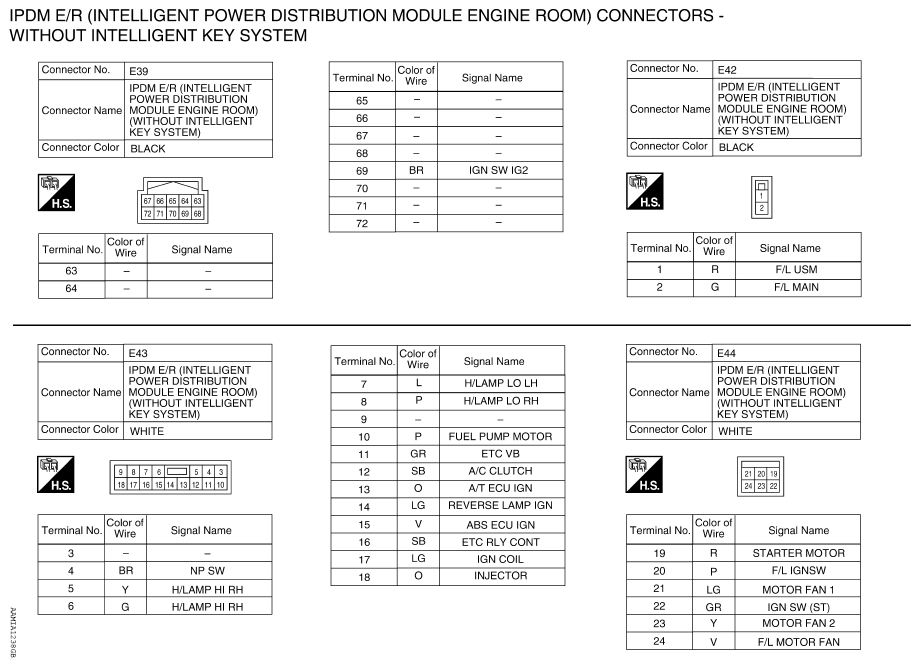

Fig 1: Intelligent Power Distribution Module Engine Room Connector End Views - Without Intelligent Key System (1 Of 2)
G08991762Courtesy of NISSAN NORTH AMERICA, INC.

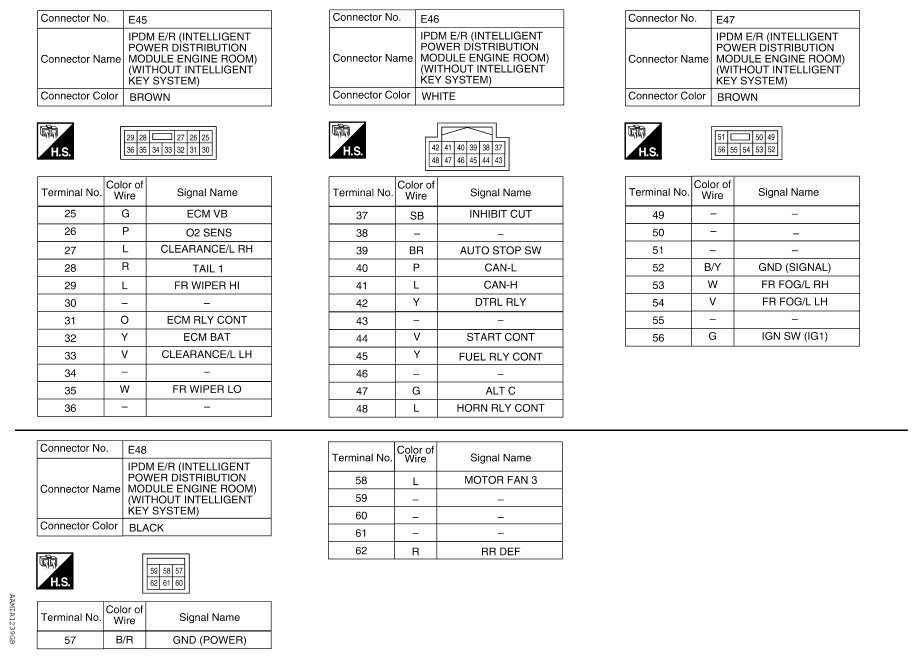

Fig 2: Intelligent Power Distribution Module Engine Room Connector End Views - Without Intelligent Key System (2 Of 2)
G08991763Courtesy of NISSAN NORTH AMERICA, INC.
