Connector End Views

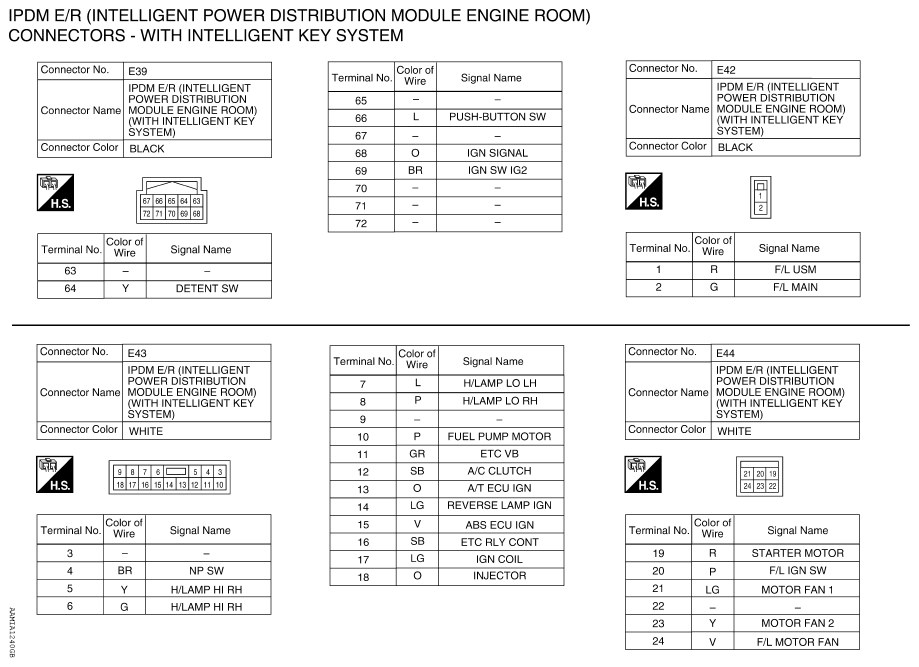

Fig 1: Intelligent Power Distribution Module Engine Room Connector End Views (1 Of 2)
G08991745Courtesy of NISSAN NORTH AMERICA, INC.

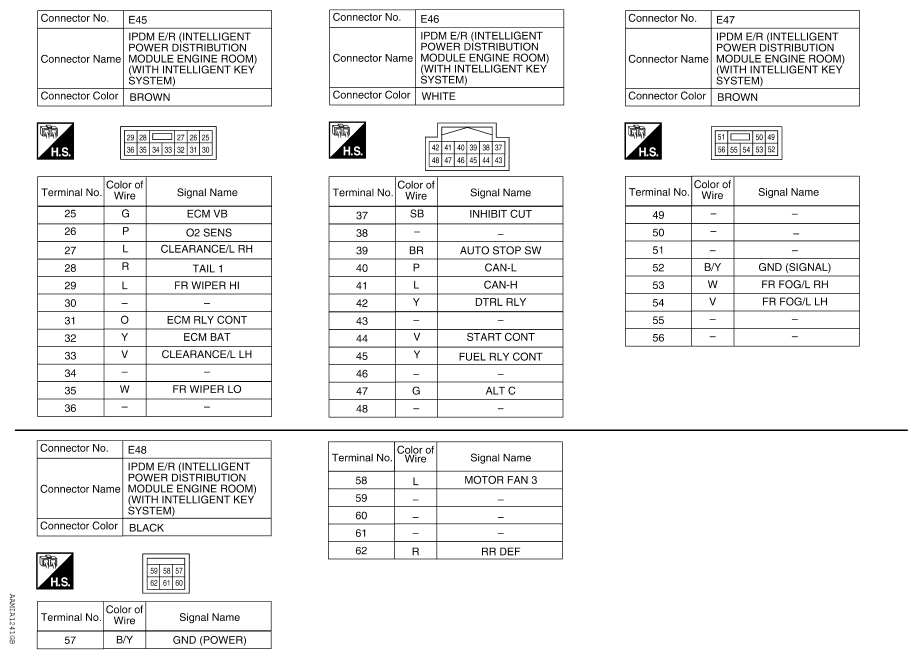

Fig 2: Intelligent Power Distribution Module Engine Room Connector End Views (2 Of 2)
G08991746Courtesy of NISSAN NORTH AMERICA, INC.
